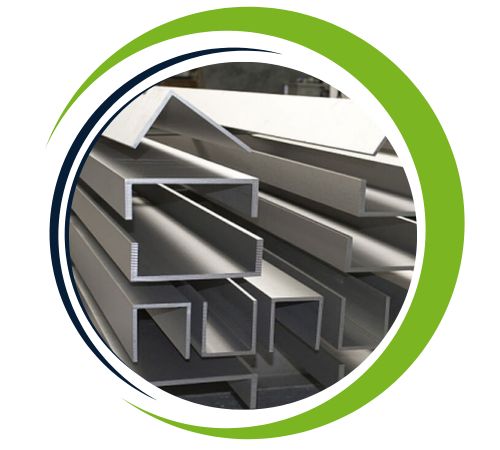

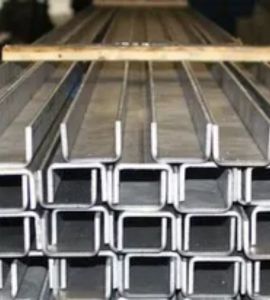

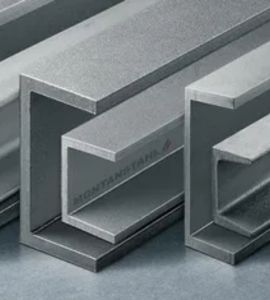

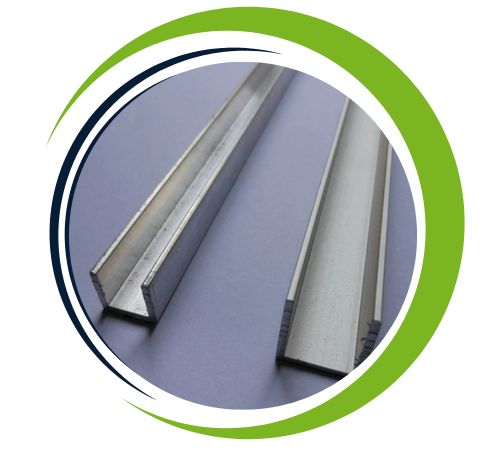

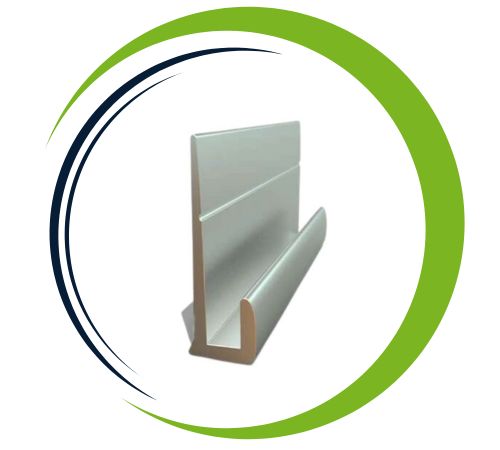

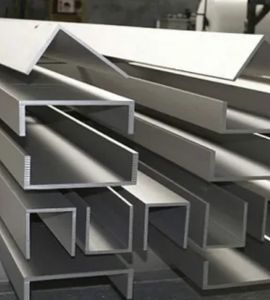

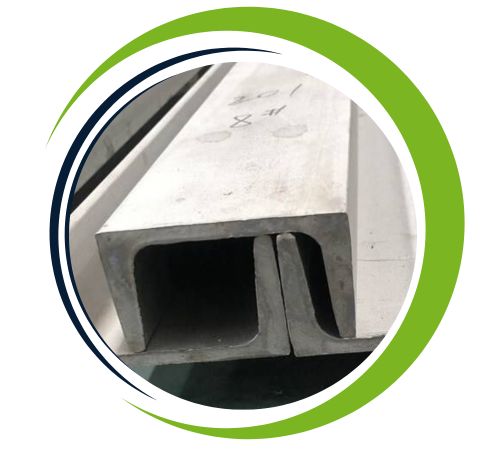

Daksh Sheets and Plates is a well-respected manufacturer and supplier of Aluminium 6061 Channels based in Delhi, India. We pride ourselves on providing high-strength, corrosion-resistant structural aluminium products that cater to both industrial and architectural needs. Aluminium 6061 is a heat-treatable alloy celebrated for its impressive mechanical properties, weldability, and lightweight strength. Our 6061 aluminium channels come in a variety of dimensions and profiles, making them perfect for structural framing, supports, and load-bearing assemblies. With a strong commitment to quality, precision, and timely delivery, Daksh serves sectors like aerospace, construction, marine, transportation, and general engineering throughout India and beyond.
Aluminium 6061 is an aluminium-magnesium-silicon alloy that typically contains about 0.4–0.8% silicon, 0.8–1.2% magnesium, 0.15–0.4% copper, and 0.04–0.35% chromium, along with iron and trace elements. This alloy boasts a tensile strength of 260–310 MPa and a yield strength of around 240 MPa, along with excellent corrosion resistance. It can be heat-treated and strengthened through tempering, commonly referred to as T6. Additionally, it offers outstanding machinability, formability, and weldability, making it one of the most versatile aluminium alloys for structural applications, performing well in both indoor and outdoor settings.
| Specifications | : | ASTM B308 / ASME B308 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Aluminium 6061 Angle | : | 5mm to 9mm |
| Aluminium 6061 Channel | : | 40mm*20mm~300mm*300mm |
| Aluminium 6061 Beam | : | 3″ thru 12.31″ |
| Aluminium 6061 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | Si | Fe | Cu | Zn | Mn | Mg | Ti | Cr | Al | Others(Total) |
| Aluminium | 0.40 – 0.80 | 0.70 max | 0.15-0.40 | 0.25 max | 0.15 | 0.8-1.2 | 0.15 max | 0.04-0.35 | Balance | 0.15 max |
| Temper | Tensile | Hardness | ||||
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T6, T651 | 45 | 310 | 21 | 145 | 25 | 65 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Aluminium 6061 Channels offer a range of benefits, including excellent corrosion resistance, making them ideal for outdoor and marine environments. With a high strength-to-weight ratio, they provide robust performance while remaining lightweight, reducing transportation and handling costs. This alloy is highly versatile, offering excellent machinability, weldability, and formability. Aluminium 6061 also has good thermal and electrical conductivity, making it suitable for a variety of industrial applications. Additionally, it can be anodized for enhanced surface protection and aesthetic appeal, making it an ideal choice for structural and architectural projects.
Yes, we offer custom sizes for Aluminium 6061 Channel to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
Aluminium 6061 Channels are incredibly popular for structural framing, machine bases, equipment supports, and architectural trims, thanks to their impressive strength-to-weight ratio and resistance to corrosion. You’ll find them in a variety of applications, including automotive frames, aerospace components, marine structures, truck trailers, scaffolding, and rail systems. In the construction industry, they play a vital role as load-bearing members, window frames, and more, proving their versatility and reliability across numerous projects.
