Aluminium Bronze Circle

Based in Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of premium aluminium bronze circles. Daksh is well-known for providing precisely engineered non-ferrous metal products, with a focus on creating circles that satisfy exacting industrial requirements. Our aluminium bronze circles are prized for their exceptional durability, strength, and resistance to corrosion, which makes them perfect for demanding applications. Daksh serves a variety of industries, including heavy engineering, chemical, aerospace, and marine, with an emphasis on quality, customisation, and timely delivery. We gain trust both domestically and abroad by guaranteeing reliable performance and a long service life for every product delivery.

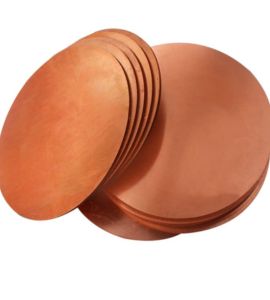

Aluminium Bronze Circle

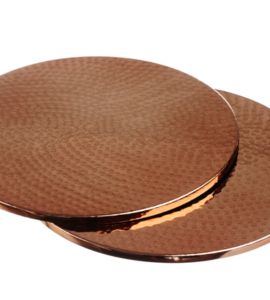

Circle Aluminium Bronze

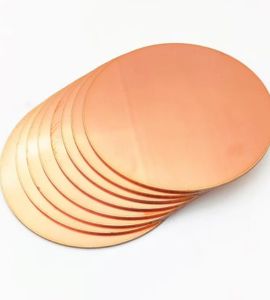

Aluminium Bronze Industrial Circles

Aluminium Bronze Circle Dealer in Hyderabad , Circle Aluminium Bronze Supplier in Hyderabad , Aluminium Bronze CR Circles Manufacturer in Hyderabad , Aluminium Bronze HR Circles Stockist, Aluminium Bronze CR Circles Price List in India, Aluminium Bronze Hot Rolled Circles Supplier in Hyderabad , Aluminium Bronze Cold Rolled Circle in India, Aluminium Bronze Hot Rolled Circle Supplier in India

For increased strength and resistance to corrosion, iron, nickel, and manganese are added to aluminium bronze circles, which normally contain 8–12% aluminium. Copper is the base metal. In chemical and marine environments, these alloys provide outstanding corrosion resistance, high tensile strength (usually 500–800 MPa), and outstanding wear resistance. Additionally, depending on the grade, the material exhibits good hardness (ranging from 100 to 250 HB) and thermal conductivity. Under extreme stress and high temperatures, aluminium bronze maintains its mechanical integrity and is renowned for its non-sparking qualities.

Aluminium Bronze Circle Specification

Standard	AMS 4640 , UNS C63000, UNS C63200, UNS C95800, UZ19AL6, UNS C95510, AMS 4880, C67000, C67500, or C67600
Thickness	1 mm To 100 mm
Diameter	Upto 2000 mm
Circle Diameter	3″ DIA up to 38″ DIA 1500 lbs max
Rings Thickness	1 Mm To 100 Mm
Ring	3″ OD up to 48″ OD Up to 900 lbs max
Types	Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles

Chemical Properties of Aluminium Bronze Circle

Element	Content (%)
Copper, Cu	82.7
Aluminium, Al	12.5-13.5
Iron, Fe	3.5-5.0
Manganese, Mn	≤2.0
Other	≤0.5

Mechanical Properties of Aluminium Bronze Circle

Properties	Metric	Imperial
Hardness, Rockwell C	27	27
Tensile strength (M30 and O61 tempers)	690 MPa	100000 psi
Yield strength (M30 and O61 tempers)	380 MPa	55100 psi
Elongation at break (in 50 mm, 1% reduction in area)	1.00%	1.00%
Elastic modulus	117 GPa	17000 ksi
Compressive yield strength (at permanent set of 0.1%)	450 MPa	65300 psi
Compressive yield strength (at permanent set of 1%)	880 MPa	128000 psi
Poisson’s ratio	0.34	0.34
Charpy impact (@ 18.0 – 100°C/ -0.400 – 212°F, keyhole)	3.00 J	2.21 ft-lb
Izod impact (@ 18.0 – 100°C/ -0.400 – 212°F)	3.00 J	2.21 ft-lb
Fatigue strength (@# of cycles 1.00e+8, M30 temper)	460 MPa	66700 psi
Machinability (UNS C36000 (free-cutting brass) = 100)	20	20
Shear modulus	42.3 GPa	6140 ksi

Aluminium Bronze Circle Distributor in India, Aluminium Bronze CR Circle Supplier in Hyderabad ,Aluminium Bronze Circle Supplier in Hyderabad , Stockist of Aluminium Bronze Circle in India, Aluminium Bronze Circle Supplier in India, Aluminium Bronze Circle Price List in India, Aluminium Bronze Supplier in India,Aluminium Bronze Circle Exporter in Hyderabad , Aluminium Bronze Circle Exporter in India,316L Aluminium Bronze Cold Rolled Circle Exporter in Hyderabad

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium Bronze Circle Manufacturer and Exporter in Hyderabad , India

Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Bronze Circles Distributor in India, Aluminium Bronze Forged Circle Exporter in Hyderabad , Aluminium Bronze CR Circles Exporter in India, Aluminium Bronze Large Diameter Circle Manufacturer in Hyderabad , Aluminium Bronze Plazma Cut Circle Price List in Hyderabad , Aluminium Bronze Big Size Circle Distributor in Hyderabad , Aluminium Bronze Circle Cut Machined Circle Exporter in India

Types of Aluminium Bronze Circle

Aluminium Bronze Circles in Hyderabad , Aluminium Bronze HR Circle Stockist in Hyderabad , Aluminium Bronze Circles Supplier in Hyderabad , Aluminium Bronze Industrial Circles Exporter in India, Aluminium Bronze HR Circles Price List in Hyderabad , 316L Stainless Steel Cut Machined Circle in Hyderabad , Aluminium Bronze CR Circles Supplier in Hyderabad , Aluminium Bronze Circles Distributor in India, Aluminium Bronze Circles Supplier in Hyderabad

Are Custom Sizes Available for Aluminium Bronze Circle?

Yes, we offer custom sizes for Aluminium Bronze Circle to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
