Aluminium Sheets and Plates

In Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of high-quality aluminium sheets and plates. We serve a variety of industries, including automotive, aerospace, construction, and packaging, and are renowned for producing precision-engineered, high-quality aluminium products. To accommodate a range of application requirements, our aluminium sheets and plates come in a variety of grades, thicknesses, and finishes. Daksh makes sure every product satisfies international quality standards by emphasising innovation, durability, and customer satisfaction. We take great satisfaction in offering our customers in India and abroad prompt delivery, affordable prices, and individualised attention.

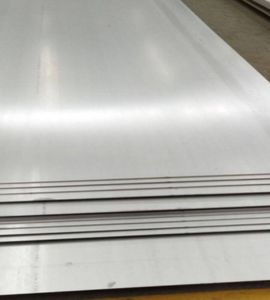

Aluminium Cold Rolled Plates

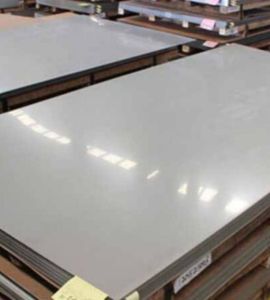

Aluminium Hot Rolled Plates

Aluminium Shim Sheets

Aluminium Sheets Dealer in Hyderabad , Aluminium Hot Rolled (HR) Sheet & Plates Supplier in Hyderabad , Aluminium Sheets in Hyderabad , Aluminium Plates Size Chart, Aluminium Sheet Price in India, Aluminium Cold Rolled (CR) Sheet Supplier in Hyderabad , Aluminium Sheet Stockist in India, Aluminium Sheets and Plates Exporter in India, Aluminium Sheet Stockist in Hyderabad , Aluminium Plates Supplier in India

The majority of aluminium (up to 99%) in sheets and plates is alloyed with silicon, magnesium, manganese, or copper to increase strength and resistance to corrosion. These products have a high strength-to-weight ratio, good weldability, and excellent machinability. Grade-specific mechanical properties range from 125 to 400 MPa in tensile strength and up to 20% in elongation. Aluminium sheets and plates are perfect for structural, industrial, and decorative applications because they are strong, lightweight, and have high electrical and thermal conductivity.

Aluminium Sheet and Plates Specification

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Aluminium Sheets Price in India, Aluminium Hot Rolled Weight Chart, Aluminium Cold Rolled Supplier in Hyderabad , Stockist of Aluminium Cold Rolled Sheets in India, Aluminium Perforated Sheet Supplier in India, Aluminium Perforated Plates Price List in Hyderabad , Aluminium Perforated Plates Supplier in India, Aluminium Chequered Plates Exporter in Hyderabad , Aluminium Polished Plates Exporter in India, Aluminium Perforated Plates Exporter in Hyderabad , Aluminium Sheet and Plate in India

Aluminium Sheet and Plates Chemical Composition

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Aluminium Sheet and Plates Mechanical Properties

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium Sheet and Plates Manufacturer and Exporter in Hyderabad , India

Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Clad Sheets Distributor in India, Aluminium Perforated Plates Supplier in Hyderabad , Aluminium Perforated Sheet Weight Chart, Aluminium Plate Exporter in India, Aluminium Polished Sheets Manufacturer in Hyderabad , Aluminium Shim Sheet and Plate Price List in Hyderabad , Aluminium Chequered Plates Sizes in mm, Aluminium Hot Rolled Plate Distributor in Hyderabad , Aluminium Sheets and Plates India

Types of Aluminium Sheet and Plates

Aluminium Plates Manufacturer in Hyderabad , Aluminium Plates & Sheets in Hyderabad , Aluminium Mirror Finish Plates Supplier in Hyderabad , Aluminium Polished Plates Exporter in India, Aluminium Chequered Plates Price List in Hyderabad , Aluminium Cold Rolled Plate Distributor in Hyderabad , Aluminium Clad Plates and Sheets Supplier in Hyderabad , Aluminium Sheet and Plate Distributor in India, Aluminium Perforated Plate Sizes in mm

Are Custom Sizes Available for Aluminium Sheet and Plates?

Yes, we offer custom sizes for Aluminium Sheet and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Aluminium Sheet and Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Aluminium Sheet and Plates Sizes

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Application Industry of Aluminium Sheet and Plates

Because they are strong, lightweight, and resistant to corrosion, aluminium sheets and plates are used extensively in many different industries. They are employed in the production of railway components, automobile bodies, and aeroplanes in the transportation sector. They are used in the construction industry for structural panels, cladding, roofing, and facades. Additionally, they are used in consumer appliances, industrial machinery, marine applications, and electrical enclosures. Aluminium sheets provide sanitary and long-lasting packaging options. They are also appropriate for architectural décor and signage due to their attractive finish. They are a preferred material in many industries due to their long service life, versatility, and recyclability.
