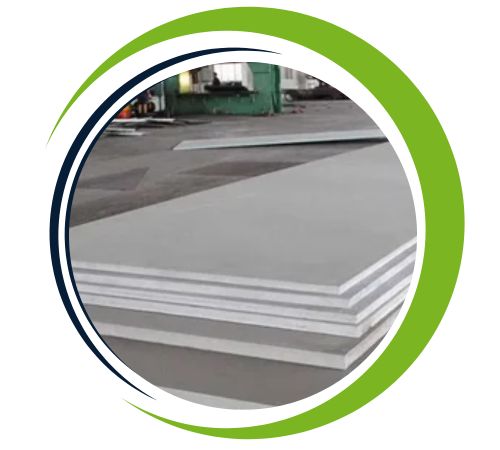

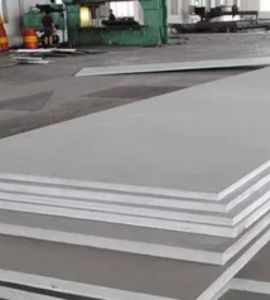

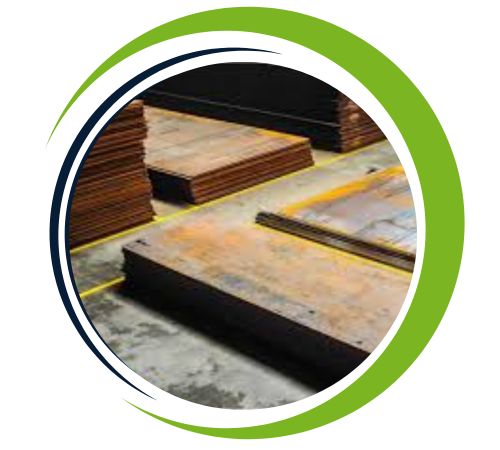

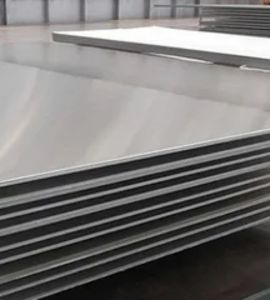

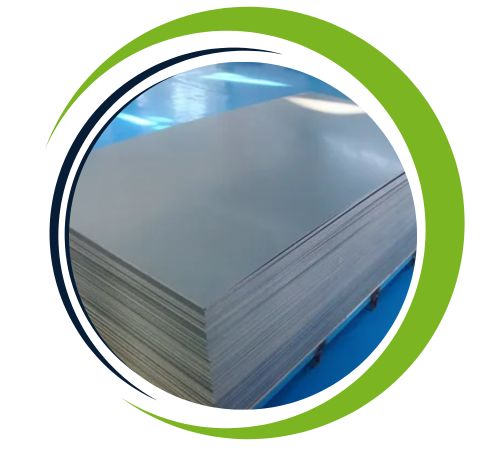

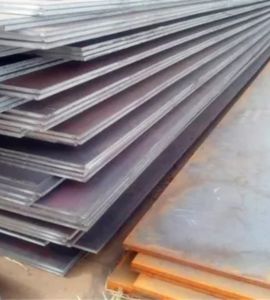

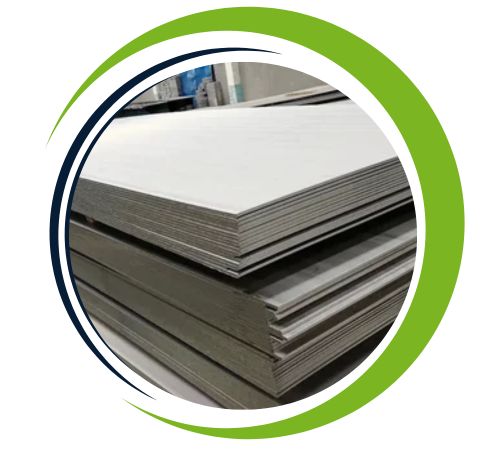

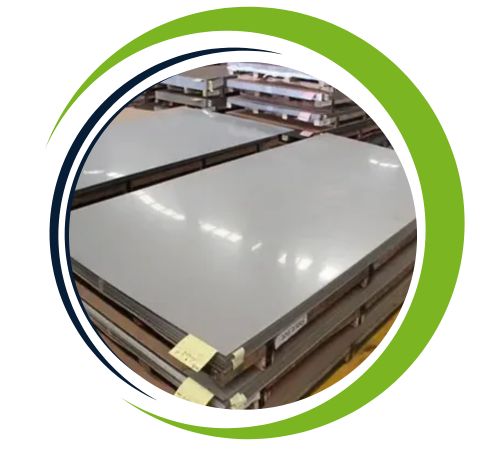

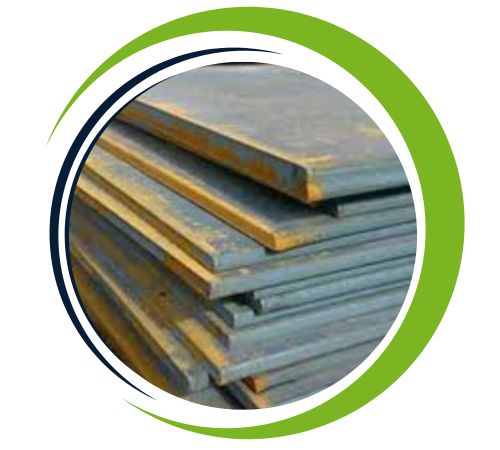

Daksh Sheets and Plates is a well-respected manufacturer and supplier based in Delhi, India, specializing in ASME SA 387 Grade 22 Class 1 & 2 Sheets and Plates. These alloy steel plates are engineered to withstand high temperatures and pressures, making them ideal for critical applications like pressure vessels and boilers. Grade 22, which is a chromium-molybdenum steel, boasts impressive strength, oxidation resistance, and thermal stability. Class 1 is known for its excellent formability and ductility, while Class 2 offers superior tensile strength. We provide these plates in various sizes, catering to industries such as power generation, oil refining, and chemical processing.
ASME SA 387 Grade 22 steel contains around 1.90–2.60% chromium and 0.87–1.13% molybdenum, along with carefully controlled levels of carbon, manganese, silicon, phosphorus, and sulfur. These elements work together to boost its oxidation resistance and enhance mechanical strength at high temperatures. Class 1 plates have a minimum yield strength of 275 MPa and a tensile strength ranging from 415 to 585 MPa, while Class 2 offers a higher yield strength of 310 MPa and tensile strength between 450 and 620 MPa. Both classes undergo normalization and tempering to improve creep resistance and durability during continuous thermal and pressure cycling.
Width: 1000mm-4500mm
Thickness: 5mm-150mm
Length: 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Process of Manufacturing : Hot-Rolled (HR)
| BS | EN | ASTM/ASME | DIN |
| 622-515B | 10 CRMO 910 | A387 / SA 387 | 10 CRMO 910 |
| Mn | P | S | Si | Cr | Mo | |
| 0.04 – 0.15 | 0.25 – 0.66 | 0.035 | 0.035 | 0.5 max | 1.88 – 2.62 | 0.85 – 1.15 |
| A387 / SA387 Grade 22 | Class 1 | Class 2 |
| Tensile Strength (ksi) | 60-85 | 75-100 |
| Tensile Strength (MPa) | 415-585 | 515-690 |
| Yield Strength (ksi) | 30 | 45 |
| Yield Strength (MPa) | 205 | 310 |
| Elongation in 200mm (%) | – | – |
| Elongation in 50mm (%) | 18 | 18 |
| Reduction of area in % | 45 | 45 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
ASME SA 387 Grade 22 Class 1 and 2 sheets and plates offer several advantages, including excellent high-temperature strength and resistance to oxidation and corrosion, making them ideal for use in power plants, chemical processing, and pressure vessel fabrication. Their chromium-molybdenum alloy composition enhances their durability and ability to withstand thermal stress. These materials also provide outstanding weldability and formability, ensuring ease of fabrication. Additionally, they maintain structural integrity under extreme conditions, offering long-lasting performance and reliability in demanding applications where high pressure and temperature are prevalent.
Yes, we offer custom sizes for ASME SA 387 Grade 22 Class 1 & 2 Sheet and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
ASME SA 387 Grade 22 Class 1 & 2 Sheets and Plates find extensive use in the production of pressure vessels, heat exchangers, boilers, and reactor components in industries where materials face high temperatures and aggressive environments. These plates are particularly well-suited for thermal power plants, petroleum refineries, and chemical processing facilities. Class 1 is typically chosen for applications that require greater flexibility in forming, while Class 2 is preferred for situations demanding enhanced mechanical strength. The outstanding performance of these plates makes them a reliable choice for critical industrial applications.
