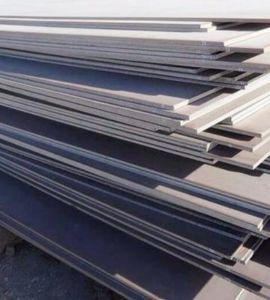

Located in Hyderabad, India, Daksh Sheets and Plates is a well-known producer and supplier of high-quality metal products that serve a range of industrial sectors. The C50 High Carbon Steel Plate is one of our specialty products; it is designed to perform well in demanding conditions. C50 steel is frequently utilized in applications that call for durability under extreme stress because of its exceptional strength, hardness, and resistance to wear. We continue to place a high priority on quality assurance and precision manufacturing, making sure every product satisfies international standards. Daksh Sheets and Plates is a dependable partner for the engineering, automotive, and construction sectors.
About 0.50% carbon, 0.60–0.90% manganese, 0.10–0.35% silicon, and trace elements like phosphorus and sulfur are present in C50 High Carbon Steel Plates, which improve strength and resistance to wear. Depending on the treatment, these plates have a hardness range of 180–250 HB, a tensile strength of 650–1000 MPa, and a yield strength of 450–750 MPa. C50 steel is perfect for heat treatment procedures like quenching and tempering because of its exceptional durability and good machinability. It can function dependably in industrial applications with high loads and high wear thanks to its balance of mechanical strength and toughness.
| Thickness Range | 0.10 – 5.00 MM |
| Width Range | 5.00 – 1250 MM |
| Form | Can be supplied in Coil or Sheet form |
| Sheet Length (CTL) | 300 – 3000 MM |
| Edge | Mill edge or Sheared edge |
| Coil / Sheet Pallet Weight | Weight of each Coil or Sheet pallet can be customized as per customer’s need |
| Coil ID / OD | ID or OD of each Coil can be customized as per customer’s need |
| Packing | High-end export packing for sea or road travel, completely safe during transit. Duly oiled with anti-rust oil, wrapped in hessian cloth & high-density plastic sheets to prevent moisture. Further strapped with high tensile strips. For identification & tracing, non-erasable polyester stickers are placed on each material |
| Delivery Time | Dispatched within 10 days to 2 months, depends upon the required size |
| Some Applications | Auto components such as Washers, Clutch components, various types of Springs, Pen Clips, Hanger Clips, Cycle/Motor Chains, etc. |
Element |
C |
Si |
Mn |
P |
S |
Cr |
Cu |
Ni |
Content (%) |
0.47 – 0.55 |
0.17 – 0.37 |
0.50 – 0.80 |
0.03 |
0.03 |
0.15 |
0.25 |
0.30 |
GRADE |
Tensile Strength min |
Yield Strength min |
Elongation min. |
contraction min |
impact min |
Hardness Max |
|
σb/M Pa |
σs/M Pa |
δ5/% |
ψ/% |
Akv/J |
Without heating |
annealing |
|
C50 |
630 |
375 |
14 |
40 |
31 |
241 |
207 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
C50 High Carbon Steel Plates offer numerous advantages, including superior strength and hardness, making them ideal for heavy-duty industrial applications. Their high tensile and yield strength ensure excellent load-bearing capacity, while their wear resistance provides durability in demanding environments. C50 plates also offer good machinability, allowing for easy fabrication and customization for specific applications. The steel’s exceptional toughness and ability to withstand high-stress conditions make it perfect for use in components like gears, shafts, and machinery. Additionally, C50 High Carbon Steel Plates are cost-effective, providing long-lasting performance and reliability.
Yes, we offer custom sizes for C50 High Carbon Steel Sheet and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| SAE / AISI – American | SAE 1050 |
| DIN – Germany | C50 / CK50 |
| EN – English / BS – British | – |
| JIS – Japanese | S50C |
| UNI – Italy | C50 |
C50 High Carbon Steel Plates are extensively used across industries that demand superior strength and resistance to wear. These plates are ideal for manufacturing gears, shafts, axles, and cutting tools that undergo significant mechanical stress. In the automotive industry, they are used for heavy-duty parts requiring both toughness and precision. Tooling industries utilize C50 steel for dies, molds, and industrial tools due to its excellent machinability and heat-treatable properties. The material also finds application in construction machinery, pressure vessels, and engineering structures, providing long-term durability and high performance in rigorous working conditions.
