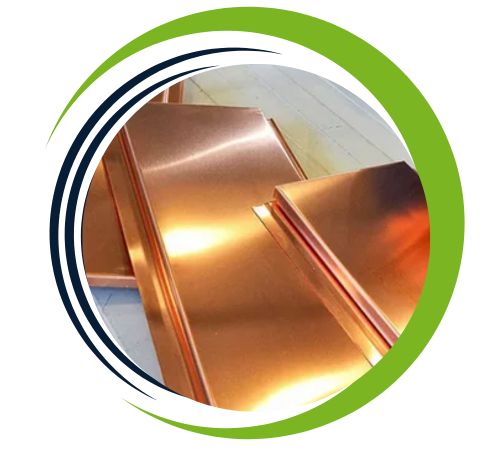

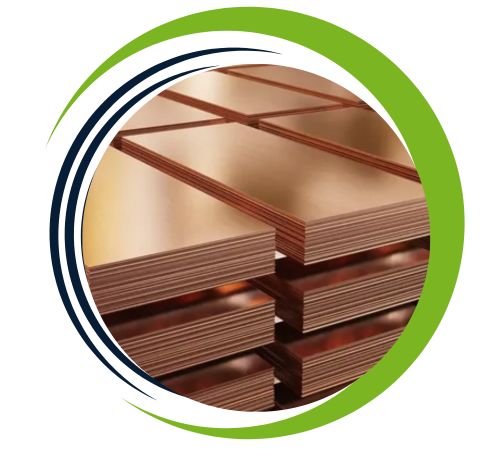

Daksh Sheets and Plates, a reputable manufacturer and supplier of premium metal sheets and plates with headquarters in Hyderabad, India, offers dependable and long-lasting solutions for a range of industrial sectors. We provide a variety of materials, such as Copper Nickel 70/30 Sheets and Plates, with a focus on accuracy and performance. This high-end alloy is renowned for its remarkable mechanical strength, corrosion resistance, and thermal conductivity, which make it a perfect fit for industrial, chemical, and marine settings. At Daksh, we’re dedicated to offering tailored, reasonably priced, and timely solutions that satisfy both client demands and international standards.
70% copper and 30% nickel make up Copper Nickel 70/30 Sheets and Plates, with trace amounts of iron and manganese added for increased corrosion resistance and mechanical strength. Excellent resistance to biofouling, stress corrosion cracking, and seawater corrosion is offered by the alloy. Tensile strength of approximately 500–550 MPa, yield strength of up to 220 MPa, and elongation of 30–40% are important mechanical characteristics. Additionally, the material is well-suited for demanding environments due to its high resistance to pitting and crevice corrosion, excellent formability, weldability, and superior thermal and electrical conductivity.
| Specifications | : | ASTM / ASME SB 122 |
| Size | : | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | : | 0.1mm to 12 mm Thk |

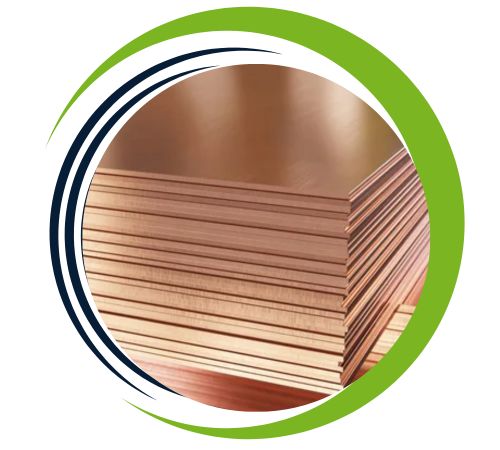

| Form | : | Plain Sheet, Shim Sheet |

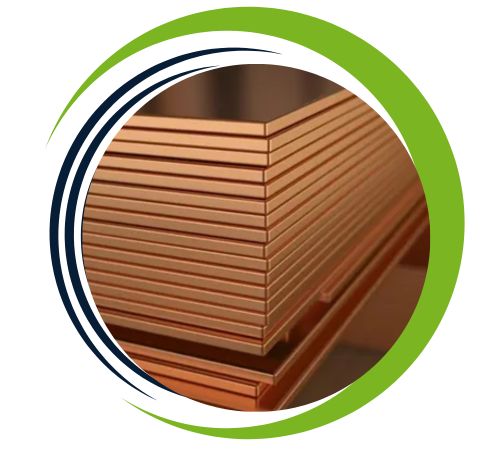

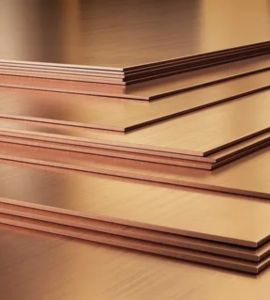

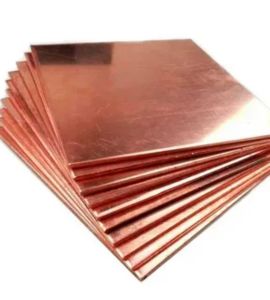

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cupro Nickel 70/30 | 65 min | 1.0 max | 0.05 max | 29-33 max | 0.4-1.0 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Cupro Nickel 70/30 | 2.0882 | C71500 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Copper Nickel 70/30 Sheets and Plates offer excellent corrosion resistance, particularly in marine and industrial environments, making them ideal for seawater applications. Their high strength and excellent resistance to biofouling ensure longevity and reliability in harsh conditions. These materials also exhibit good thermal conductivity, making them suitable for heat exchange applications. The 70/30 alloy provides outstanding weldability, formability, and machinability, allowing easy customization and fabrication. Copper Nickel 70/30 Sheets and Plates also offer resistance to pitting, crevice corrosion, and stress corrosion cracking, enhancing durability and performance in diverse industries.
Because of their exceptional resistance to corrosion and biofouling, copper nickel 70/30 sheets and plates are widely used in marine applications, especially for seawater piping, heat exchangers, condensers, and desalination equipment. They are used in shipbuilding for hulls and ballast systems, and offshore platforms depend on them for saltwater-exposed structural elements. Additionally, the alloy is preferred for parts exposed to corrosive environments in the automotive industry, power generation facilities, and chemical processing plants. It is also appropriate for complex fabrications and specially designed systems due to its exceptional formability and weldability.
