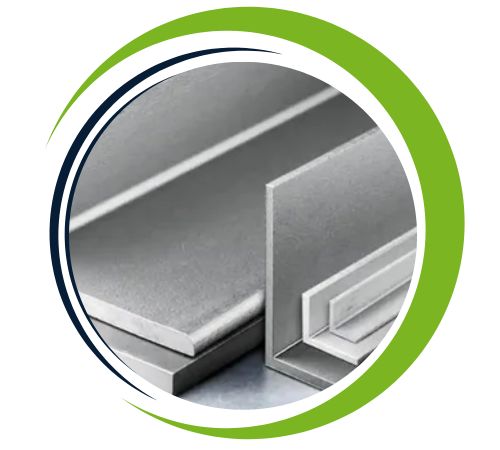

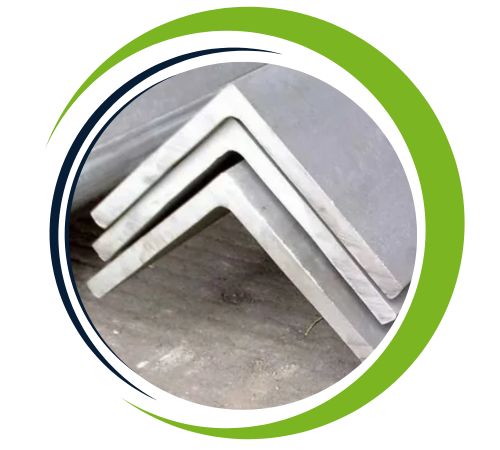

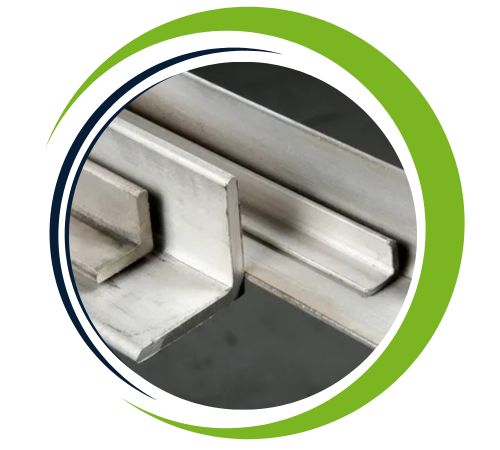

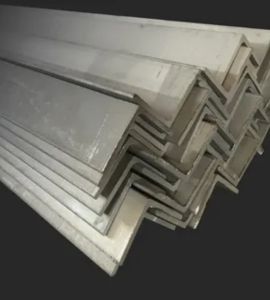

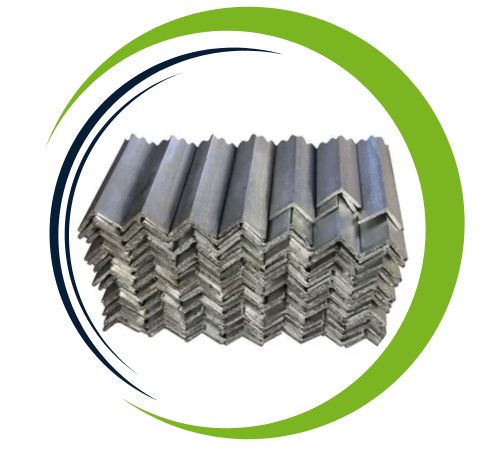

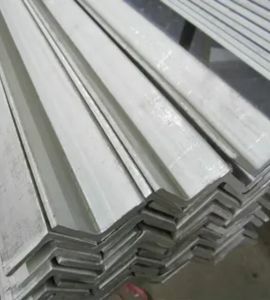

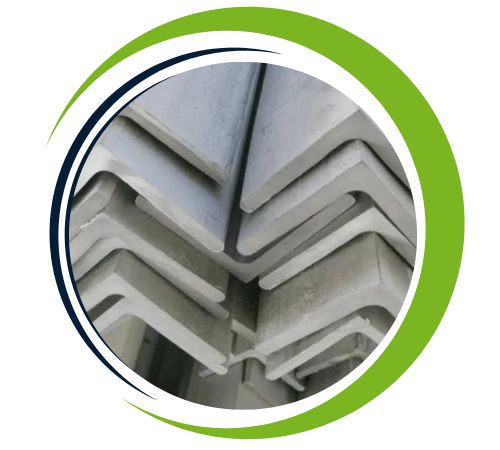

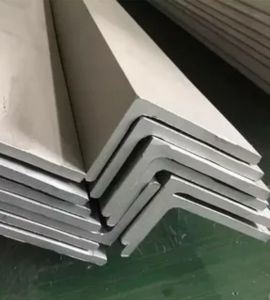

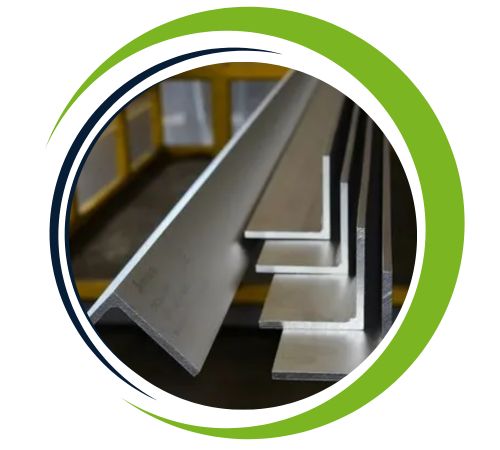

In Delhi, India, Daksh Sheets and Plates is a top producer and supplier of Duplex Steel S32205 Angles, providing high-end stainless steel goods renowned for their durability and ability to withstand corrosion. We serve a range of industrial sectors, including chemical processing, construction, marine, and oil and gas, and have a strong reputation for dependability and innovation. Our Duplex Steel Angles satisfy both Indian and international standards and are expertly engineered using cutting-edge manufacturing techniques. Daksh Sheets and Plates guarantees that customers receive strong and affordable solutions for demanding structural and load-bearing applications by offering custom dimensions and prompt delivery.
The composition of Duplex Steel S32205 Angles is roughly 22% chromium, 5–6.5% nickel, 3–3.5% molybdenum, and iron, with trace amounts of manganese and nitrogen. Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking is provided by this dual-phase microstructure. With a tensile strength of about 620 MPa, yield strength of about 450 MPa, and elongation of 25%, the material demonstrates high mechanical strength. For structural applications needing exceptional strength, durability, and toughness in harsh and corrosive environments, Duplex S32205 is the perfect material due to these qualities.
Specifications : ASTM A182 / ASME SA182
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 | 1.4462 | S31803 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Duplex Steel S32205 Angle to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
Industries needing high strength and resistance to corrosion frequently use Duplex Steel S32205 Angles. They are frequently used in desalination plants, chemical processing machinery, offshore oil rigs, marine structures, and structural supports in building. They are perfect for coastal and underwater applications because of their resistance to chloride-rich environments. These angles are also utilised in storage tanks, heat exchangers, bridges, and pressure vessels. For harsh and demanding environments where standard stainless steels may fail, Duplex S32205 Angles offer a dependable and affordable solution thanks to their exceptional weldability, formability, and fatigue resistance.
