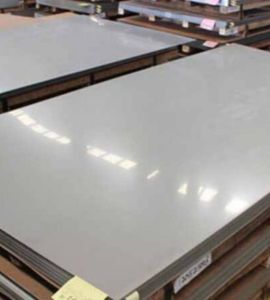

Located in Hyderabad, India, Daksh Sheets and Plates is a well-known producer and supplier of high-quality metal products that provide dependable solutions for a range of industrial applications. Duplex Steel 2205 Sheet and Plate, which is well-known for its remarkable strength, resistance to corrosion, and long-term durability, is one of our flagship products. These plates are the go-to option for industries like oil and gas, chemical processing, and the marine sector because they are designed to function well in demanding and hostile conditions. Daksh Sheets and Plates offers specialized, high-performance materials that satisfy exacting industry standards, with a strong emphasis on accuracy, quality, and prompt delivery.
About 22% chromium, 5–6.5% nickel, 3–3.5% molybdenum, and trace amounts of manganese, carbon, and nitrogen are present in Duplex Steel 2205, a nitrogen-enhanced duplex stainless steel. Excellent mechanical strength and superior resistance to corrosion, including pitting, crevice corrosion, and stress corrosion cracking, are conferred by this special dual-phase (austenitic-ferritic) structure. The alloy has a 450 MPa yield strength, a 620–860 MPa tensile strength, and a 25–30% elongation. Because of this, 2205 plates are ideal for uses requiring both high strength and resistance to corrosion, even in environments that are acidic and rich in chloride.
| 2205 Duplex Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
|---|---|
| Duplex 2205 Pipe Fittings size | Seamless 2205 Duplex Stainless Butt Weld Fittings: 1/2″ – 10″ Welded 2205 Stainless Steel Butt Weld Fittings: 1/2″ – 48″ |
| Specifications | ASTM A815 / ASME SA815 |
| Duplex 2205 Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Duplex 2205 Forged Fittings Thread | NPT, BSPT, BSPP |
| ASTM A815 Fittings Type | DN15-DN1200 |
| 2205 Duplex Pipe Fittings Types | Seamless / ERW / Welded / Fabricated Duplex 2205 Werkstoff 1.4462 Pipe Fittings |
| Fitting Duplex 2205 Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Avesta 2205 Pipe Fittings |
| Duplex 2205 Forged Fittings Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs 2205 Duplex 1.4462 Pipe Fittings Socket-weld end-3000/ 6000/ 9000lbs 2205 Duplex Stainless Steel Pipe Fittings |
| Fitting Duplex 2205 Size Range | 1/2″ NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Duplex 2205 F51 Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Key markets and industries for 22cr Fitting Duplex 2205 |
|
| Duplex 2205 Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees,Couplings, Reducers, Inserts, Unions, Caps, Nipples, Forged Pipe Fittings, Socket Weld & Threaded, 90° & 45° Elbows – Female-Female, Male-Male, Male-Female, Union, Nipples, Couplings, Plugs Fittings |
| 2205 Duplex Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA815 Material End |
|
| F51 2205 Duplex Pipe Fittings uses & application |
|
| 2205 Duplex Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian (NO CHINA) |
| Material Test Certificates (MTC) for Duplex 2205 Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
|---|---|---|---|---|---|---|---|---|---|
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Duplex Steel Sheet and Plates 2205 offer outstanding advantages, including high strength and superior corrosion resistance, particularly against pitting, crevice corrosion, and chloride stress corrosion cracking. Their balanced austenitic-ferritic structure ensures excellent durability and toughness, even in extreme conditions. These plates exhibit superior mechanical properties with high tensile and yield strength, allowing for thinner and lighter designs, reducing material costs. They are highly weldable and formable, making them versatile for various applications. Duplex 2205 is also a cost-effective alternative to higher-alloy steels, providing reliable performance in demanding industrial environments.
Yes, we offer custom sizes for Duplex Steel Sheet and Plates 2205 to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
|
STANDARD |
WERKSTOFF NR. |
UNS |
|---|---|---|
|
Duplex 2205 Plate |
1.4462 / 1.4462 |
UNS S31803 / UNS S32205 |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
| Surface finish | Thickness (in) | Width (in) |
|---|---|---|

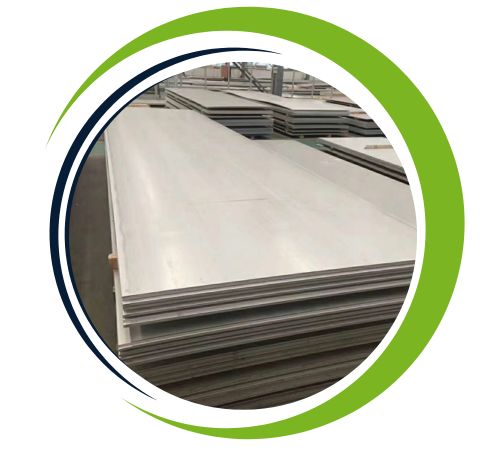

| 1 – Duplex 2205 Hot rolled, heat treated, pickled Plate & Sheet | .1000 – .3750 | max. 72 |
| 2R – Duplex 2205 Cold-rolled, bright-annealed Sheet & Plate | 0.002–0.06 | 0.118–25.551 |
| 2H – Duplex 2205 Work hardened Plate & Sheet | 0.002–0.06 | 0.118–24.803 |
| 2B – Duplex 2205 Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 10–24 | max. 72* |
| 2D – Duplex 2205 Cold rolled, heat treated, pickled Plate & Sheet | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Deco Rolled-On Mexinox only | 14–28 | max. 48 |

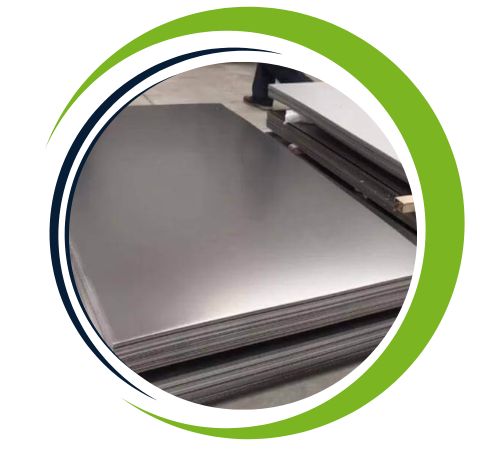

| Duplex 2205 Polished Plate & Sheet (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
Industries that demand high mechanical performance and resistance to aggressive media make extensive use of Duplex 2205 sheets and plates. They are utilized for pipelines, pressure vessels, and offshore platforms in the oil and gas industry. They are used in heat exchangers, storage tanks, and reactors in chemical processing. They are perfect for shipbuilding, desalination plants, and marine hardware because of their resistance to saltwater corrosion, which benefits the marine industry. Power plants, pulp and paper mills, and buildings subjected to corrosive environments are some additional uses. For demanding, high-risk environments, Duplex 2205 provides an affordable, long-lasting solution.
