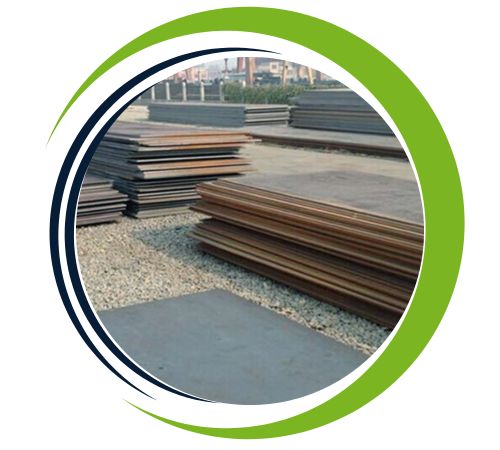

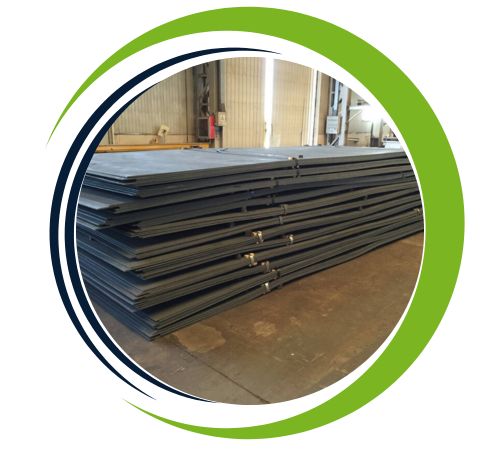

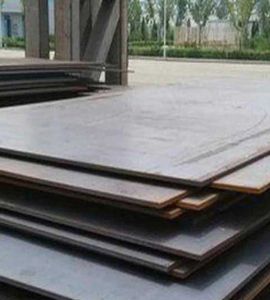

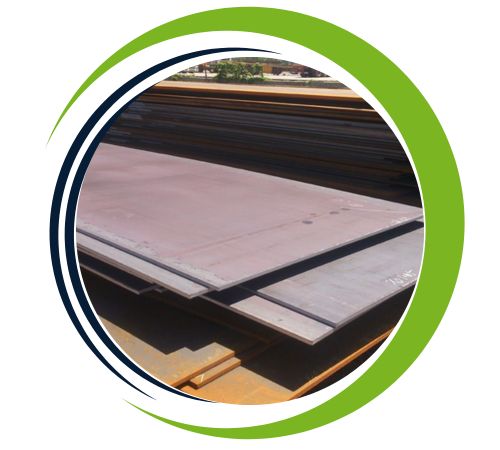

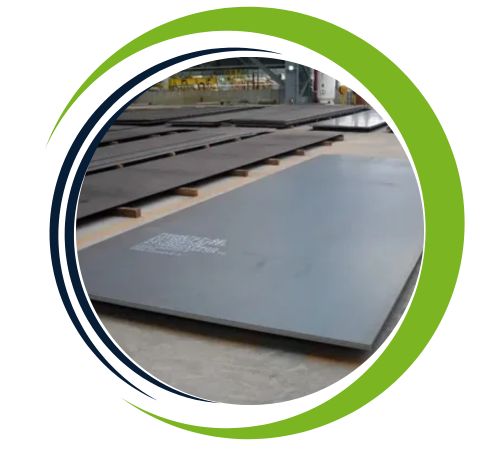

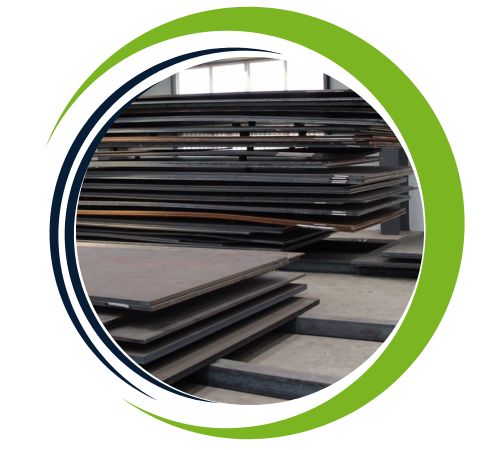

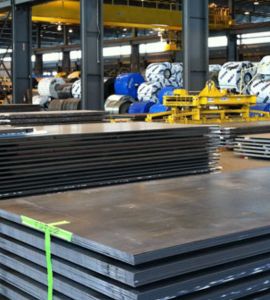

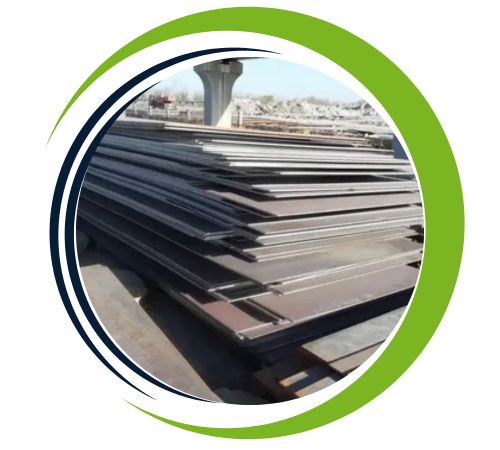

Based in Delhi, India, Daksh Sheets and Plates is a reputable producer and supplier of EN24 Sheets and Plates. Known for producing high-end alloy steel products, Daksh offers precisely engineered solutions to meet a variety of industrial demands. High-strength alloy steel EN24 is well-known for its exceptional mechanical qualities, toughness, and resistance to wear, which make it perfect for demanding applications. Daksh uses sophisticated production methods and stringent quality checks to guarantee constant quality. Daksh’s EN24 sheets and plates, which come in a variety of sizes, are extensively utilised in India’s engineering, automotive, aerospace, and defence industries.
Steel alloyed with nickel, chromium, and molybdenum is used to make EN24 sheets and plates. Carbon (0.36–0.44%), manganese (0.45–0.70%), silicon (0.10–0.35%), chromium (0.90–1.40%), nickel (1.30–1.80%), and molybdenum (0.20–0.35%) are typical compositions. These plates have good ductility, high toughness, and exceptional tensile strength (850–1000 MPa). EN24 is appropriate for parts needing high mechanical performance because it also offers good fatigue resistance and hardenability. Engineering parts subjected to high stress and impact are best suited for EN24 sheets and plates, which have a Brinell Hardness of up to 300 HB (in hardened condition).
| Thickness | from 3mm up to as thick as 150mm |
|---|---|
| Size | from 2000 x 1000mm up to 4000 x 2000mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | P | Mo | Mn | S | Cr | Si | Ni | |
| EN – 24 | .35 – .45 | .040 | .20 – .40 | .45 – .70 | .040 | .90 – 1.40 | .10 – .35 | 1.30 – 1.80 |
| Max Stress | 850-1000 n/mm2 | |
| Yield Stress | 680 n/mm2 Min | Up to 150mm LRS |
| 654 n/mm2 Min | 150 to 250mm LRS | |
| 0.2% Proof Stress | 665 n/mm2 Min | Up to 150mm LRS |
| 635 n/mm2 Min | 150 to 250mm LRS | |
| Elongation | 13% Min | (9% if cold drawn) |
| Impact KCV | 50 Joules Min | Up to 150mm LRS |
| 35 Joules Min | 150 to 250mm LRS | |
| Hardness | 248-302 HB |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| BS 970 1991 | BS 970 1955 EN | AISI/SAE | Werkstoff |
| 817M40 | EN24 | 4340 | 1.6582 |
Yes, we offer custom sizes for EN24 Sheet and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
In demanding engineering and industrial applications where high strength and toughness are necessary, EN24 Sheets and Plates are frequently utilised. They are employed in the production of drive shafts, axles, gears, and crankshafts in the automotive sector. The aerospace and defence industries depend on EN24 for high-performance components and structural elements that are subjected to impact and stress. Because of their mechanical strength and resistance to wear, these plates are also utilised in heavy machinery, mining equipment, and tool manufacturing. EN24 is a popular option for precision-engineered parts in crucial operations due to its exceptional machinability, fatigue resistance, and versatility.
