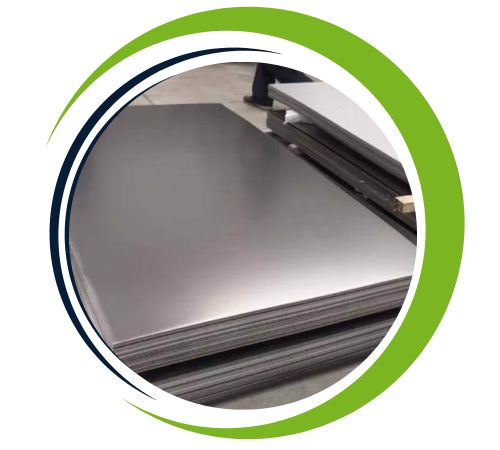

A top producer and supplier of Hastelloy B3 Sheets and Plates in Delhi, India, Daksh Sheets and Plates is renowned for providing industries all over the world with high-performance, corrosion-resistant alloys. We provide premium Hastelloy B3 products made for harsh chemical processing conditions with a strong dedication to accuracy and quality. Our cutting-edge production facilities and stringent testing protocols guarantee adherence to international standards. Our sheets and plates come in a range of thicknesses and sizes, making them perfect for extremely demanding applications. Pharmaceuticals, petrochemicals, and speciality chemical processing are just a few of the many industries that Daksh Sheets and Plates serves.
Nickel makes up the majority of Hastelloy B3 Sheets and Plates (65% min), with notable additions of molybdenum (28–30%), iron (1.5–3%), cobalt (up to 3%), and trace amounts of chromium. Excellent resistance to hydrochloric acid and other potent reducing agents is provided by this alloy. Hastelloy B3 has an approximate elongation of 40%, a yield strength of 320 MPa, and a tensile strength of 760 MPa. For high-temperature, corrosive environments where mechanical strength and chemical resilience are crucial, its enhanced thermal stability and resistance to stress corrosion cracking make it perfect.
Specifications :ASTM B333 / ASME SB333
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy B3 | 0.01 max | 3.0 max | 0.10 max | 0.50 max | 3.0 max | 65.0 min | 1.5 | 1.5 | 28.5 | 0.2 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 9.22 g/cm3 | 1418°C (2585°F) | 1000 – 2000 N/mm² , 145 – 290 ksi | 62 – 183 Ksi, 425 – 1260 MPa | 57 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy B3 | 2.4600 | N10675 |
Stocked Sizes | |
|---|---|
Size (in inches) | Size (in mm) |
.125″ | 3.18mm |
.134″ | 3.40mm |
.156″ | 3.96mm |
.187″ | 4.75mm |
.250″ | 6.35mm |
.312″ | 7.92mm |
.375″ | 9.53mm |
.500″ | 12.7mm |
.600″ | 15.9mm |
.750″ | 19.1mm |
.875″ | 22.2mm |
1″ | 25.4mm |
1.125″ | 28.6mm |
1.250″ | 31.8mm |
1.500″ | 38.1mm |
1.750″ | 44.5mm |
2″ | 50.8mm |
2.500″ | 63.5mm |
3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Chemical processing industries that involve aggressive reducing environments, particularly those that contain sulphuric, hydrochloric, or hydrobromic acids, frequently use Hastelloy B3 Sheets and Plates. Reactors, heat exchangers, pressure vessels, evaporators, and chemical storage tanks are examples of common applications. They are appropriate for handling highly reactive substances due to their high resistance to pitting and stress corrosion cracking. Hastelloy B3 is also used in specialised equipment in industries like electronics, agrochemicals, and pharmaceuticals where corrosion resistance and purity are crucial. It is the best option for demanding applications needing long service life and dependability due to its exceptional mechanical and corrosion-resistant qualities.
