Based in Hyderabad, India, Daksh Sheets and Plates is a well-known producer and supplier of premium metal goods designed to satisfy the exacting specifications of numerous industrial sectors. We provide a large selection of sheets and plates with custom sizes and surface finishes for a variety of applications, and we are renowned for our precision engineering. Long-lasting performance in demanding environments is ensured by our products’ remarkable strength, durability, and resistance to corrosion. Hastelloy sheets and plates are among our premium products; they are known for their exceptional resistance to high temperatures and severe corrosion, which makes them perfect for use in chemical, aerospace, and marine applications.
Hastelloy sheets and plates are nickel-based superalloys with exceptional corrosion resistance in harsh chemical environments, especially those in grades C276 and C22. Nickel (56–59%), chromium (14–22%), molybdenum (12–17%), and trace amounts of iron, cobalt, and tungsten are typical compositions. While Hastelloy C22 contains 20–22% Cr and 12–14% Mo, Hastelloy C276 contains approximately 15–17% Mo, 14–16% Cr, and 4–7% Fe. High performance in challenging conditions is ensured by mechanical properties such as tensile strength of 75–90 ksi (515–620 MPa), yield strength of 30–60 ksi (205–415 MPa), and elongation of 30–40%.

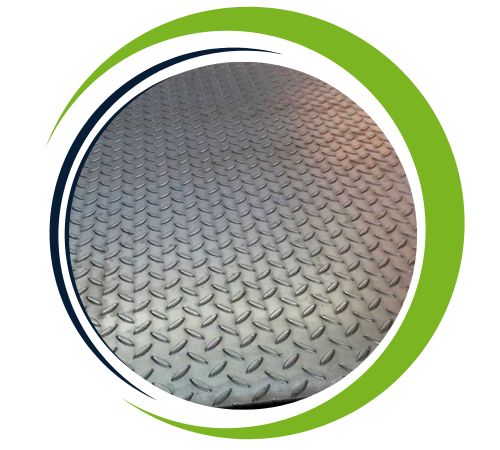

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grades | C276, C22, B2, B3, X |
| Hastelloy Plate Length | 0-12mm or as required |
| Specification of Hastelloy Plate | ASTM B575 UNS N10276, ASME SB575, MSRR, BS, AMS 4544 sheet |
| ASTM B575 Alloy C276 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |
| Hastelloy Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C276 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy sheets and plates offer numerous advantages, making them ideal for demanding applications in industries such as chemical processing, aerospace, and power generation. Their excellent resistance to corrosion and oxidation in harsh environments, including acids, chlorine, and high temperatures, ensures long-lasting durability. These alloys maintain structural integrity even in extreme conditions, preventing degradation and extending service life. Additionally Hastelloy sheets and plates exhibit high strength, good weldability and resistance to pitting and stress corrosion cracking. Their superior performance in extreme environments makes them an ideal choice for components that require reliability, efficiency and minimal maintenance.
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
Industries that demand high corrosion resistance and durability in harsh environments make extensive use of hastelloy sheets and plates. They work well with aggressive media like sulfuric and hydrochloric acids in chemical processing and are perfect for reactors, heat exchangers, storage tanks, and pipes. They are utilized in turbine engines, exhaust systems, and parts subjected to high pressure and heat in the aerospace sector. These alloys’ resistance to pitting, crevice corrosion, and oxidation makes them a dependable option for long-term industrial performance and makes them appropriate for use in nuclear reactors, pollution control systems, and marine environments.
