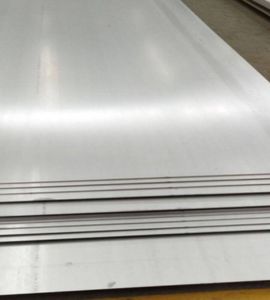

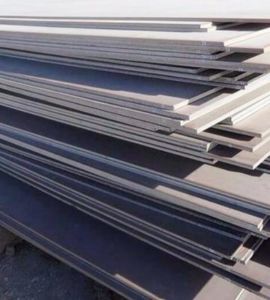

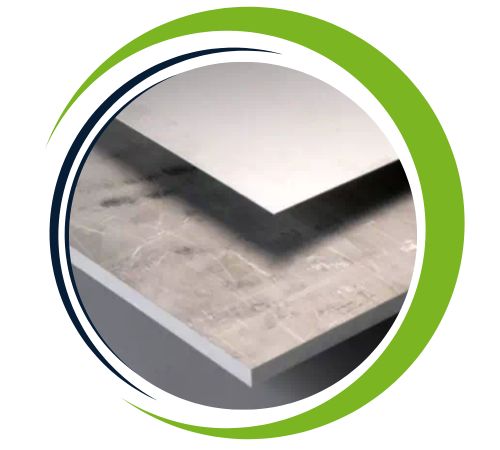

Based in Hyderabad, India, Daksh Sheets and Plates is a reputable producer and supplier of high-grade metal sheets and plates that offers customized solutions to a variety of industrial sectors. Reliable performance in even the most demanding environments is ensured by our emphasis on precision manufacturing and unwavering quality. One of our best products is the Hastelloy X Sheet and Plate, a high-performance alloy known for its remarkable resistance to corrosion, oxidation, and thermal fatigue at high temperatures. Hastelloy X is widely used in chemical processing, power generation, and aerospace. It is designed to withstand high temperatures and stress.
47.5% nickel, 22–23% chromium, 17–18% iron, 8–9% molybdenum, and trace amounts of cobalt, tungsten, and other elements make up Hastelloy X Sheets and Plates. Outstanding high-temperature corrosion resistance, oxidation resistance, and structural integrity are imparted by this special blend. Tensile strength ranges from 655 to 860 MPa (95 to 125 ksi), yield strength ranges from 240 to 380 MPa (35 to 55 ksi), and elongation ranges from 35 to 50%. Hastelloy X is a preferred material in harsh operating environments like jet engines and combustion systems because of these qualities as well as its exceptional resistance to thermal fatigue.
Specifications :ASTM B435 / ASME SB435
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Thickness : Ranging from 0.3mm to 20mm
Hardness : As per ASME A & NACE MR 175
Finish : Hot rolled plate (HR), Cold rolled sheet (CR)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy X | 0.05-0.15 | 1.0 max | 1.0 max | 0.50 max | 0.5-2.5 | Remainder | 20.5 – 23 | 17 – 20 | 8 – 10 | 0.15 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm3 | 1355°C (2470°F) | 95 KSI min (655 MPa min) | 35 KSI min (240 MPa min) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy X sheets and plates offer significant advantages, particularly in high-temperature applications. Known for their excellent resistance to oxidation and corrosion, they perform exceptionally well in extreme environments, such as gas turbines, aerospace components, and high-temperature chemical processing. With outstanding strength and thermal-fatigue resistance they maintain their structural integrity under fluctuating temperatures. Additionally, Hastelloy X provides superior weldability and formability, making it easy to fabricate into complex shapes. Its durability and long service life in harsh conditions reduce maintenance costs making it a preferred material for critical industrial applications that demand reliability and performance.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
| 3/16 inches | Hastelloy X | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Hastelloy X | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Hastelloy X | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Hastelloy X | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Hastelloy X | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Hastelloy X | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Hastelloy X | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Hastelloy X | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Hastelloy X | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Hastelloy X | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Hastelloy X | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Hastelloy X | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Hastelloy X | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Hastelloy X | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Hastelloy X | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Hastelloy X | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy X Plates and Sheets are widely used in high-temperature industrial settings where corrosion and heat resistance are essential. They are essential to the aerospace industry for producing combustion chambers, afterburners, and jet engine parts. They are perfect for gas turbines and power plant heat exchangers because of their exceptional thermal stability. Hastelloy X is utilized in chemical processing industries for its ability to withstand harsh chemical exposure in reactors, pressure vessels, exhaust ducts, and furnace components. Because of its long service life and exceptional resistance to harsh environments, it is also used in high-pressure steam systems and nuclear reactors.
