Incoloy 800/800H/800HT Coil,Slitting Coil

Based in Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of high-performance alloy coils, including premium-grade Incoloy 800 coils. We serve industries that require exceptional resistance to high temperatures and corrosive environments, placing a strong emphasis on quality, durability, and precision. Advanced manufacturing techniques are used to ensure consistent mechanical properties and dimensional accuracy in our Incoloy 800 coils. Daksh offers dependable and prompt solutions to a variety of industries, including petrochemical, power generation, heat treatment, and more. With the support of a group of professionals, we produce goods that surpass customer expectations and adhere to international standards.

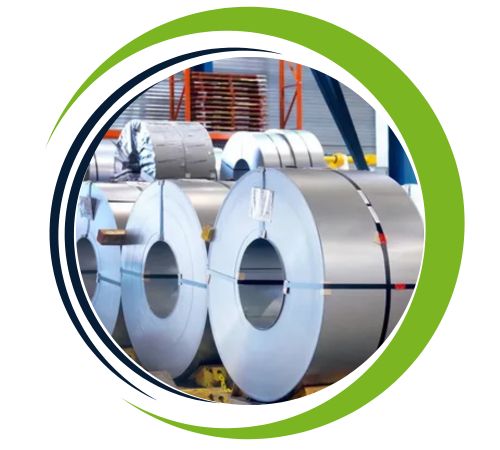

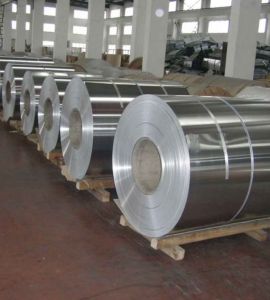

800 Incoloy Coils

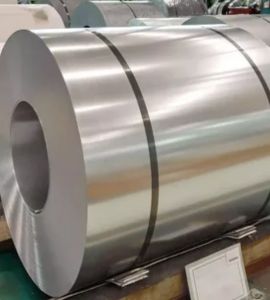

Incoloy 800H CR Coils

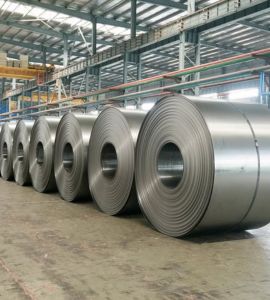

Incoloy 800HT HR Coil

UNS N08800 Incoloy Coils Price in India, Alloy 800 Coils Weight Chart, Incoloy Grade 800HT Coils Supplier in Hyderabad , Wide Range of Incoloy Gr.800 Coils in India, Alloy 800 Cold Rolled Coils Supplier in India, Incoloy 800HT HR Coil Price List in Hyderabad , Incoloy 800 Coils Supplier in India, Incoloy 800 Hot Rolled Coil Exporter in Hyderabad , ASTM B409 Incoloy 800HT Coil Exporter in India, Incoloy 800H Slitting Coils Exporter in Hyderabad , Incoloy 800HT Shim Coils in India

About 30–35% nickel, 19–23% chromium, and iron are balanced in Incoloy 800, a nickel-iron-chromium alloy with trace amounts of titanium and aluminium. In acidic and oxidising environments, it provides exceptional corrosion resistance, high temperature resistance, and strength. Up to 1100°C, the alloy retains its structural integrity. About 500 MPa of tensile strength, 210 MPa of yield strength, and 30–40% elongation are all displayed by Incoloy 800 coils. It is ideal for heat exchangers, reformer systems, and thermal processing equipment because of its mechanical and chemical characteristics.

Incoloy 800/800H/800HT Coil,Slitting Coil Specification

Specification	ASTM B409 / ASME SB409
Thickness	Plate 0125″ to 5.00″ / Sheets 008″ to .0125″
Sheet / Plates Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheet / Plates Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Sheets Hardness	Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Plate / Sheets Size	15NB to 150NB In
Tempers	Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Coils Thickness	0.3 mm to 120 mm
Coils Length	AS PER CUSTOMER’S REQUIREMENT
Form	Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils
Value Added Service	Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Incoloy 800/800H/800HT Coil,Slitting Coil Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Incoloy 800/800H/800HT Coil,Slitting Coil Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Equivalent Grades of Incoloy 800/800H/800HT Coil,Slitting Coil

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4959 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

Incoloy 800 Ring Coils Manufacturer in Hyderabad , Alloy 800HT Coils Hyderabad , 800 Incoloy Coils Supplier in Hyderabad , ASME SB409 Incoloy 800 Coils Exporter in India, Incoloy 800HT Slitting Coil Manufacturer in Hyderabad , 800H Incoloy Coils Distributor in Hyderabad , Incoloy 800 Cold Rolled Coils Supplier in Hyderabad , Incoloy 800HT Cold rolled Coils Distributor in India, Incoloy UNS N08810 Coils Sizes in mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Incoloy 800/800H/800HT Coil,Slitting Coil Manufacturer and Exporter in Hyderabad , India

Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Incoloy 800/800H/800HT Coil,Slitting Coil Sizes

Steel Coil	Size (mm)	Weight per Coil (Kg)	Size(mm)	Weight per Coil (Kg)
Incoloy 800/800H/800HT Coil	4000 x 2000 x 2.0	136.0	3000 x 1500 x 5.0	191.0
Incoloy 800/800H/800HT Coil	4000 x 2000 x 3.0	204.0	4000 x 2000 x 5.0	340.0
Incoloy 800/800H/800HT Coil	2500 x 1250 x 4.0	106.0	2500 x 1250 x 6.0	159.0
Incoloy 800/800H/800HT Coil	3000 x 1500 x 4.0	153.0	3000 x 1500 x 6.0	230.0
Incoloy 800/800H/800HT Coil	4000 x 2000 x 4.0	272.0	4000 x 2000 x 6.0	408.0
Incoloy 800/800H/800HT Coil	2500 x 1250 x 5.0	133.0

Alloy 1.4876 Coil Distributor in India, Incoloy 800 Hot Rolled Coil Supplier in Hyderabad , Incoloy Coils Grade 800HT Weight Chart, Incoloy 800H Coils Exporter in India, Grade 800HT Incoloy Coils Manufacturer in Hyderabad , ASTM B409 Alloy 800 Coils Price List in Hyderabad , Incoloy 800HT CR Coils Sizes in mm, Incoloy 1.4958 Ring Coils Distributor in Hyderabad , Incoloy 800HT Slitting Coil in India

Types of Incoloy 800/800H/800HT Coil,Slitting Coil

UNS N08811 Incoloy Coils Dealer in Hyderabad , Incoloy 800 Coils Supplier in Hyderabad , Incoloy 800HT Coils in Hyderabad , ASME SB409 Incoloy 800 Coils Size Chart, Incoloy 800H Coils Price in India, Incoloy 800HT Cold rolled Coils Supplier in Hyderabad , Incoloy 800 Shim Coils Stockist in India, ASME SB409 Alloy 800HT Coils Exporter in India, Incoloy 800H Coils Stockist in Hyderabad , DIN 1.4959 Incoloy Coils Supplier in India

Are Custom Sizes Available for Incoloy 800/800H/800HT Coil,Slitting Coill?

Yes, we offer custom sizes for Incoloy 800/800H/800HT Coil,Slitting Coil to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Incoloy 800/800H/800HT Coil,Slitting Coil

Industries that need materials with strong resistance to heat and oxidation frequently use Incoloy 800 coils. Heat exchangers, furnace parts, petrochemical processing, nuclear steam generators, and superheater tubes are examples of common uses. Because of their exceptional creep and stress rupture strength, they are utilised in trays, baskets, and fixtures in thermal processing facilities. These coils are used in refineries and power plants because they are stable when exposed to harsh chemicals and high temperatures for extended periods of time. In harsh conditions where dependability and material integrity are crucial, Daksh’s Incoloy 800 coils are dependable for providing long-lasting performance.
