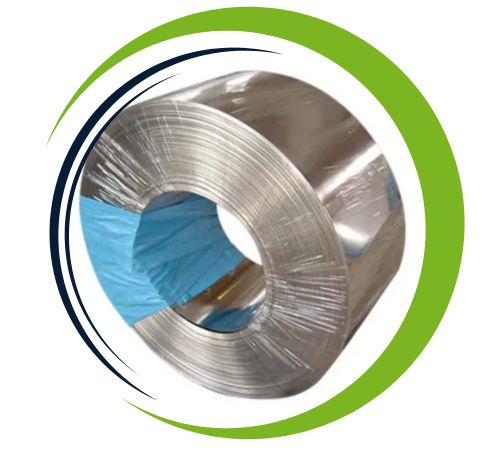

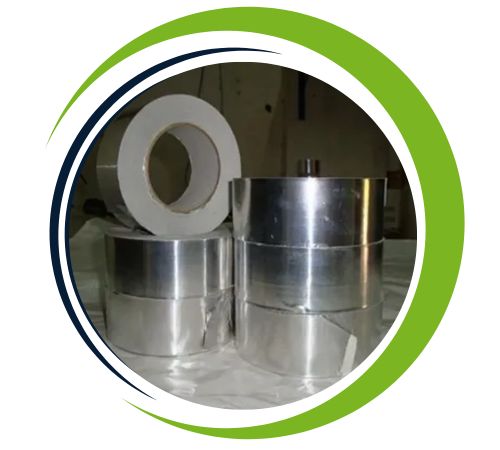

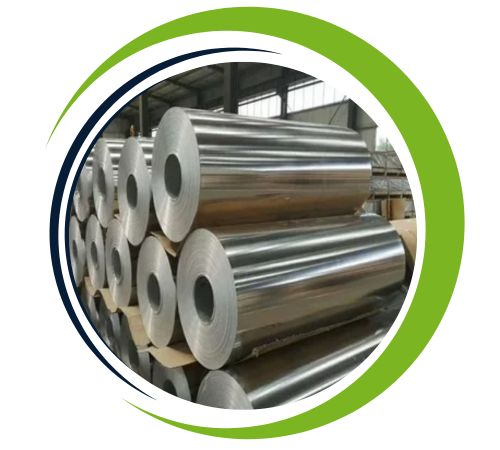

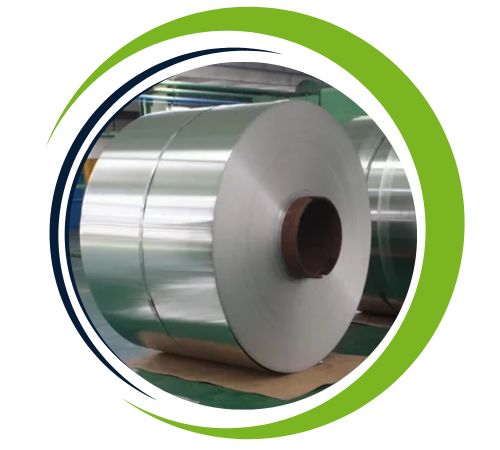

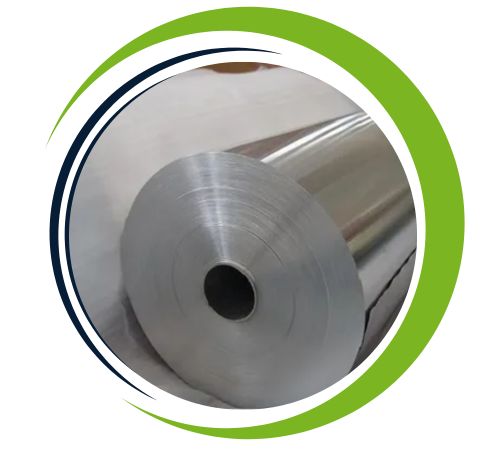

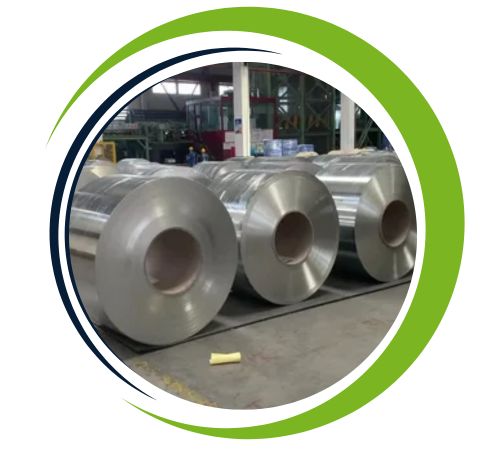

Reputable Incoloy 800 Foil manufacturer and supplier Daksh Sheets and Plates, with headquarters in Delhi, India, provides high-performance metal solutions for harsh temperatures and corrosive conditions. To guarantee exceptional surface finish, flexibility, and strength, our Incoloy 800 foils are made with premium raw materials and state-of-the-art technology. These foils come in a variety of widths and thicknesses to satisfy the demanding requirements of different industries. Daksh Sheets and Plates provides Incoloy 800 foils to industries like petrochemicals, power generation, aerospace, and heat treatment with a strong emphasis on quality and client satisfaction.
Nickel (30–35%), iron (at least 39.5%), and chromium (19–23%) make up the majority of Incoloy 800 Foils, with smaller amounts of titanium and aluminium. Excellent resistance to oxidation, carburisation, and high-temperature corrosion is guaranteed by this composition. Incoloy 800 foils have a tensile strength of roughly 75–90 ksi and retain mechanical stability when exposed to high temperatures for extended periods of time. They also have high ductility and formability, as well as good creep and rupture strength. Because of these characteristics, Incoloy 800 foils are perfect for use in industrial and structural settings where high pressure, heat, and corrosive environments are present.
Specifications : ASTM / ASME SB 409
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Grade : Incoloy Alloy 800 (UNS No. N08800) Coils & Strips
Hardness : Soft, Hard, Half Hard, Spring Hard, etc.
Finish : Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated)
Other services : Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | GOST | OR | BS | JIS | EN |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | ЭИ670 | XH32T | NA 15 | NCF 800 | X10NiCrAlTi32-20 |
| Incoloy 800 | C | Cr | Fe | S | Ni | Mn | Si | Cu |
| 0.10 max | 19.00 – 23.00 | 39.50 min | 0.015 max | 30.00 – 35.00 | 1.50 max | 1.00 max | 0.75 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Incoloy 800 Foils to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
Industries that require exceptional corrosion resistance and operate at high temperatures frequently use Incoloy 800 Foils. They are used in furnace components, reformer outlet manifolds, and heat exchangers in the petrochemical and power generation sectors. Because of their exceptional thermal stability, these foils are also utilised in nuclear steam generators and superheaters. Incoloy 800 foils are used in the aerospace industry as thermal barriers and insulation. They are also perfect for use in the pulp and paper, chemical processing, and heat-treating equipment industries. They are also appropriate for precision parts in sensors, gaskets, and shielding materials due to their lightweight and robust nature.
