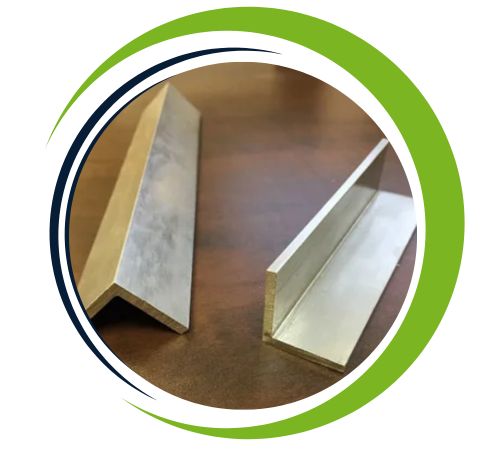

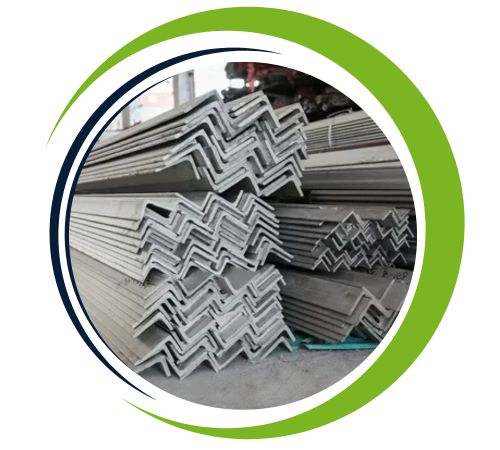

Based in Delhi, India, Daksh Sheets and Plates is a top producer and supplier of high-performance Incoloy 825 Angles, serving sectors that require remarkable durability and corrosion resistance. Incoloy 825 Angles from Daksh, which is renowned for its meticulous manufacturing and commitment to global quality standards, function dependably in harsh conditions that include acids, seawater, and high temperatures. Chemical processing, marine engineering, oil and gas, and pollution control systems all make extensive use of these angles. Daksh has established a solid reputation as a reliable supplier of high-quality nickel alloy products by emphasising quality, customisation, and on-time delivery.
The nickel-iron-chromium alloy Incoloy 825 Angle has been enhanced with titanium (0.6–1.2%), copper (1.5–3%), and molybdenum (2.5–3.5%). Iron (balance), chromium (19.5–23.5%), and nickel (38–46%) make up its main constituents. Excellent resistance to pitting, stress-corrosion cracking, and reducing and oxidising acids is provided by this alloy. Its yield strength is about 220 MPa, its tensile strength is about 585 MPa, and its elongation is up to 30%. Because Incoloy 825 retains its mechanical integrity over a broad temperature range, it can be used in corrosive environments for both structural and pressure-bearing applications.
Specifications : ASTM B425 / ASME SB425
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy 825 Angle to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
Numerous industries that require high-strength, corrosion-resistant structural elements use Incoloy 825 Angles. They are perfect for heat exchangers, tanks, and piping systems exposed to phosphoric and sulphuric acids in the chemical processing industry. Their ability to withstand seawater makes them ideal for offshore platforms, boat frames, and structural supports. They are utilised in riser systems, valves, and downhole equipment in the oil and gas sector. Incoloy 825 Angles are also utilised in flue gas scrubbers, nuclear fuel reprocessing, and pollution control systems where corrosion resistance and mechanical strength are crucial.
