Incoloy 825 Sheets and Plates

In Delhi, India, Daksh Sheets and Plates is a reputable company that produces and distributes premium Incoloy 825 Sheets and Plates. We are renowned for our dedication to quality and provide long-lasting, corrosion-resistant alloy solutions that are customised to satisfy a range of industrial demands. Every product we deliver satisfies international standards thanks to our sophisticated infrastructure and strict quality control procedures. Daksh Sheets and Plates, which serves both domestic and foreign markets, is known for its accuracy and dependability. We provide specialised sizes and specifications as needed to industries like power generation, marine, and chemical processing.

Incoloy 825 Sheets Dealer in Hyderabad , Incoloy 2.4858 Plates Supplier in Hyderabad , Incoloy 825 Sheets in Hyderabad , 825 Incoloy Plates Size Chart, Incoloy 825 Sheet Price in India, Incoloy 825 Plates Supplier in Hyderabad , 825 Incoloy Sheet Stockist in India, 825 Incoloy Alloy Sheets and Plates Exporter in India, Incoloy 825 Sheet Stockist in Hyderabad , Incoloy Plates Supplier in India

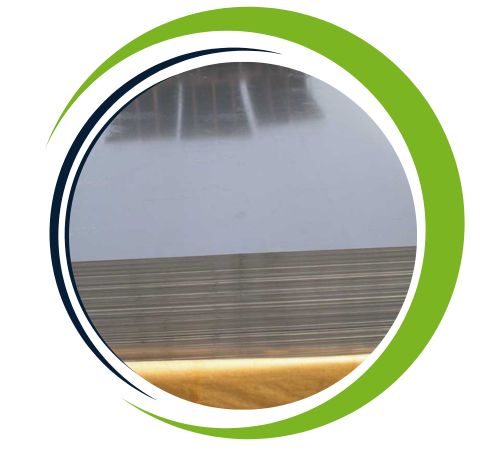

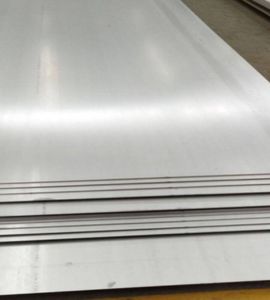

Incoloy 825 Cold Rolled Plates

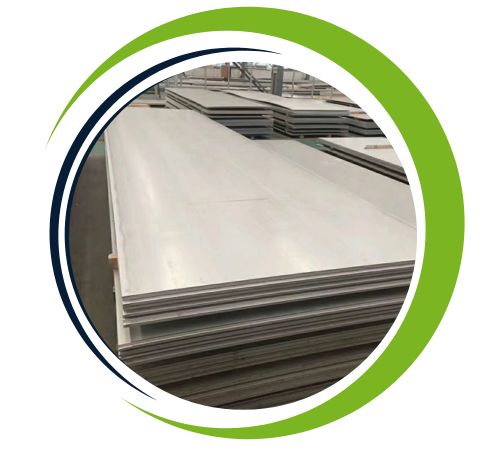

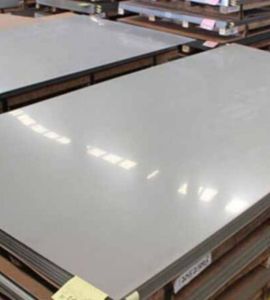

Incoloy 825 Hot Rolled Plates

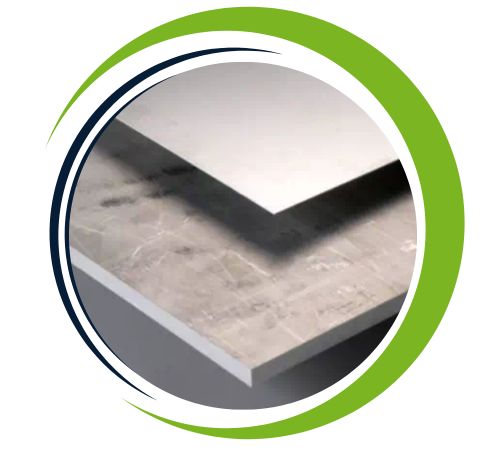

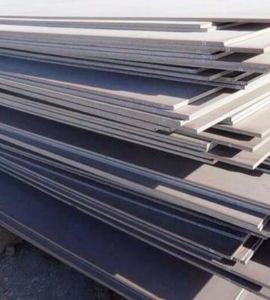

Incoloy 825 Clad Sheets and Plate

Nickel (38–46%), iron (balance), chromium (19.5–23.5%), molybdenum (2.5–3.5%), copper (1.5–3%), and titanium (0.6–1.2%) make up Incoloy 825 Sheets and Plates. Excellent resistance to acid attacks, particularly those caused by sulphuric and phosphoric acids, is provided by this precise composition. Mechanically, they have a 30% elongation, a tensile strength of about 550 MPa, and a yield strength of about 220 MPa. Because of these characteristics, Incoloy 825 is perfect for uses that call for high strength and resistance to general corrosion, stress corrosion, and cracking in challenging conditions.

Incoloy 825 Sheets and Plates Specification

Specifications:	ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Thickness:	4 mm To 100 mm
Length:	2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required
Width:	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required
Grade	800/ 800H/ 800HT/ 825
Application	Building industry,architectural decoration,elevators,building doors,panels and so on.
Standard:	ASTM，AISI，JIS，GB， DIN，EN
Surface:	BA，2B，NO.1，NO.4，4K，HL，8K
Certification:	ISO, SGS，BV
Technique:	Cold Rolled Hot Rolled
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Sheets, Plates, Coils, Slatting Coils, Perforated Coils

Incoloy 825 Sheet and Plate Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Alloy 825 Sheet and Plate Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Equivalent Grades for 825 Incoloy Sheet and Plates

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

825 Incoloy Sheets Price in India, 825 Incoloy Hot Rolled Weight Chart, Incoloy N08825 Cold Rolled Supplier in Hyderabad , Stockist of Incoloy 825 Alloy Cold Rolled Sheets in India, 825 Incoloy Perforated Sheet Supplier in India, Incoloy 825 Perforated Plates Price List in Hyderabad , Alloy Perforated Plates Supplier in India, Incoloy 825 Chequered Plates Exporter in Hyderabad , Incoloy Alloy 825 Polished Plates Exporter in India, 825 Incoloy Perforated Plates Exporter in Hyderabad , 825 Incoloy Sheet and Plate in India

Weight Chart of 825 Incoloy Alloy Sheets and Plates

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Incoloy 825 Plate Size

Incoloy 825 Plates STOCKED SIZES
SIZE	ALLOY 825	SIZE
.125″	X	3.18mm
.134″		3.40mm
.156″	X	3.96mm
.187″	X	4.75mm
.250″	X	6.35mm
.312″	X	7.92mm
.375″	X	9.53mm
.500″	X	12.7mm
.625″	X	15.9mm
.750″	X	19.1mm
.875″		22.2mm
1″	X	25.4mm
1.125″		28.6mm
1.250″	X	31.8mm
1.500″	X	38.1mm
1.750″	X	44.5mm
2″	X	50.8mm
2.500″	X	63.5mm
3″		76.2mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Incoloy 825 Sheet and Plates Manufacturer and Exporter in Hyderabad , India

Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

DIN 2.4858 Incoloy Clad Sheets Distributor in India, 825 Incoloy Perforated Plates Supplier in Hyderabad , 825 Incoloy Perforated Sheet Weight Chart, Incoloy 825 Plate Exporter in India, 825 Incoloy Polished Sheets Manufacturer in Hyderabad , Incoloy 825 Shim Sheet and Plate Price List in Hyderabad , 825 Incoloy Chequered Plates Sizes in mm, Incoloy Alloy 825 Hot Rolled Plate Distributor in Hyderabad , 825 Incoloy Sheets and Plates India

Types of Incoloy 825 Sheet and Plates

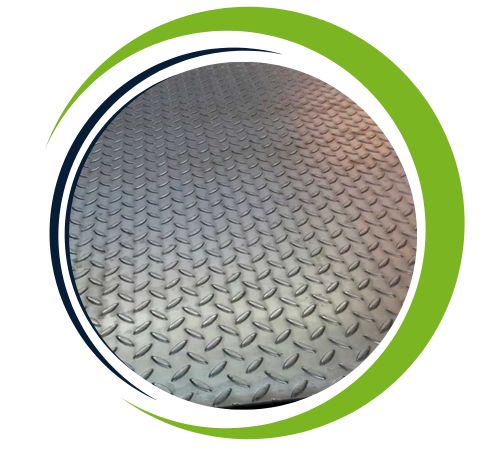

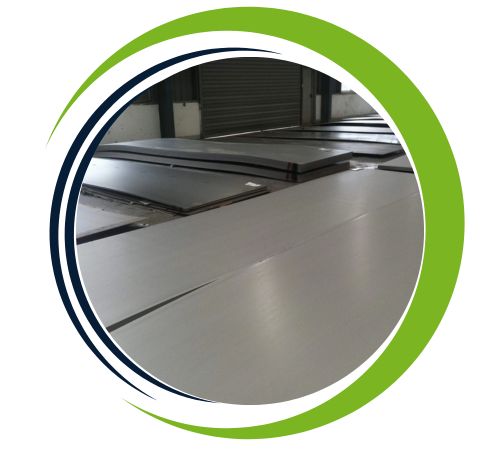

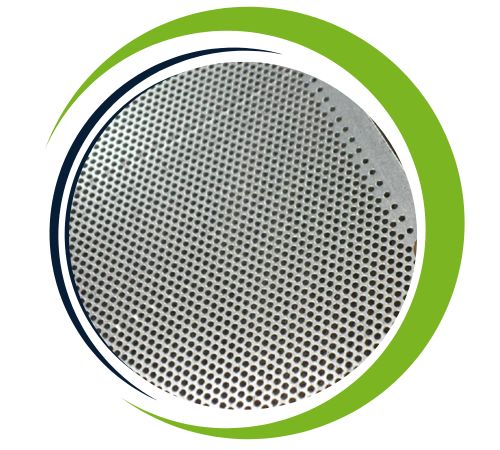

UNS N08825 Incoloy Plates Manufacturer in Hyderabad , 825 Incoloy Plates and Sheets Hyderabad , Incoloy 825 Mirror Finish Plates Supplier in Hyderabad , 825 Incoloy Polished Plates Exporter in India, Incoloy 825 Alloy Chequered Plates Price List in Hyderabad , Incoloy 825 Cold Rolled Plate Distributor in Hyderabad , 825 Incoloy Clad Plates and Sheets Supplier in Hyderabad , Incoloy 825 Sheet and Plate Distributor in India, 825 Incoloy Perforated Plate Sizes in mm

Are Custom Sizes Available for Incoloy 825 Sheet and Plates?

Yes, we offer custom sizes for Incoloy 825 Sheet and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Incoloy 825 Sheet and Plates

Industries where exceptional corrosion resistance is essential make extensive use of Incoloy 825 Sheets and Plates. Chemical processing, pollution control, oil and gas recovery, marine exhaust systems, and nuclear fuel reprocessing are examples of common uses. They are appropriate for heat exchangers, tanks, piping systems, and reactor vessels due to their exceptional resistance to pitting, crevice corrosion, stress corrosion cracking, and oxidising and reducing acids. They are also extensively utilised in offshore oil drilling platforms and acid production facilities. For long-term performance in harsh and corrosive environments, Incoloy 825 plates are recommended because of their mechanical strength and longevity.
