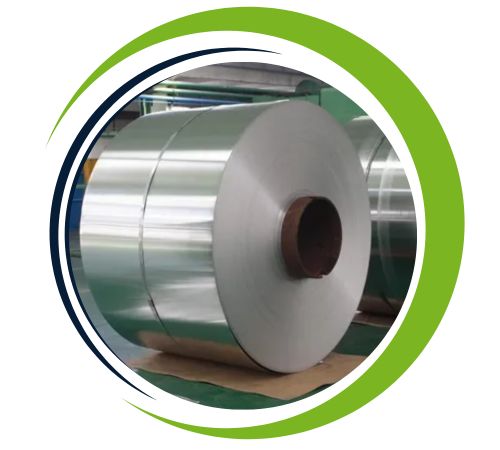

Based in Delhi, India, Daksh Sheets and Plates is a trustworthy and well-known producer and supplier of Inconel 601 coils and slitting coils. We are well-known for providing high-quality high-temperature alloys, and our speciality is providing Inconel 601 products, which have remarkable resistance to thermal shock, carburisation, and oxidation. To satisfy international standards, our coils are carefully designed utilising cutting-edge technology and stringent quality control procedures. These coils come in different widths and thicknesses and are perfect for corrosive and high-heat environments. Daksh is a preferred supplier in a number of high-performance industrial sectors because we guarantee on-time delivery, adaptable specifications, and outstanding service.
Inconel 601 Slitting/Coils Nickel (58–63%) and chromium (21–25%) make up the majority of coils, with trace amounts of carbon, iron, aluminium, and other elements. This alloy is renowned for its exceptional resistance to scaling and oxidation at high temperatures. It has an elongation of 30%, a yield strength of 30,000 psi (205 MPa), and a tensile strength of about 80,000 psi (550 MPa). Inconel 601 is appropriate for high-heat applications and harsh chemical environments due to its mechanical stability under extreme thermal conditions, as well as its good creep and stress rupture strength.
Specifications : ASTM B168 / ASME SB168
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Coils, Shim Coils, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Cu | S | Cr | Fe | Ni | N |
| Inconel Alloy 601 | 0.10 max | 1.00 max | 0.50 max | 1.00 max | 0.015max | 21.00 – 25.00 | Bal | 58.0-63.0 | – |
| Density | Melting Point | Tensile Strength | Yield Strength 0.2% Proof | Elongation (% in 50mm) (thick.>0.76mm) |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Slitting and Coils for Inconel 601 Industries that require materials with exceptional heat and corrosion resistance frequently use coils. Heat-treating apparatus, furnace components, radiant tubes, muffles, and thermal processing systems are examples of common applications. They are also utilised in waste incinerators, petrochemical facilities, power plants, and aerospace components. These coils are perfect for use in gas turbines, catalytic converters, and industrial furnaces because of their exceptional mechanical strength and resistance to oxidation at temperatures as high as 1200°C. Slitting coils are particularly helpful when producing precision parts and components under corrosive and high-temperature operating conditions.
