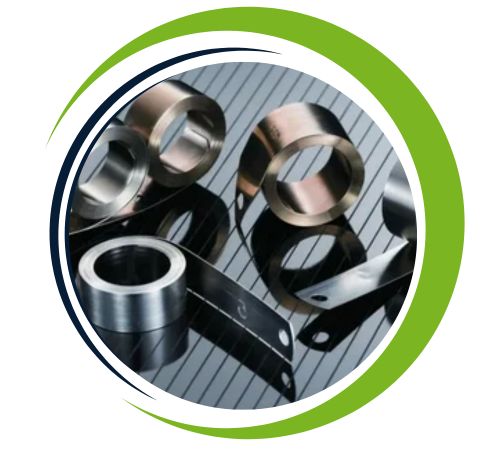

Daksh Sheets and Plates is a well-established manufacturer and supplier of high-performance Inconel 601 Foils based in Delhi, India. We specialize in delivering precision-engineered foils made from high-temperature, corrosion-resistant alloys designed to meet the rigorous demands of industrial applications. Our Inconel 601 Foils are known for their superior resistance to oxidation and scaling at elevated temperatures, making them suitable for use in extreme environments. Produced using advanced rolling and annealing techniques, our foils maintain tight thickness tolerances and exceptional surface quality. Daksh is committed to quality, timely delivery, and complete customer satisfaction across a wide range of industries.
Nickel (58–63%) and chromium (21–25%) make up the majority of Inconel 601 Foils, with trace amounts of carbon, silicon, and manganese as well as aluminium and iron. At high temperatures, this special composition offers exceptional resistance to oxidation and carburisation. The alloy has a yield strength of 30,000 psi (205 MPa), a tensile strength of about 80,000 psi (550 MPa), and an elongation of about 30%. Additionally, it offers strong creep and stress rupture. Because of its mechanical qualities and thermal stability, Inconel 601 is perfect for high-temperature foil applications in demanding settings.
| Standards | ASTM B168 / ASME SB168 |
| Thickness | 0.3 – 10.0mm & AS PER CUSTOMER’S REQUIREMENT |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm & AS PER CUSTOMER’S REQUIREMENT. |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm & AS PER CUSTOMER’S REQUIREMENT. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard AS PER CUSTOMER’S REQUIREMENT. |
| Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
| Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled (HR), Cold rolled (CR), SATIN (Met with Plastic Coated) etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.00 max | 0.50 max | 0.015max | 1.00 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Inconel 601 Foils to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| Thickness | Foil Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Industries that need high-performance materials that can withstand extreme heat and corrosion frequently use Inconel 601 Foils. Heat exchanger linings, electrical resistance components, catalytic converter shields, thermal insulation, and aerospace engine parts are among the common uses. Because of their exceptional resistance to oxidation, Inconel 601 Foils are also utilised in radiant burner screens, furnace linings and industrial oven components. Because of their great strength and lightweight design, they are perfect for wrapping, shielding, or layering applications in the petrochemical processing, power generation, and aerospace industries where performance and space are crucial.
