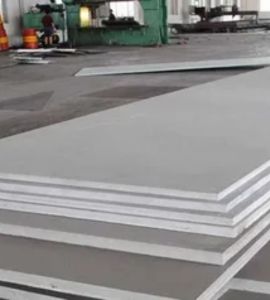

Based in Delhi, India, Daksh Sheets and Plates is a top producer and supplier of Inconel 601 Sheets and Plates. We provide premium Inconel 601 products made for corrosive and high-temperature environments and are renowned for our excellence in metal alloy solutions. Our Inconel 601 sheets and plates are perfect for heat-intensive industrial applications because of their exceptional resistance to oxidation and scaling. At Daksh, we make sure that international standards are strictly followed and offer solutions that are specifically designed to meet the needs of our clients. We have established a solid reputation in both domestic and international markets thanks to our dedication to quality, performance, and on-time delivery.
Aluminium is added to Inconel 601, a nickel-chromium-iron alloy, to increase its resistance to oxidation at high temperatures. About 61% nickel, 23% chromium, 14% iron, and trace elements like carbon and aluminium (1.4%) make up its normal composition. It provides outstanding creep and stress rupture properties along with a tensile strength of approximately 550 MPa to 760 MPa. Inconel 601 is perfect for demanding thermal applications because it retains its mechanical integrity at temperatures as high as 1200°C. It provides a balance of strength, heat resistance, and corrosion protection and is simple to fabricate and weld.
| 601 Sheets & Plates Specifications | ASTM B168 / ASME SB168, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 601 Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Alloy 601 Sheets & Plates Size Range | Cold rolled ASME SB168 Grade 601 Inconel Sheet 0.5-6.4 mm Hot rolled ASME SB168 Grade 601 Inconel Sheet 3.0–10.0 mm |
| 601 Inconel Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Inconel 601 Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Inconel 601 Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Inconel 601 Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Inconel 601 Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SB168 601 Inconel Strips EN 10088 SA -240-601 Strips |
| Finish of Inconel 601 Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Inconel 601 Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.00 max | 0.50 max | 0.015max | 1.00 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Inconel 601 Sheets and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
Applications needing exceptional heat and oxidation resistance frequently use Inconel 601 Sheets and Plates. These consist of thermal processing units, radiant tubes, heat-treating apparatus, and industrial furnaces. The alloy is perfect for high-temperature aerospace components, gas turbines, exhaust systems, and petrochemical processing. Because of its resistance to sulphur compounds and carburisation, it is also used in pollution control and power generation systems. Because of its resilience to extended heat exposure, Inconel 601 is a material of choice for pressure vessels and structural components in abrasive, oxidising, and high-temperature industrial settings.
