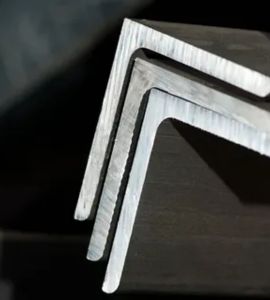

With its main office in Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of premium Inconel 718 Angles made for demanding and high-performance applications. Daksh produces goods that meet international engineering and metallurgical standards thanks to its cutting-edge facilities and knowledgeable staff. Inconel 718 Angles from Daksh are well-known for their strength, resistance to heat, and ability to prevent corrosion. They are perfect for use in the petrochemical, automotive, power generation, and aerospace industries. The company is a well-known brand in the metal industry for excellent nickel-based alloy solutions because of its dedication to quality, prompt delivery, and customer satisfaction.
Nickel (50–55%), chromium (17–21%), iron (bal.), niobium (4.75–5.5%), molybdenum (2.8–3.3%), and trace amounts of titanium and aluminium make up the majority of Inconel 718 Angle, a nickel-based superalloy with high strength and resistance to corrosion. Precipitation-hardened, it has outstanding fatigue and creep resistance, a yield strength of about 1030 MPa, and a tensile strength of up to 1240 MPa. In demanding industrial settings, Inconel 718 exhibits remarkable performance in high-temperature settings, retains mechanical stability up to 700°C, and is resistant to oxidation and corrosion.
Specifications : ASTM B637 / ASME SB637
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 718 | 2.4668 | N07718 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Inconel 718 Angle to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Angle Bar (kilogram/meter) | Inconel 718 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
In high-stress, high-temperature settings where dependability is essential, Inconel 718 Angles are frequently utilised. They are used in structural airframe parts, jet engines, and turbine engine components in the aerospace sector. Because of their resistance to fatigue and heat, they are used in gas turbines and heat exchangers in power plants. These angles are utilised in pressure vessels, fasteners, and downhole tools in the oil and gas industry. They are also appropriate for marine applications, automobile turbochargers, and nuclear reactors due to their strength and resistance to corrosion. For demanding and high-performance engineering applications, Inconel 718 Angles are the material of choice.
