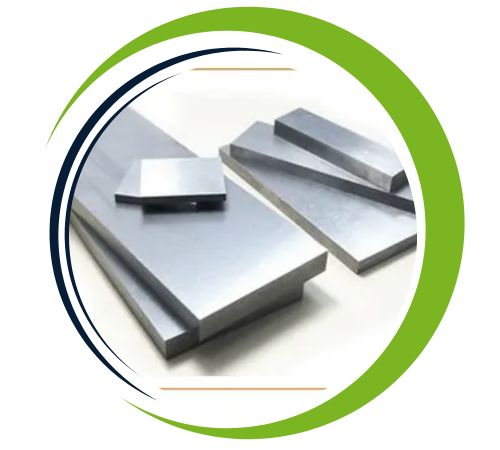

Based in Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of high-quality Jethete M152 Sheets and Plates. We serve a wide range of industries, including aerospace, power generation, and defence, and are renowned for our dedication to precision engineering and material excellence. Superior performance in harsh environments is guaranteed by the careful production of our Jethete M152 products, which adhere to both national and international standards. Delivering high-strength, corrosion-resistant materials that satisfy the changing demands of crucial industrial applications is the mission of Daksh Sheets and Plates, which has state-of-the-art manufacturing facilities and a customer-centric approach.
The main constituents of Jethete M152 Sheets and Plates, which are martensitic stainless steel alloys, are 12% chromium, 12% molybdenum, 12% vanadium, and trace amounts of carbon and nickel. At high temperatures, this composition improves their toughness, strength, and creep resistance. High tensile strength (~1050 MPa), yield strength (~850 MPa), and good elongation (~14%) are just a few of the exceptional mechanical qualities displayed by these sheets and plates. Jethete M152 is perfect for demanding environments because it retains its structural stability and resistance to oxidation at temperatures as high as 560°C. Its versatility for engineering applications is further enhanced by its heat treatability and weldability.
| Standard Specification : | ASTM A666 / ASME SA666, Jethete M152 (BS S151/ S159) | MSRR 6503 | AMS 5719 | DTD 5066 | WS 1.4933 | AECMA FE-PM37 | UNS S64152 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| STANDARD | UNS | WERKSTOFF NR. | BS | MSRR | AMS | DTD | AECMA |
| Jethete M152 | S64152 | 1.4933 | S151/ S159 | 6503 | 5719 | 5066 | FE-PM37 |
| C | Si | Mn | P+S max | Cr | Mo | Ni | N | V |
| 0.08-0.13 | 0.35 max | 0.50-0.90 | P 0.030 S 0.025 | 11-12.5 | 1.50-2.0 | 2-3 | 0.02-0.04 | 0.25-0.40 |
| Grade | Treatment | Tensile Strength Mpa | Yield Strength Mpa | Elongation % | Hardness HB | Ruling Section |
| S151A S151D | Softened Finally Heat Treated | 930-1130 | 780 | 14 | 311max 286-311 | – 150mm |
| S159A S159D | Softened Finally Heat Treated | 1100-1300 | 900 | 8 | 311 max 321-388 | 50mm |
| AMS 5719 AMS 5719 | Annealed Hardened & Double Templerd | 1069 min | 896 | 12 | 311 341-375 | – – |
| Physical Properties | Imperial | Metric |
| Density | 0.28 lb/in³ | 7.75 g/cc |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Jethete M152 Sheets and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
Jethete M152 Plates and Sheets are frequently utilised in high-temperature and high-performance applications. Because of their exceptional creep and fatigue resistance, they are primarily used in aerospace components like engine casings, discs, and turbine blades. They are also used for critical components exposed to high temperatures and stress in nuclear and thermal power plants. Jethete M152 is also preferred in the defence and automotive industries for the production of fasteners, shafts, and structural elements. Because of its exceptional mechanical strength, resistance to oxidation, and thermal stability, it is a preferred material for industries that need reliable performance in harsh environments.
