Manganese Bronze Sheets and Plates

Based in Delhi, India, Daksh Sheets and Plates is a top producer and supplier of high-quality Manganese Bronze Sheets and Plates. We provide high-strength, corrosion-resistant bronze alloys that are suited to a variety of industrial needs. We are renowned for our meticulous manufacturing and dedication to quality. Our manganese bronze plates and sheets are designed for long-term durability and exceptional mechanical qualities in high-stress situations. Daksh serves the marine, aerospace, heavy machinery, and defence industries with an emphasis on performance and dependability. To satisfy the needs of both domestic and foreign clients, we guarantee prompt delivery, affordable prices, and comprehensive technical support.

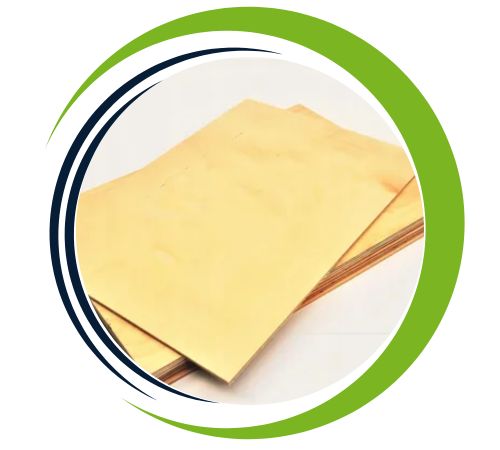

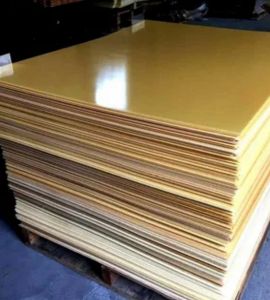

Manganese Bronze Sheet

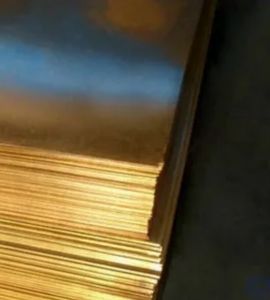

Manganese Bronze Cold Rolled Plates

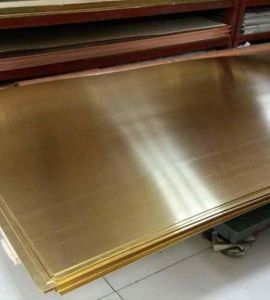

Manganese Bronze Rolled Plates

Manganese Bronze Sheets Dealer in Hyderabad , Manganese Bronze Plates Supplier in Hyderabad , Manganese Bronze Sheets in Hyderabad , Manganese Bronze Plates Size Chart, Manganese Bronze Sheet Price in India, Manganese Bronze Plates Supplier in Hyderabad , Manganese Bronze Sheet Stockist in India, Alloy Sheets and Plates Exporter in India, Alloy Sheet Stockist in Hyderabad , Manganese Bronze Plates Supplier in India

Copper (55–65%) and zinc (20–25%) make up the majority of manganese bronze sheets and plates, with lesser amounts of manganese, iron, aluminium, and occasionally lead. Excellent strength, hardness, and corrosion resistance are provided by this alloy, especially in high-load and marine applications. Manganese bronze has a moderate elongation, good machinability, and a tensile strength between 350 and 600 MPa. Additionally, it is resistant to stress cracking and dezincification, which makes it appropriate for heavy-duty parts that need to be resilient to industrial and saltwater conditions.

Manganese Bronze Sheets and Plates Specification

Standard	JIS H3250-2006,ASTM B152M,GB/T2040-2008,ASTM B36,ASTM B194,ASTM B888, ASTM B19,ASTM B122,etc
Thickness	0.1-120mm
Width	2-2500mm
Length	1m,2m,3m,6m,or as required
Surface	mill,polished,bright,mirror,hair line,brush,checkered,antique,sand blast,etc
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
Application	Brass plate has a high corrosion resistance, and have good plasticity,in the air easy to cold and hot pressure processing,easy to welding, forging and tin, no stress corrosion cracking the tendency.

Chemical Composition ofManganese Bronze Sheets and Plates

Cu(1)	Al	Fe	Pb	Mn	Sn	Zn
Min./Max.	57.0-60.0	.25	.8-2.0	.20	.05-.50	.50-1.5	Rem.
Nominal	58.5	–	1.4	–	.10	1.0	39.0

Mechanical Properties Of Manganese Bronze Sheets and Plates

ensile Strength, min		Yield Strength, at 0.5% extension under load, typ		Elongation, in 2 in. or 50 mm typ	Brinell Hardness (500 kg load)	Remarks
ksi	MPa	ksi	MPa	%	typical BHN
65	448	25	172	20	90

Manganese Bronze Sheets Price in India, Manganese Bronze Hot Rolled Weight Chart, Manganese Bronze Cold Rolled Supplier in Hyderabad , Stockist of Manganese Bronze Alloy Cold Rolled Sheets in India, Manganese Bronze Perforated Sheet Supplier in India, Manganese Bronze Perforated Plates Price List in Hyderabad , Alloy Perforated Plates Supplier in India, Manganese Bronze Chequered Plates Exporter in Hyderabad , Manganese Bronze Alloy Polished Plates Exporter in India, Manganese Bronze Perforated Plates Exporter in Hyderabad , Manganese Bronze Sheet and Plate in India

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Manganese Bronze Sheets and Plates Manufacturer and Exporter in Hyderabad , India

Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Physical Properties of Manganese Bronze Sheet

US Customary	Metric
Melting Point – Liquidus	1616 °F	880 °C
Melting Point – Solidus	1583 °F	862 °C
Density	0.301 lb/in3 at 68 °F	8.33 gm/cm3 at 20 °C
Specific Gravity	8.33	8.33
Electrical Conductivity	19% IACS at 68 °F	0.110 MegaSiemens/cm at 20 °C
Thermal Conductivity	51 Btu/sq ft/ft hr/°F at 68 °F	88.3 W/m at 20 °C
Coefficient of Thermal Expansion 68-572	11 · 10-6 per °F (68-572 °F)	19 · 10-6 per °C (20-300 °C)
Specific Heat Capacity	0.09 Btu/lb/°F at 68 °F	377.1 J/kg at 20 °C
Modulus of Elasticity in Tension	14000 ksi	96527 MPa

Manganese Bronze Clad Sheets Distributor in India, Manganese Bronze Perforated Plates Supplier in Hyderabad , Manganese Bronze Perforated Sheet Weight Chart, Manganese Bronze Plate Exporter in India, Manganese Bronze Polished Sheets Manufacturer in Hyderabad , Manganese Bronze Shim Sheet and Plate Price List in Hyderabad , Manganese Bronze Chequered Plates Sizes in mm, Manganese Bronze Alloy Hot Rolled Plate Distributor in Hyderabad , Manganese Bronze Sheets and Plates India

Types of Manganese Bronze Sheets and Plates

Manganese Bronze Plates Manufacturer in Hyderabad , Manganese Bronze Plates & Sheets Hyderabad , Manganese Bronze Mirror Finish Plates Supplier in Hyderabad , Manganese Bronze Polished Plates Exporter in India, Manganese Bronze Alloy Chequered Plates Price List in Hyderabad , Manganese Bronze Cold Rolled Plate Distributor in Hyderabad , Manganese Bronze Clad Plates and Sheets Supplier in Hyderabad , Manganese Bronze Sheet and Plate Distributor in India, Manganese Bronze Perforated Plate Sizes in mm

Are Custom Sizes Available for Manganese Bronze Sheets and Plates?

Yes, we offer custom sizes for Manganese Bronze Sheets and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Manganese Bronze Sheets and Plates

Applications needing high strength, resistance to wear, and protection from corrosion frequently use manganese bronze sheets and plates. Propeller shafts, gears, bearings, bushings, pump parts, and marine hardware are among the common applications. These plates are appropriate for the shipbuilding and naval industries since they are perfect for parts that are subjected to industrial chemicals and saltwater. They are utilised in high-load structural and mechanical components in heavy engineering that require durability and toughness. Because of its strength-to-weight ratio and ability to withstand corrosion and stress over time, manganese bronze is also prized in aerospace and defence applications.
