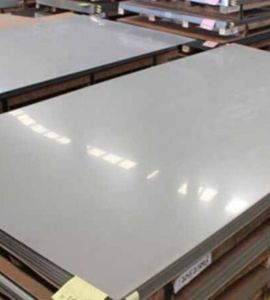

Based in Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of high-performance metal sheets and plates, serving sectors that require accuracy and dependability. Daksh provides a wide selection of Maraging Steel 250, 300, and 350 Sheets and Plates and is renowned for its reliable quality and engineering prowess. These goods are painstakingly made to satisfy exacting technical specifications in vital fields like industrial tooling, automotive, aerospace, and defense. Daksh is a reliable partner for advanced material and metallurgical needs across a variety of sectors because it makes sure every solution is customized to match customer specifications.
The ultra-high-strength steels known as Maraging Steel 250, 300, and 350 Sheets and Plates are composed of 18–19% nickel and contain trace amounts of aluminum, cobalt, molybdenum, and titanium. These low-carbon alloys are perfect for heat treatment and offer outstanding weldability. Mechanical characteristics include exceptional hardness, dimensional stability, and wear resistance, as well as tensile strengths between 250 and 350 ksi and elongation between 5 and 15%. They are perfect for demanding, precisely engineered components because of their exceptional performance under heat and stress.
| Specification : | ASTM A538, AMS 6512, Mil-S-46850D, BS S162, DTD 5212, MSRR 6551, MAT 102, MIA 101 |
| Standard : | AMS, AMS, API |
| Size : | 20mm x 1200 x 500 |

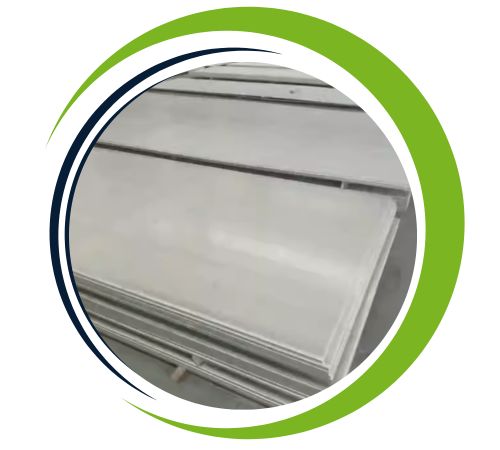

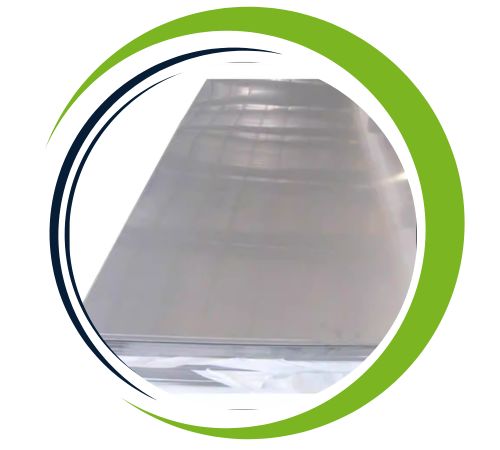

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |

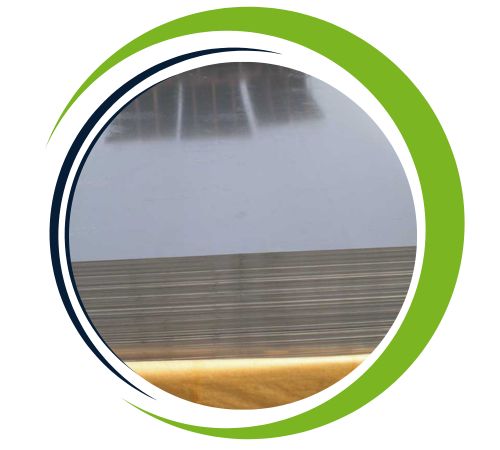

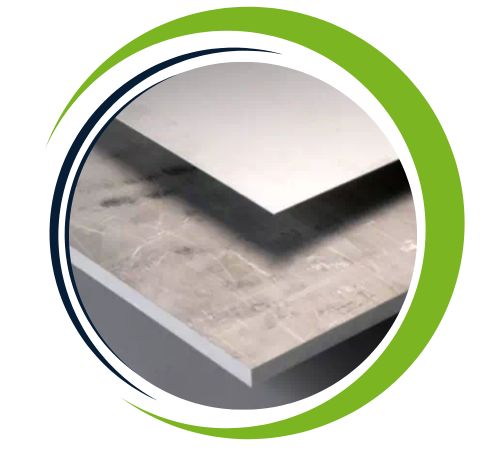

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Maraging Steel 250/ 300 / 350 (UNS-K92890, K93120, S35000) |
| Weight% | C | Si | Mn | S | P | Co | Ni | Mo | Ti | Al | Fe |
| Maraging 300 | 0.03 max | 0.10 max | 0.10 max | 0.010 max | 0.010 max | 8.0-9.5 | 18.0-19.0 | 4.6-5.2 | 0.55-0.80 | 0.05-0.15 | Bal |
| Material | 0.2 % Yield Strength ksi | Ultimate Tensile Strength ksi | Elongation in 4D(%) | Reduction of Area % | Hardness Rc |
| Maraging 300, Solution Annealed 1500° F (816°C), 1hr, AC | 120 | 150 | 16 | 70 | 30 |
| Solution Annealed Plus Aged 900 ° F (482°C), 3 hrs AC | 280 | 290 | 8 | 40 | 52 |
| STANDARD | UNS | Material No | AMS | ASTM | Mil-S | BS | DTD | MSRR |
| Maraging Steel | K92890, K93120, S35000 | – | 6512 | A538 | 46850D | S162 | 5212 | 6551 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Marraging steel 250/300/350 sheets and plates provide exceptional strength and toughness, making them ideal for aerospace, equipment, and defense applications They provide excellent machinability in the annealed state and exhibit excellent resistance to cracking and fatigue. Their low-carbon design ensures maximum distortion when heat treated, while the high nickel content increases corrosion resistance. Steel inserts are easily welded together, offering versatility in construction. These materials retain their mechanical properties even at elevated temperatures, providing reliability in harsh environments. Its durability and longevity make it cost-effective for critical applications..
Because of their extraordinary strength and heat resistance, Maraging Steel 250, 300, and 350 Sheets and Plates are frequently used in aerospace for parts like rocket engine mounts, aircraft landing gear, and structural frameworks. These steels are used in high-stress parts, combat gear, and missile systems in the defense industry. They are used in the automotive industry for die casting and injection molding tools, as well as for high-performance and racing parts. They are perfect for precision engineering and important industrial applications because of their exceptional dimensional stability, resistance to cracking, and mechanical dependability in harsh environments.
