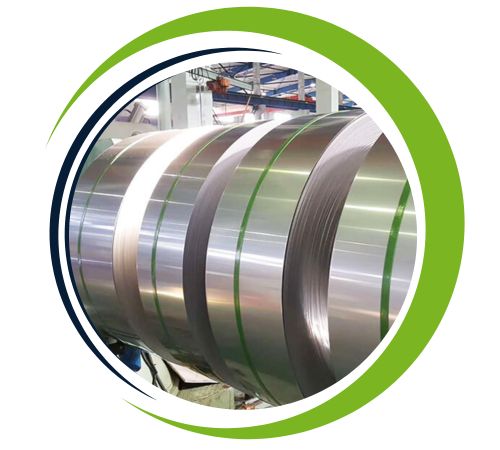

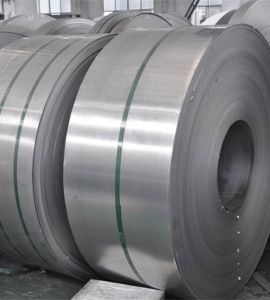

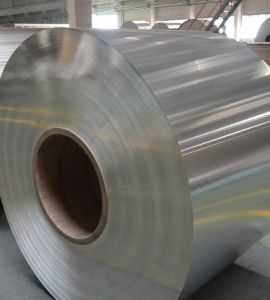

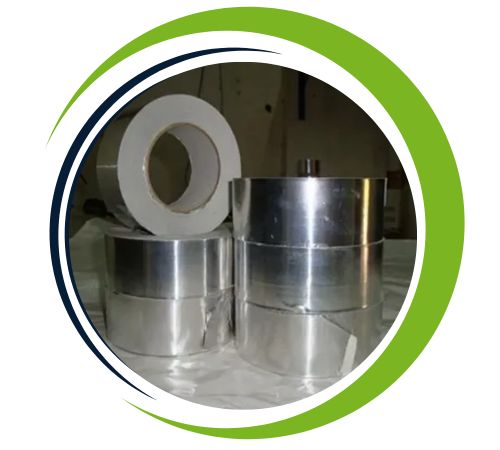

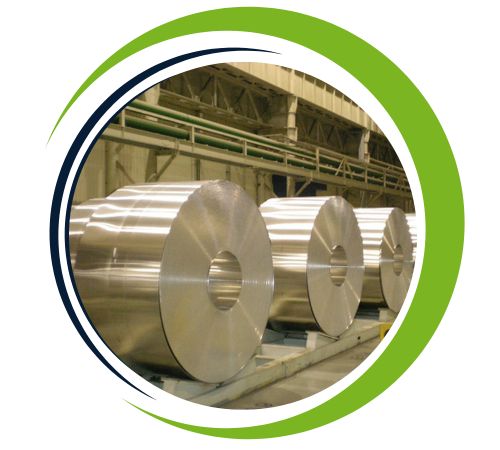

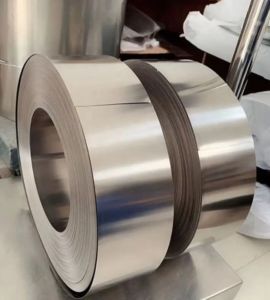

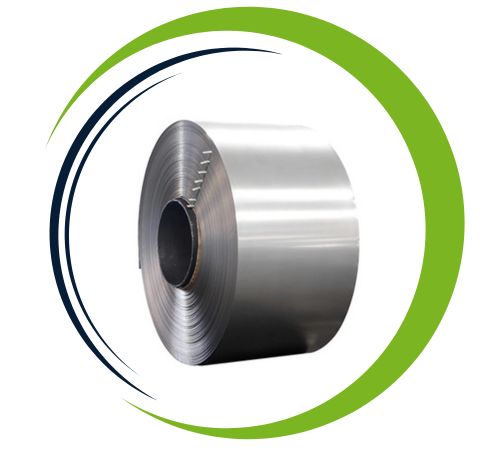

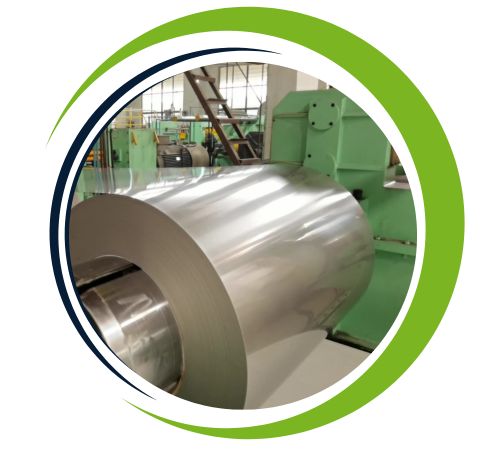

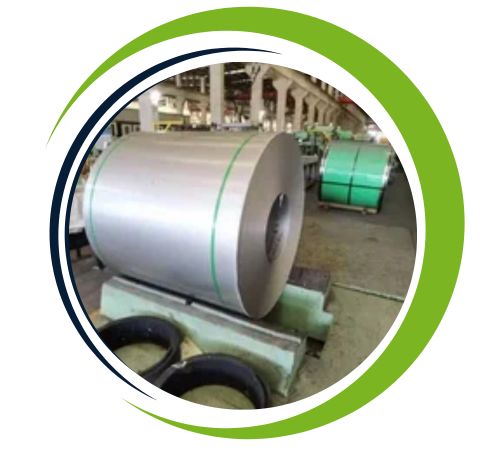

Premium-grade Monel 400 Coils and Slitting Coils made to function in extremely demanding and corrosive environments are available from Daksh Sheets and Plates, a well-known manufacturer and supplier with headquarters in Delhi, India. Our Monel 400 coils, which are made with premium raw materials and state-of-the-art processing techniques, are renowned for their exceptional precision, durability, and resistance to alkalis, acids, and seawater. These coils, which come in a variety of sizes and finishes, are perfect for the chemical, aerospace, and marine industries. In order to guarantee high dependability and client satisfaction, Daksh is dedicated to providing clients throughout India and international markets with customised solutions that are of the highest calibre and delivered on schedule.
About 63% nickel and 28–34% copper make up Monel 400, a nickel-copper alloy with trace amounts of silicon, iron, and manganese. Excellent corrosion resistance is offered by this composition in a variety of settings, such as seawater and acidic solutions. With tensile strengths between 480 and 620 MPa and yield strengths between 170 and 345 MPa, Monel 400 coils have a high mechanical strength. The alloy has exceptional resistance to stress corrosion, cracking, and pitting, and it retains its toughness and ductility at below-freezing temperatures. Additionally, it can be readily formed, welded, and slitted without losing its integrity.
Specifications : ASTM B127 / ASME SB127
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Coils, Shim Coils, Strip
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Coils and Slitting of Monel 400 Many industries that demand superior mechanical strength and corrosion resistance use coils. Heat exchangers, condensers, pump shafts, and seawater valves are examples of common marine equipment applications. They are utilised in the petrochemical and chemical industries for processing machinery that deals with alkalis, hydrofluoric acid, and sulphuric acid. Additionally, these coils are used in electrical connectors, oil refining systems, and aerospace components. Because Monel 400 can tolerate high temperatures and aggressive media, it can be used to fabricate welded assemblies, rolled goods, and custom-formed parts that are used in demanding operational settings.
