High-performance Monel K500 Angles are manufactured and supplied by Daksh Sheets and Plates, a reputable name in the metal industry with headquarters in Delhi, India. Daksh is renowned for producing alloy products that are long-lasting and resistant to corrosion. They also offer customised solutions for harsh industrial settings. Applications needing extraordinary strength and resistance to stress, chemical corrosion, and seawater are best suited for Monel K500 Angles. Supported by state-of-the-art production facilities, strict quality control, and prompt delivery, Daksh provides consistent quality and competitive pricing to a broad clientele in the chemical, oil and gas, marine, and aerospace industries.
For precipitation hardening, titanium (0.35–0.85%) and aluminium (2.3–3.15%) are added to the nickel-copper alloy known as Monel K500 Angle. Nickel (63% min), copper (27–33%), and trace amounts of iron, manganese, and carbon make up its composition. Compared to Monel 400, this produces a mechanical strength that is noticeably higher. It has an elongation of about 20%, a yield strength of about 790 MPa, and a tensile strength of up to 1100 MPa. When annealed, Monel K500 stays non-magnetic, which makes it perfect for high-stress and precision applications. It also maintains exceptional corrosion resistance, particularly in chemical and marine environments.
| Specifications | : | ASTM B865 / ASME B865 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |

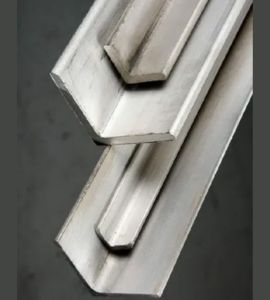

| Monel K500 Angle | : | 5mm to 9mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |

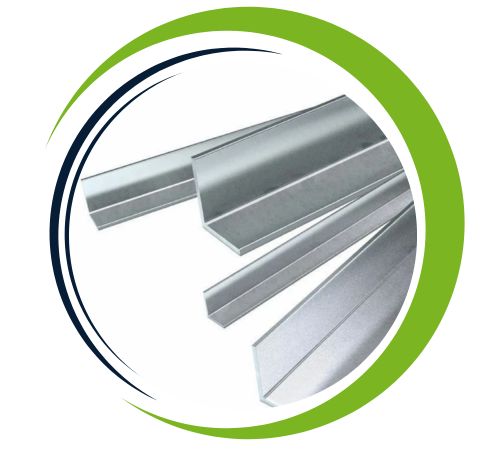

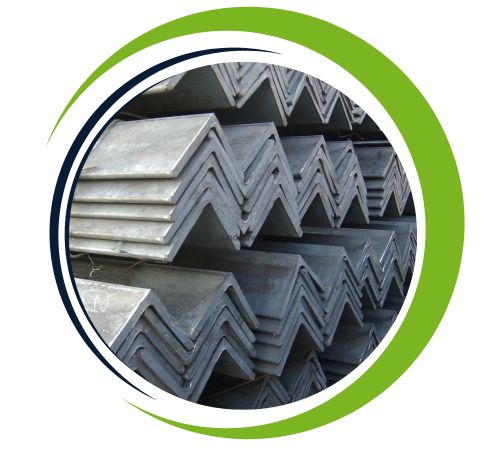

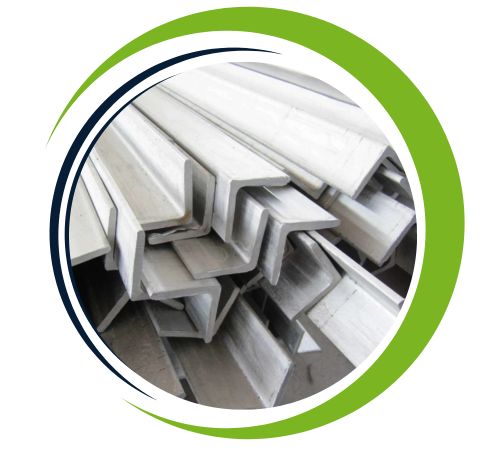

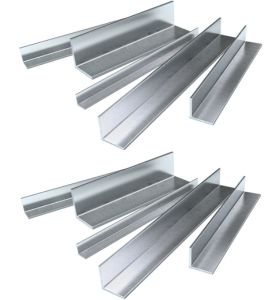

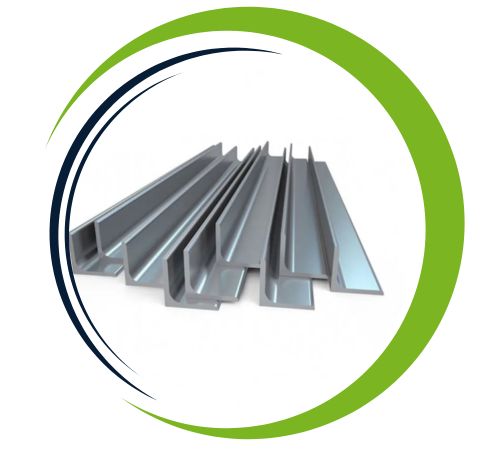

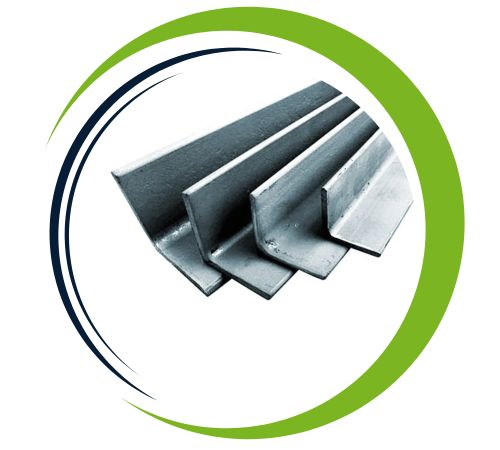

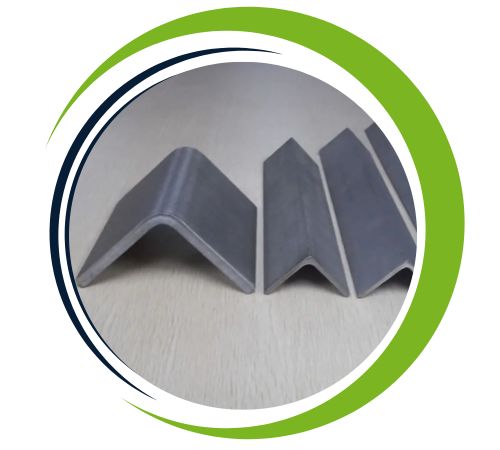

| Type | : | Angle, Architectural Angles, Equal Leg Angle, Unequal Leg Angle, Hot Rolled Steel Angle, Angle Bar |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel K500 | 0.25 max | 1.50 max | 0.5 max | 27.0-33.0 | 0.5 – 2 | 63.0 min | 0.010 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Monel K500 Angles to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | GOST | BS | EN |
| Monel k500 | 2.4375 | N05500 | – | – | – | – | – |
Industries needing high mechanical strength, corrosion resistance, and durability frequently use Monel K500 Angles. Because of their resistance to biofouling and saltwater, they are utilised in fasteners, pump shafts, and seawater valves in the maritime industry. They are used in downhole components, pressure-retaining parts, and drilling tools in the oil and gas industry. Monel K500 is utilised in aerospace for structural frames and turbine engine parts that are subjected to high temperatures and stress. Additionally, the alloy is perfect for pump impellers, springs, and chemical processing equipment. It is appropriate for instrumentation and defence applications due to its non-magnetic characteristics.
