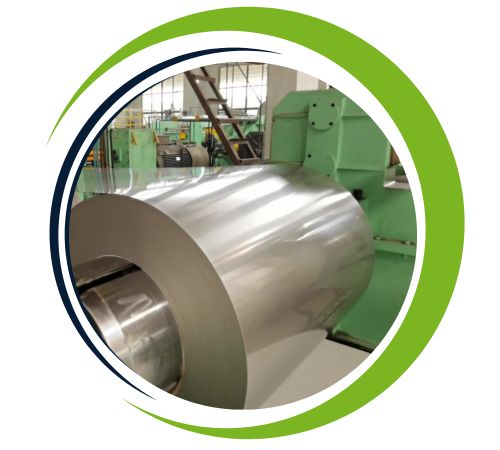

Based in Delhi, India, Daksh Sheets and Plates is a renowned producer and supplier of Monel K500 Coil/Slitting Coil, providing high-performance solutions for demanding industrial applications. Superior strength and resistance to corrosion are guaranteed by the use of premium-grade raw materials and international standards in the construction of our Monel K500 coils. These coils are well-known for their exceptional accuracy and longevity, making them perfect for high-stress situations. At Daksh Sheets and Plates, we prioritise quality, prompt delivery, and client satisfaction while serving a variety of domestic and foreign markets in the marine, chemical processing, oil and gas, and aerospace industries.
Tiny amounts of titanium and aluminium are added to the nickel-copper alloy Monel K500 to increase its strength through age-hardening. About 63% nickel, 27–33% copper, 2.3–3.15% aluminium, and 0.35–0.85% titanium are usually present. In addition to having a much higher tensile (up to 160 ksi) and yield strength than Monel 400, this alloy provides exceptional corrosion resistance, especially in chemical and marine environments. It is perfect for high-strength, corrosion-resistant applications because it maintains its ductility and toughness even at below-freezing temperatures and is resistant to erosion, stress-corrosion cracking, and corrosion.
Specifications : ASTM B127 / ASME SB127
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Coils, Shim Coils
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | GOST | BS | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 Slitting/Coil Coils are widely used in industries that need to be strong and resistant to corrosion, particularly in offshore and marine environments. Fasteners, oil well tools, valve parts, and pump shafts are among the applications. It is utilised in heat exchangers, processing equipment, and pressure vessels exposed to corrosive media in the chemical and petrochemical industries. Monel K500 is used in the aerospace and defence industries for crucial fasteners and structural elements. It is perfect for seawater valves and marine propeller shafts because of its resistance to high-velocity seawater. Its non-magnetic qualities are also advantageous in defence and delicate electronic applications.
