A reputable producer and supplier of premium sheets, plates, and structural metal products, Daksh Sheets and Plates is situated in Hyderabad, India. We provide top-notch materials designed for demanding applications to a variety of industries, with an emphasis on accuracy, robustness, and customer satisfaction. The Nickel Alloy 200 Angle is one of our most notable products; it is renowned for its remarkable mechanical strength, corrosion resistance, and dependability in harsh conditions. We provide reliable, high-performing solutions that satisfy our clients’ specific needs in a timely manner, regardless of whether they are for standard or customized specifications.

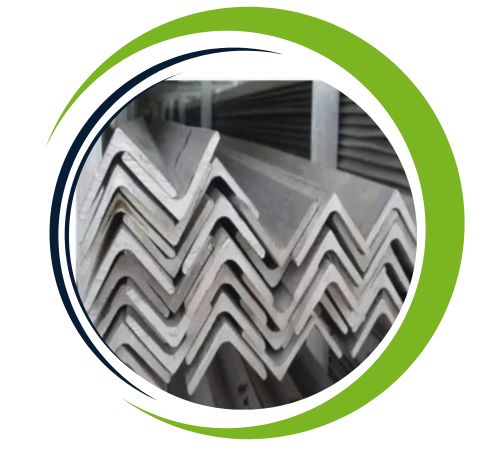

Nickel Alloy 200 Angle is a commercially pure wrought nickel alloy consisting of approximately 99% nickel, with minor additions of iron, copper, manganese, and carbon. It is recognized for its excellent corrosion resistance in both acidic and alkaline environments. Mechanically, the alloy provides a tensile strength of 380–550 MPa, yield strength of 170–275 MPa, and an elongation of 30–40%, offering outstanding ductility, toughness, and thermal/electrical conductivity. Its resistance to oxidation and stress makes it ideal for harsh operating conditions requiring both stability and strength.
Specifications : ASTM B160 / ASME SB160
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy 200 Angle offers excellent corrosion resistance, particularly against alkaline solutions, fresh water, and organic acids. Its high strength and durability make it ideal for harsh industrial environments, including chemical processing, marine, and aerospace applications. The alloy maintains its mechanical properties at elevated temperatures and resists oxidation, ensuring long-lasting performance. It also provides excellent weldability and formability, making fabricating various shapes easy. Its non-magnetic properties enhance its versatility in electronics and other precision applications, offering reliable performance in demanding conditions.
Industries that require chemical resistance, mechanical dependability, and thermal stability frequently use nickel alloy 200 angles. These include the electronics, aerospace, marine, and chemical processing sectors. They are especially useful in systems that are subjected to caustic environments, like those used in the production of synthetic fibers, alkali, and food processing machinery. They are also utilized in nuclear reactors, battery parts, and electrical applications because of their non-magnetic nature and resistance to stress corrosion cracking. Their usefulness in cryogenic and elevated-temperature settings is increased by their capacity to function over a wide temperature range.
