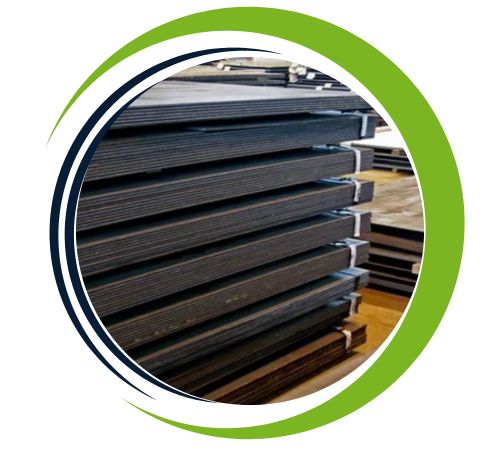

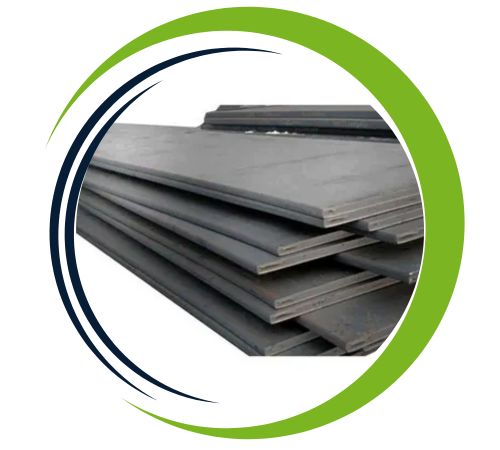

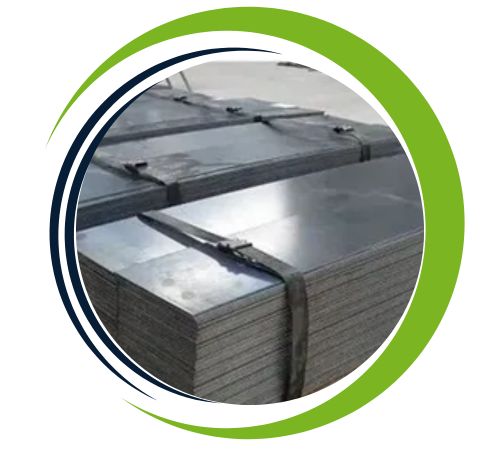

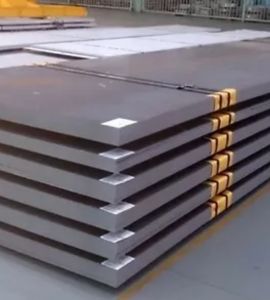

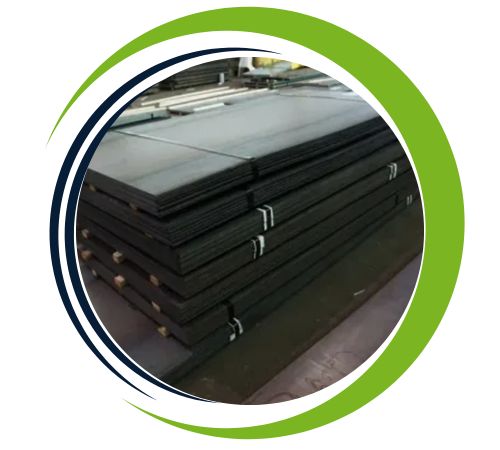

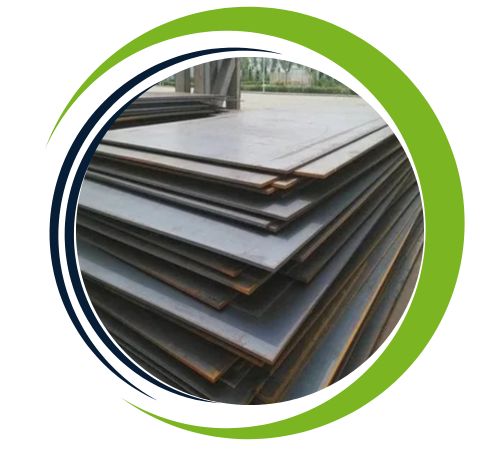

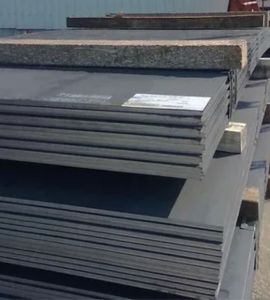

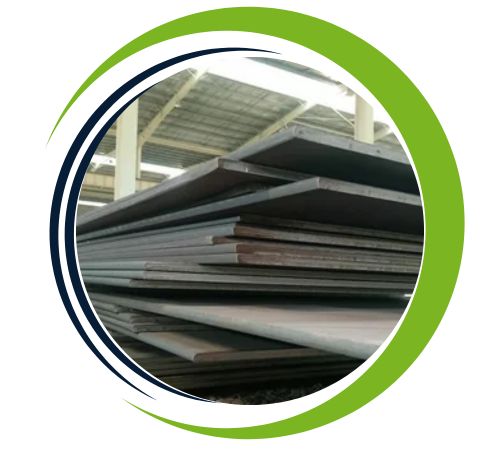

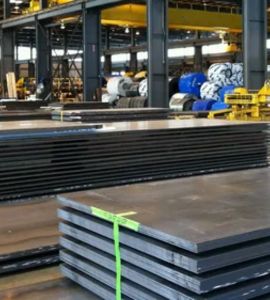

With its headquarters in Hyderabad, India, Daksh Sheets and Plates is a leading producer and supplier of high-performance metal sheets and plates dedicated to providing excellence in a variety of industries. The SA516 Gr 60–70 Dual TC Boiler Sheets and Plates, designed for high-pressure and high-temperature applications, are among our prestigious products. These plates are well known for their remarkable strength, excellent weldability, and strong resistance to corrosion. They serve vital industries like oil and gas, petrochemicals, and power generation and are made to exacting industry and safety standards. They are perfect for use in boilers, pressure vessels, and heat exchangers.
SA516 Gr 60–70 The main component of dual TC plates is carbon steel, which is alloyed with silicon, manganese, and trace amounts of phosphorus and sulfur. They meet the requirements for both Grade 60 and Grade 70 and are dual certified, providing dependability and versatility. While elongation values are normally between 21 and 23 percent, tensile strength varies from 415 to 585 MPa (Gr 60) to 485 to 620 MPa (Gr 70). These plates are perfect for pressure equipment that is subjected to demanding operating conditions because they also provide outstanding weldability, resistance to cracking, and impact toughness at low temperatures.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1500mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| Grades | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 60 | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 70N | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Grades | Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 60 | 485-620 (70-90) | 260 (38) | 17 | 21 |
| 70N | 485-620 (70-90) | 260 (38) | 17 | 21 |
| Grades | British Standard | European Norm | ASTM/ASME | DIN |
| 60 | BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| 70N | BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Gr 60-70 Dual TC Boiler Sheets and Plates offer exceptional strength, durability, and reliability, making them ideal for high-pressure and high-temperature applications. These plates provide excellent weldability and toughness, even in low-temperature conditions, ensuring structural integrity in critical environments. They exhibit superior resistance to corrosion and cracking, enhancing longevity and safety in boiler and pressure vessel operations. Dual test certifications ensure compliance with stringent industry standards, offering versatility across various industries such as oil and gas, power generation, and chemical processing. Their cost-effectiveness further adds to their appeal.
SA516 Gr 60–70 Dual TC Boiler Sheets and Plates are widely used in high-pressure settings where dependability and material strength are essential. Boiler, heat exchanger, and pressure vessel manufacturing are common uses in the oil and gas, petrochemical, chemical processing, and power generation industries. Safe operation in high-temperature and high-stress environments is ensured by their exceptional weldability, toughness, and resistance to thermal fatigue. These plates are an economical and effective option for businesses needing material compliance with both Gr 60 and Gr 70 standards because they also support dual-grade flexibility.
