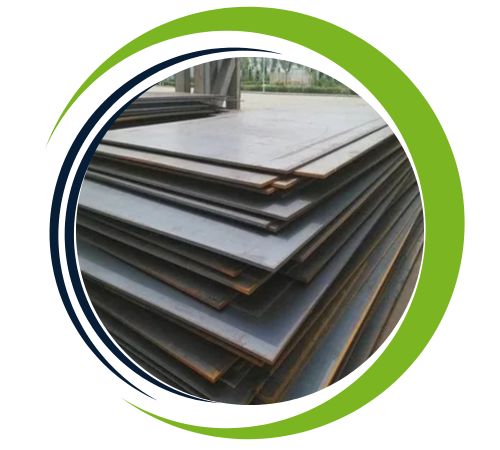

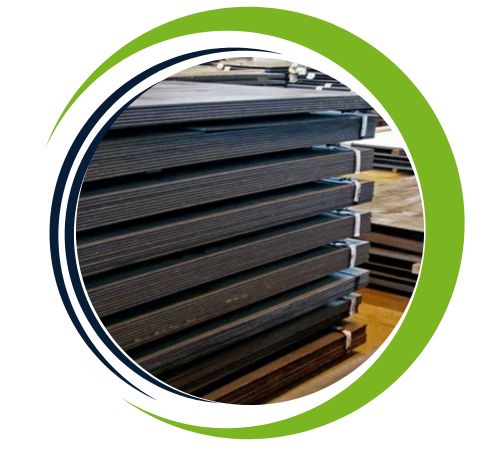

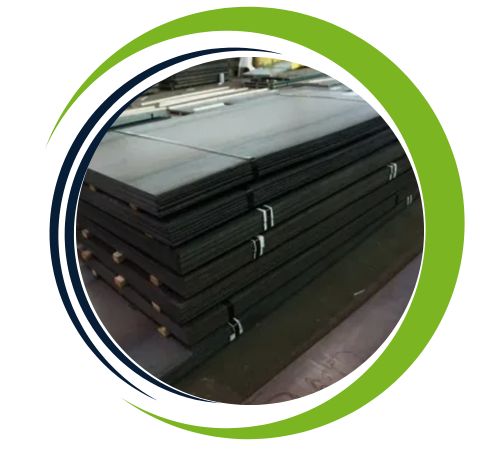

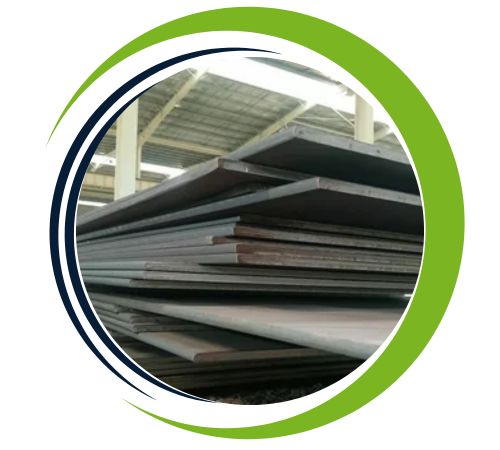

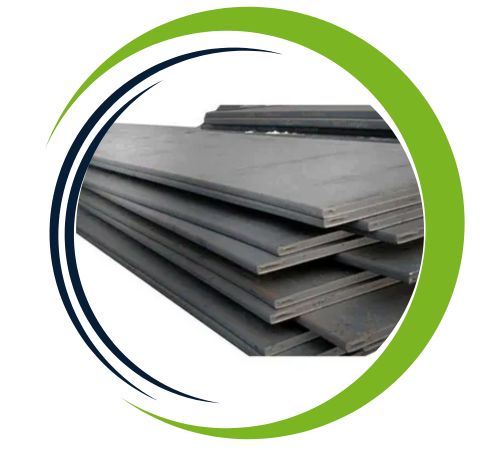

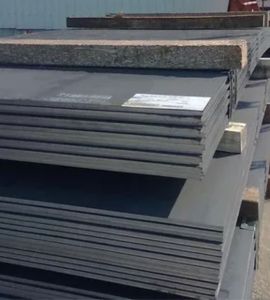

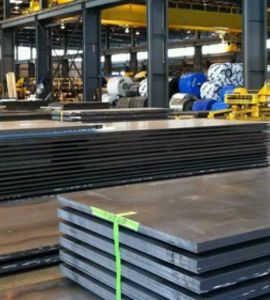

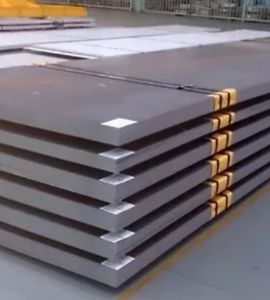

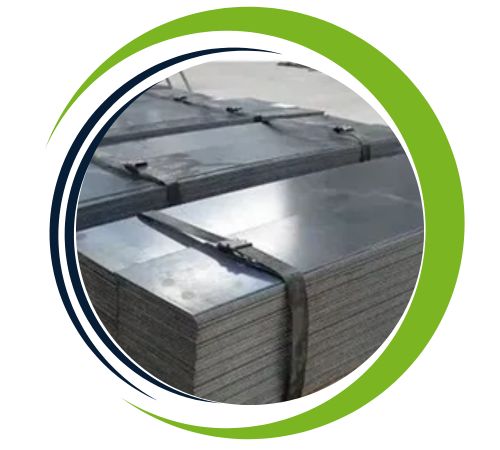

With its main office in Hyderabad, India, Daksh Sheets and Plates is a leading producer and supplier of premium steel sheets and plates, catering to both domestic and international markets. We provide materials designed for demanding applications because we are committed to providing excellence. The SA516 Grade 60 Boiler Sheet and Plate, one of our flagship products, is well-known for its exceptional strength, resilience to high pressure conditions, and durability. Power plants, refineries, and petrochemical facilities use this grade of carbon steel extensively for boiler and pressure vessel fabrication because it offers reliable performance, good weldability, and a long service life—even under harsh operating conditions.
Carbon steel plate SA516 Grade 60 is intended for use in pressure vessels and boilers. In order to guarantee dependability in high-temperature and high-pressure applications, its chemical composition is strictly regulated and normally consists of silicon, carbon, manganese, phosphorus, and sulfur. Tensile strength of 380–515 MPa (55–75 ksi), yield strength of 205 MPa (30 ksi), and elongation of 20% in 200 mm are among the mechanical characteristics. SA516 Grade 60 is well-known for its exceptional weldability, notch toughness, and resistance to hydrogen-induced cracking. It also exhibits dependable performance under moderate to severe service conditions.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Grade 60 boiler sheet and plate offer excellent strength and durability, making them ideal for pressure vessel and boiler applications. Known for their resistance to cracking, they are highly effective in high-temperature and high-pressure environments. The steel’s weldability and ease of fabrication further enhance its versatility. Its ability to withstand moderate to high stress levels without compromising performance makes it suitable for power generation and chemical industries. SA516 Grade 60 also offers good toughness, making it reliable for long-term use in demanding applications.
For applications needing strength and durability, SA516 Grade 60 Boiler Sheets and Plates are frequently used in the construction of storage tanks, boilers, and pressure vessels. They are widely used in petrochemical facilities, chemical processing industries, oil and gas refineries, and power generation plants. Reactors, heat exchangers, drums, and piping systems can all be made with this grade of steel because it works especially well in conditions with high temperatures and pressures. Long-term structural integrity and performance in crucial pressure-retaining applications are guaranteed by its exceptional corrosion resistance, formability, and durability.
