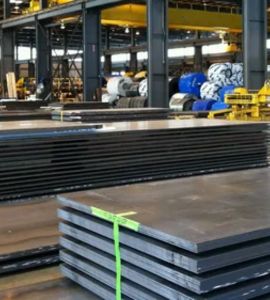

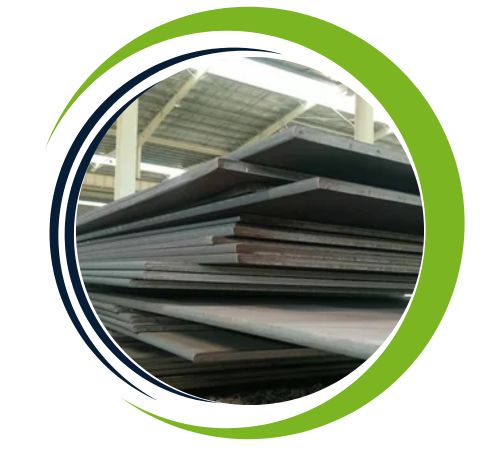

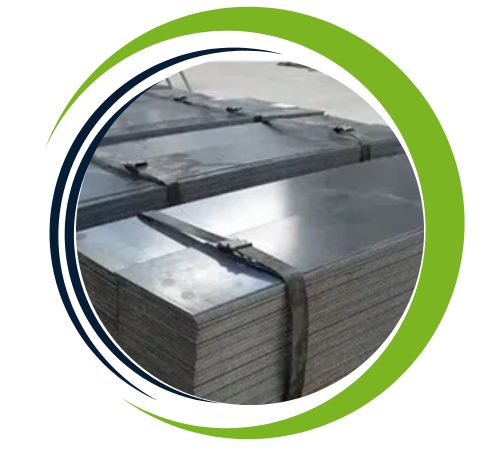

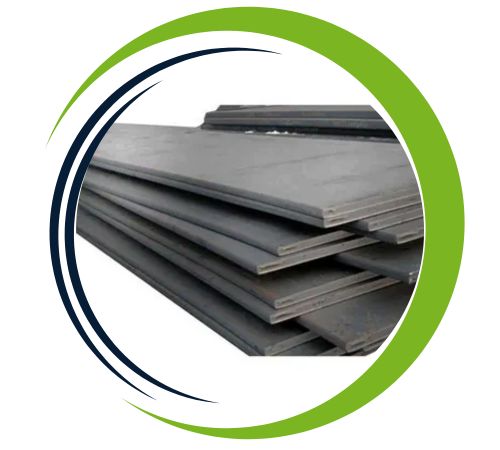

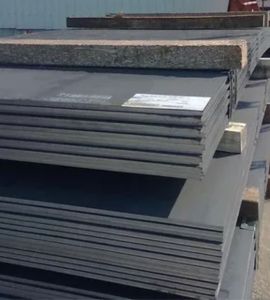

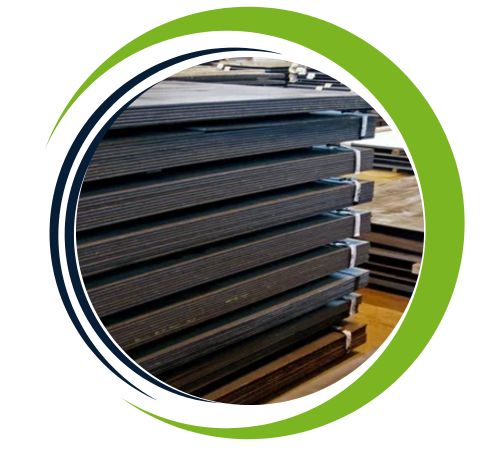

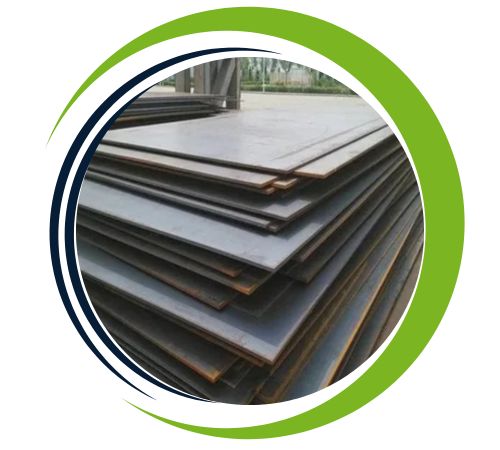

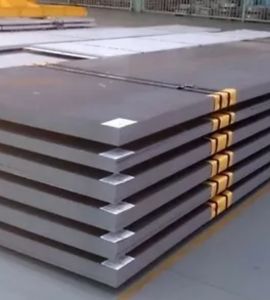

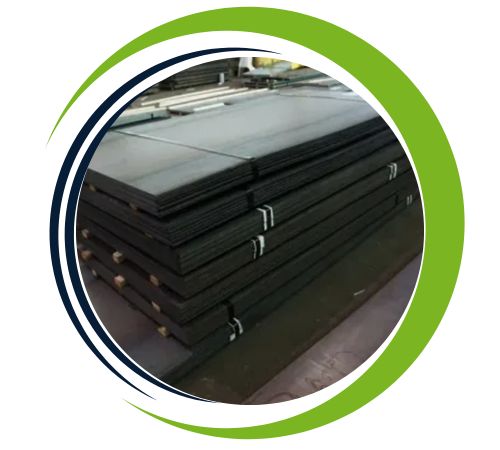

With its main office in Hyderabad, India, Daksh Sheets and Plates is a reputable brand in the production and distribution of high-quality metal sheets and plates. Our specialty is SA516 Grade 70 Boiler Sheets and Plates, which are designed to function dependably in high-temperature and high-pressure settings. These carbon steel plates are perfect for demanding applications because of their reputation for accuracy, longevity, and adherence to global standards. Daksh Sheets and Plates, which serves the oil and gas, power generation, and chemical processing industries, is dedicated to providing excellence through technical know-how, quality control, and customer-focused solutions.
Carbon steel plate SA516 Grade 70 is mostly utilized in equipment that is subjected to pressure. Carbon (≤0.27%), manganese (0.85–1.20%), silicon (0.15–0.40%), and phosphorus and sulfur (maximum of 0.035% each) make up its chemical composition. The material has a minimum elongation of 21% in 200 mm gauge length, a minimum yield strength of 260 MPa, and a tensile strength between 485 and 620 MPa. It is appropriate for the fabrication of boilers and pressure vessels due to its exceptional weldability, impact resistance, and crack resistance.
Grade : ASME SA 516 GR.70 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3 – 200 mm/ dimensions up to 4.000 mm
Length : 3000mm-11000mm.
Production : Hot-Rolled (HR)
Heat Treatment : Rolled/Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-490A/B | EN10028 P355GH | A/SA515 – Grade 70 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Grade 70 Boiler Sheet and Plate offer outstanding advantages, making them ideal for pressure vessels and boilers. They provide excellent strength and durability, ensuring long-term reliability under high pressures and temperatures. Their superior notch toughness enhances performance in low-temperature applications. These plates exhibit exceptional weldability and formability, enabling ease of fabrication. Their high resistance to corrosion and cracking ensures longevity, even in harsh environments. Certified to ASTM standards, they are cost-effective and widely used in industries like oil, gas, and petrochemical processing for consistent performance and quality assurance.
High-pressure vessels, boilers, and heat exchangers in industries like oil and gas, chemical processing, and power generation make extensive use of SA516 Grade 70 Boiler Sheets and Plates. They are perfect for dealing with extreme pressure and temperature fluctuations because of their high tensile strength, toughness, and thermal resistance. In order to ensure long-term structural integrity, these plates are also used in the construction of condenser systems, reactors, and storage tanks. They are also appropriate for shipbuilding and structural engineering because of their superior weldability and resistance to corrosion, providing durability and safety in demanding industrial settings.
