One of the top producers and suppliers of stainless steel 13-8 PH sheets and plates is Daksh Sheets and Plates, which has its headquarters in Delhi, India. Our speciality is providing high-performance alloys that are suited to the particular requirements of industrial, military, and aerospace applications. Superior strength, high toughness, and outstanding resistance to stress corrosion cracking are all provided by our 13-8 PH stainless steel sheets. We guarantee consistent product performance and customer satisfaction with our state-of-the-art production facilities and stringent quality checks. For precision stainless steel products that are perfect for both standard and specialised engineering needs and are made to exacting mechanical and metallurgical standards, rely on Daksh.
About 13% chromium and 8% nickel make up the precipitation-hardenable stainless steel alloy known as stainless steel 13-8 PH. Additionally, it contains trace amounts of aluminium for heat treatment strengthening. High strength, outstanding transverse toughness, and exceptional resistance to stress corrosion cracking are all displayed by this alloy. It is appropriate for demanding load-bearing applications because of its tensile strengths, which can reach up to 1400 MPa. The material offers good fabricability and weldability and can be heat treated to reach desired strength levels. It is perfect for structural aerospace and military components due to its mechanical dependability.
| Specifications | 1.4534.9 | UNS S13800 | AMS 5629 |
| Item: | Stainless Steel Plates (Hot rolled, cold rolled) |
| Standard: | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Surface: | The surface and finish of Stainless-Steel Plates: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Width: | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length: | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness: | 0.3~10.0mm |

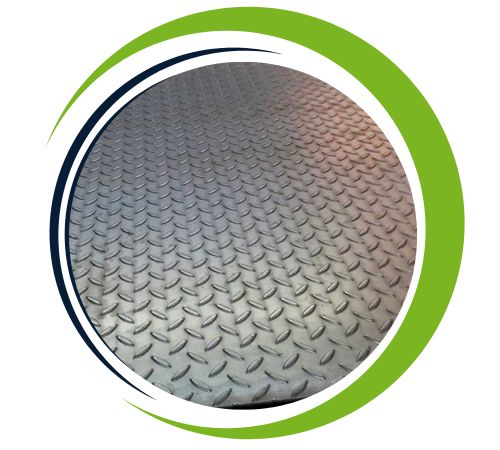

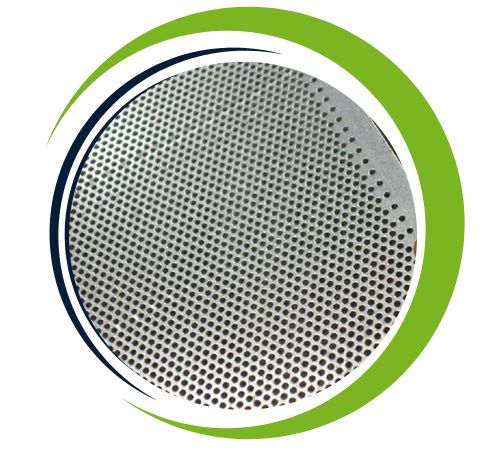

| Form: | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| End: | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Cr 12.25 – 13.23% | Ni 7.50 – 8.50% | Mo 2.00 – 2.50% | Al 0.90 – 1.35% | N 0.010% | |||||
| Mn 0.10% | Si 0.10% | C 0.05% | P 0.010% | S 0.008% |
| Tensile (UTS)N/mm² | 0.2% YieldN/mm² | Elongation(50.8mm) %) | HardnessHRc | Reductionof Area |
| 1965 | 1896 | 2 | 57 | 10 |
| Alloy | UNS Number | WERKSTOFF NR. |
| 13-8 PH | UNS S13800 | 1.4534 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 13-8 PH sheets and plates offer many benefits, including high strength, good corrosion resistance and outstanding hardness. Their ability to resist stress corrosion cracking makes them ideal for complex applications in the aerospace, marine, and nuclear industries. These sheets and plates are very durable, perform well in high-pressure and extreme-temperature environments, and maintain consistent mechanical properties They can be easily welded and machined, providing a variety of options a they are used for many purposes. By serving long life and reliability they are a cost-effective solution for critical applications that require precision and durability.
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| Stainless Steel 13-8 PH PH 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |
| 2R – Stainless Steel 13-8 PH Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 13-8 PH Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 13-8 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 13-8 PH Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 13-8 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 13-8 PH Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 13-8 PH Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |

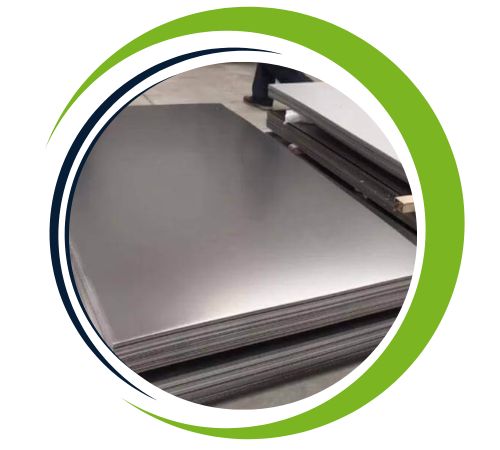

| Stainless Steel 13-8 PH Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
Yes, we offer custom sizes for Stainless Steel 13-8 PH Sheet and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
13-8 PH Stainless Steel In the petrochemical, marine, and aerospace industries, where strength and resistance to corrosion are crucial, sheets and plates are widely used. They are perfect for fasteners, valves, hydraulic fittings, and aircraft landing gear. The alloy is appropriate for high-tech manufacturing and defence structural components due to its exceptional toughness and high mechanical properties under stress. It is frequently utilised in chemical and nuclear reactors and operates dependably in high-pressure settings. Precision engineering tasks that demand critical performance and dimensional stability under a variety of operating conditions are also supported by its exceptional machinability and hardenability.
