In Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of stainless steel 15-5 PH sheets and plates. We serve the various demands of industrial sectors throughout the country with a strong emphasis on quality, durability, and accuracy. Our 15-5 PH stainless steel sheets are renowned for their exceptional mechanical qualities, ease of fabrication, and exceptional resistance to corrosion. Our products are produced under strict quality controls to meet international standards, whether they are for general engineering use or aerospace. For all stainless steel solutions, Daksh Sheets and Plates guarantees prompt delivery and constant quality.
The typical composition of stainless steel 15-5 PH, a martensitic precipitation hardening alloy, is 15% chromium and 5% nickel. It has exceptional mechanical strength and toughness in both longitudinal and transverse directions, and it contains trace amounts of copper. It has good corrosion resistance and a tensile strength of up to 1380 MPa. Additionally, the alloy has good fabricability and minimal distortion. Heat treatment can harden it, giving it excellent ductility, high strength, and resistance to stress corrosion and cracking.
| SS 15-5PH Sheet Plate Grade | SS 15-5 PH / WNR 1.4545 / UNS S15500 |
| SS 15-5 PH Sheet Plate | ASTM A240 / ASME SA240 |

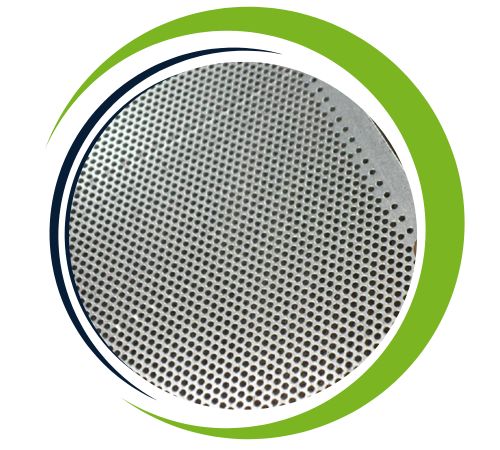

| Steel 15-5PH Sheet Plate Type | Sheet, Plates, Flat, Coils, Ring, Shim Sheet, Strips, Checkered Plate, Circle, Perforated Sheet, Profile, Blank. |
| SS 15-5 PH Sheet Plate Size Range | 1220mm x 2440mm, 1000 mm x 2000mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1250mm x 2500mm & Cut Pieces |
| UNS S15500 Steel 15-5PH Plate Finish | SATIN (Met with Plastic Coated), Hot Rolled Plate (HR), Cold Rolled Sheet (CR), 2B, 2D, BA NO(8) |
| Steel 15-5 PH Sheet Hardness | Hard, Spring Hard, Half Hard, Quarter Hard, Soft, etc. |
| SS 15-5 PH Sheet Plate Thickness | 0.1 MM TO 300 MM |
| SS 15-5PH Plate & Sheets Surface Finish | Brushed Finish, No.8 Finish, Brush, No.1 Finish, 2D Finish, 2B Finish, Hair Line Finish, Checkered, BA Finish, No.4 Finish, Etching Finish, Mirror Finish, Sand Blast, 8K Finish, Embossed Finish, etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| STANDARD | UNS | WNR. |
| SS 15-5PH | S15500 | 1.4545 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 15-5 PH sheets and plates offer many benefits, including high strength, hardness, and corrosion resistance, making them ideal for high-performance applications Their high hardness and fatigue resistance enable them withstand extreme conditions such as high pressure and temperature. The ability to heat-treat the alloy into the desired mechanical properties enhances versatility is included. In addition, a pH of 15-5 exhibits excellent weldability and machinability, making it easy to manufacture. It is commonly used in the aerospace, chemical and marine industries due to its strength balance, corrosion resistance and durability in harsh environments
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| Stainless Steel 15-5 PH 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |
| 2R – Stainless Steel 15-5 PH Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 15-5 PH Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 15-5 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 15-5 PH Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 15-5 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 15-5 PH Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 15-5 PH Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |

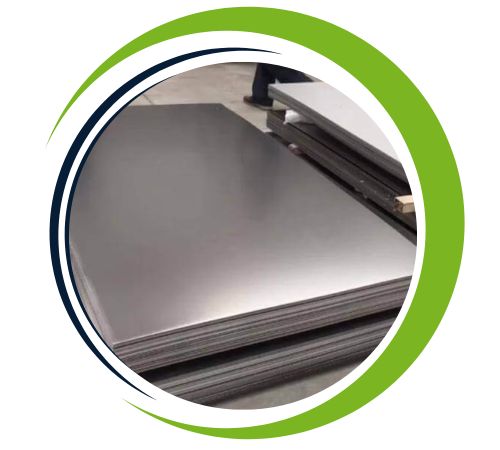

| Stainless Steel 15-5 PH Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
Yes, we offer custom sizes for Stainless Steel 15-5 PH Sheet and Plates to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
Because of their strength and resistance to corrosion, stainless steel 15-5 PH sheets and plates are used extensively in the nuclear, petrochemical, and aerospace industries. They are perfect for gears, shafts, valve parts, structural elements, and other precisely engineered objects. The alloy is appropriate for high-pressure and high-temperature applications due to its excellent mechanical performance under harsh service conditions. It is also frequently used in the production of vital marine equipment and aircraft components due to its simple machinability and weldability. Because of its dependability in challenging conditions, this material is also used in the energy and defence industries.
