Located in Hyderabad, India, Daksh Sheets and Plates is a well-known producer and supplier of premium metal products made to satisfy the exacting requirements of different industries. The Stainless Steel 17-4 PH Angle, which is renowned for its remarkable strength, resistance to corrosion, and long-term dependability, is one of their many products. These angles are perfect for structural applications in high-performance settings because they are precisely engineered and produced in accordance with international standards. Daksh Sheets and Plates provides metal solutions that can withstand the most demanding industrial challenges, catering to both domestic and international markets with a dedication to quality, durability, and customer satisfaction.

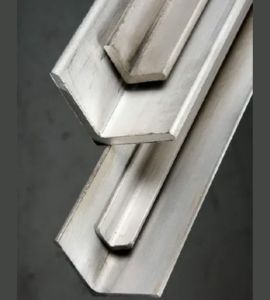

Iron makes up the majority of the precipitation-hardening alloy stainless steel 17-4 PH Angle, which also contains small amounts of niobium, nickel, copper, and 15–17% chromium. Excellent strength, hardness, and corrosion resistance are all provided by this composition. The alloy has a yield strength of 620–830 MPa (90–120 ksi) and a tensile strength of 690–1100 MPa (100–160 ksi). Depending on the heat treatment, the alloy’s hardness ranges from 35 to 45 HRC. It is a flexible option for crucial applications because it can withstand stress corrosion cracking and works well in high-temperature and chemical environments.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness: 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | P | Si | Ni | Cu | Fe | Mn | S | Cr | Cb+Ta |
| SS 17-4 PH | 0.07 | 0.04 | 1.0 max | 3.0 – 5.0 | 3.0 – 5.0 | Bal | 1.0 max | 0.03 | 15.0 – 17.5 | 5 X C / 0.45 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 17-4 PH angle (Precipitation Hardening) surface offers several advantages. It combines high strength with excellent corrosion resistance, especially in harsh environments such as chemical and marine applications. Its excellent room and high temperature mechanical properties make it ideal for aerospace, the oil and gas industry and food processing. The alloy also exhibits improved stability and resistance to stress corrosion cracking. Moreover, 17-4 PH stainless steel is easily machined and can be heat-hardened, providing flexibility in a variety of industrial applications and providing durability and versatility it is reliable in complex materials.
In the nuclear, medical, marine, and aerospace industries where corrosion resistance and mechanical strength are essential, stainless steel 17-4 PH Angle is widely used. Shafts, valves, gears, fasteners, structural frames, and turbine parts are all made with it. It is appropriate for use in heat exchangers, pressure vessels, and chemical plants due to its resistance to pitting, crevice corrosion, and high-temperature oxidation. Because of its resilience to corrosive and dynamic environments, the material can be used in industrial and military hardware that requires high performance over long service cycles and precise engineering.
