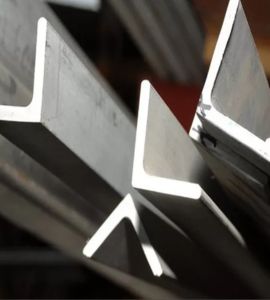

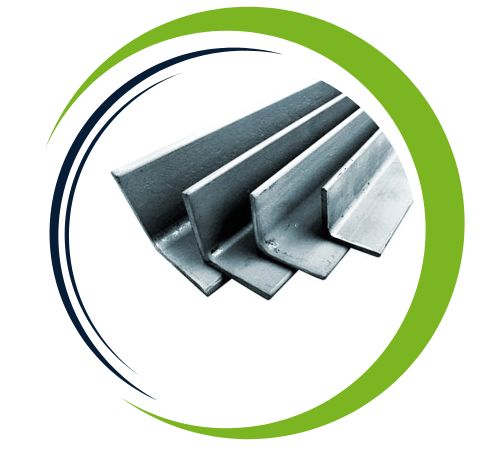

Based in Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of 202-inch stainless steel angles, providing products that are both strong and reasonably priced. Our SS 202 angles are made with high-quality raw materials and state-of-the-art technology to guarantee corrosion resistance, dimensional accuracy, and longevity. These angles are frequently utilised in the commercial and industrial sectors and are perfect for structural and architectural applications. Daksh has emerged as a leading provider of stainless steel solutions for a range of infrastructure and fabrication requirements in India and worldwide markets by emphasising quality, customisation, and prompt delivery.
Stainless Steel 202 is an austenitic alloy that contains a high manganese content (7.5–10%), 4–6% nickel, and roughly 17–19% chromium. Additionally, it has a maximum carbon content of 0.15%. With a tensile strength of 515–750 MPa and respectable ductility, SS 202 angles provide good mechanical strength. It works well in mild environments but is not as resistant to corrosion as SS 304. Its increased manganese and nitrogen content improves toughness and work hardening qualities. SS 202 is appropriate for general-purpose structural applications because it is also formable and weldable.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Stainless steel 202 angles are frequently utilised in applications where cost and strength are crucial considerations. Support systems, railing brackets, frames, doors, window reinforcements, and structural frameworks are among the frequently used applications. In addition, they work on domestic construction projects, industrial platforms, furniture, and transportation. SS 202 angles are appropriate for indoor or outdoor use in non-aggressive climates because they function well in moderately corrosive environments. They are a common option for fabrication and architectural decoration because of their superior machinability and smooth surface. For light to medium-duty structural applications, these angles offer a strong and affordable option.
