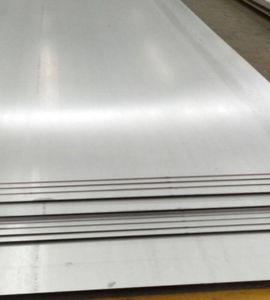

Located in Delhi, India, Daksh Sheets and Plates is a reputable manufacturer and supplier of stainless steel 253MA sheets and plates, providing materials designed for extremely high temperatures. Austenitic stainless steel SS 253MA combines high strength, good corrosion resistance, and exceptional oxidation resistance. Daksh guarantees reliable quality, accurate cutting, and adaptable choices to accommodate a variety of industrial uses. These plates are ideal for sectors that need reliable performance at high temperatures, like heat treatment, cement, power generation, and metallurgy.
20–22% chromium, 10–12% nickel, 0.14–0.20% nitrogen, and trace amounts of rare earth metals for increased oxidation resistance make up 253MA stainless steel. It has a yield strength of about 310 MPa and a tensile strength of about 600 MPa. Up to 1150°C, the material retains its strength and resistance to oxidation. It is perfect for high-temperature industrial processes because it offers good structural stability and resistance to nitridation, sulfidation, and carburisation.
| Grade | 253 MA| UNS S30815 |
| Standard | ASTM A240 / ASME SA240 |
| Thickness | 0.1mm To 100 mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |

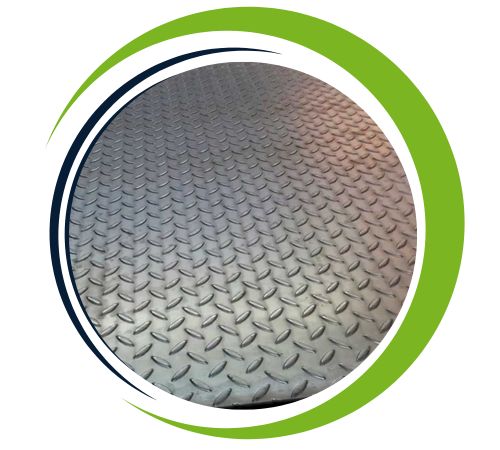

| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Applications | Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry |
| Grade | C | Mn | Si | S | Ce | Ni | Cr | P |
| 253 MA | 0.05 – 0.10 | 0.80 max | 1.40 – 2 | 0.030 max | 0.03 – 0.08 | 10 – 12 | 20 – 22 | 0.040 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | MPa -600 | MPa – 310 | 40 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Surface finish | Thickness (in) | Width (in) |
|---|---|---|
| 1 – Stainless Steel 253 MA Hot rolled, heat treated, pickled Plate & Sheet | .1000 – .3750 | max. 72 |
| 2R – Stainless Steel 253 MA Cold-rolled, bright-annealed Sheet & Plate | 0.002–0.06 | 0.118–25.551 |
| 2H – Stainless Steel 253 MA Work hardened Plate & Sheet | 0.002–0.06 | 0.118–24.803 |
| 2B – Stainless Steel 253 MA Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 10–24 | max. 72* |
| 2D – Stainless Steel 253 MA Cold rolled, heat treated, pickled Plate & Sheet | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Deco Rolled-On Mexinox only | 14–28 | max. 48 |
| Stainless Steel 253 MA Polished Plate & Sheet (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
| STANDARD | WERKSTOFF NR. | UNS | SS | EN |
| 253 MA | 1.4835 | S30815 | 2368 | X9CrNiSiNCe21-11-2 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS / COILS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
SS 253MA Because of their remarkable resistance to oxidation and thermal fatigue, sheets and plates are widely used in kilns, furnace components, and heat treatment industries. They are perfect for heat exchangers, recuperators, radiant tubes, and burner tubes. They are utilised in riser ducts, conveyor belts, and roller hearth furnaces in the cement and petrochemical sectors. They are also appropriate for incinerators and power plant exhaust systems due to their high temperature and creep resistance. In any application where resistance to extreme heat and a long service life are essential, SS 253MA is recommended.
