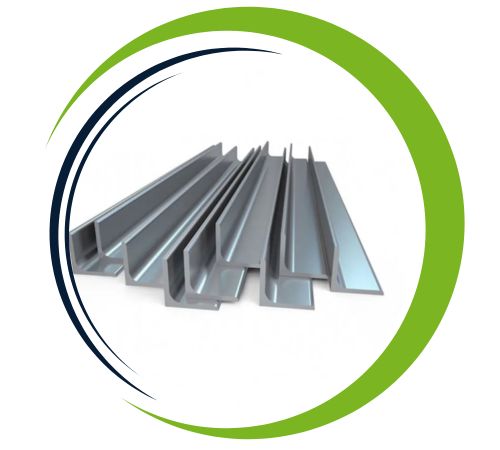

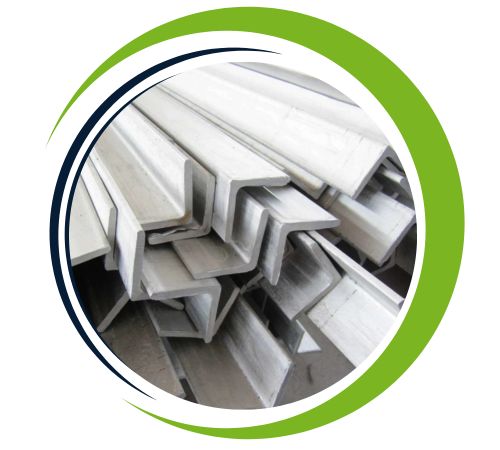

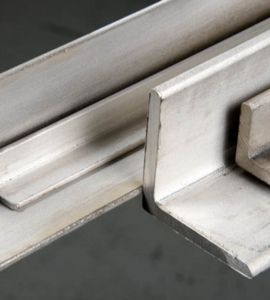

One of the top producers and suppliers of stainless steel 301 angles, Daksh Sheets and Plates is based in Delhi, India, and is renowned for its strength, quality, and adaptability. To guarantee outstanding mechanical qualities and dimensional accuracy, our SS 301 angles are made with premium materials and meticulous manufacturing techniques. These angles are perfect for industrial, automotive, and structural applications because of their high strength and work-hardening properties. With a strong emphasis on client satisfaction and product dependability, Daksh offers stainless steel solutions that satisfy a variety of client needs. We offer custom sizes, competitive pricing, and prompt delivery both domestically and abroad.
The austenitic chromium-nickel alloy known as stainless steel 301 has a maximum carbon content of 0.15%, 16–18% chromium, and 6–8% nickel. Because of its composition, the alloy can achieve good ductility and high tensile strength (up to 930 MPa when cold worked). Excellent formability, work hardening, and moderate corrosion resistance are characteristics of SS 301 angles. In the annealed state, they are non-magnetic, but cold working makes them more magnetic. The alloy is appropriate for high-strength, lightweight structural components because it retains good weldability and oxidation resistance.
| Specifications | ASTM A276 / ASME SA276 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Angles Size | 20mm to 200mm |
| Angle Thickness | 3mm to 12mm |
| Angles Length | Upto 6 Meters Long |
| Angles Types | Equal, Unequal, L Angle, Equal Leg Angle, Unequal Leg Angle, Hot Rolled Angle, Angle |
| ELEMENT | C | Mn | P | S | Si | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| SS 301 | 0.150 max | 2.00 max | 0.045 max | 0.030 max | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | 0.10 |
| SS 301L | 0.03 max | 2.00 max | 0.045 max | 0.030 max | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | 0.02 |
| Grade | Tensile Strength ksi (min.) | Yield Strength 0.2% ksi (min.) | Elongation -% in 50 mm (min.) |
|---|---|---|---|
| SS 301 | 185 | 140 | 9 |
| SS 301L | 550 | 220 | 45 |
| STANDARD | WERKSTOFF NR. | UNS | JIS |
|---|---|---|---|
| SS 301 | 1.4310 | S30100 | SUS 301 |
| SS 301L | – | S30103 | SUS 301L |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Applications needing high strength, formability, and moderate corrosion resistance frequently use stainless steel 301 angles. Structural supports, industrial enclosures, automobile trim, railway parts and aerospace structures are among the common applications. They are perfect for load-bearing structures and mechanically stressed systems because of their exceptional strength-to-weight ratio. Additionally, SS 301 angles are employed in construction, architecture, and equipment manufacturing. They are preferred in forming-intensive processes because of their capacity for cold-working. They are appropriate for both commercial and industrial fabrication projects due to their strength, longevity, and visual appeal.
