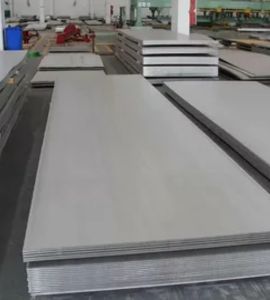

With pride, Daksh Sheets and Plates manufactures and distributes stainless steel 304H sheets and plates from Delhi, India, for use in high-temperature and high-pressure applications. A high-carbon version of SS 304, SS 304H provides increased strength at higher temperatures. Daksh’s products are ideal for vital industries like heat exchangers, power generation, and petrochemicals because of their exceptional finishing, dimensional accuracy, and durability. Daksh prioritises quality to guarantee dependable materials that satisfy exacting national and international standards.
18–20% chromium, 8–11% nickel, and a higher carbon content of 0.04–0.10% are all present in stainless steel 304H. Its strength and heat resistance are increased by the higher carbon content. In addition to having good elongation and hardness up to 201 HB, it has a tensile strength of 585 MPa and a yield strength of 240 MPa. At temperatures as high as 800°C, SS 304H maintains its exceptional oxidation resistance and structural integrity, making it appropriate for high-heat settings. It improves high-temperature creep resistance while preserving the traditional corrosion resistance of austenitic stainless steels.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |

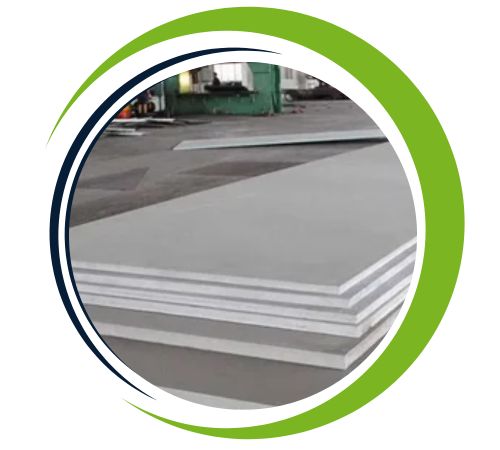

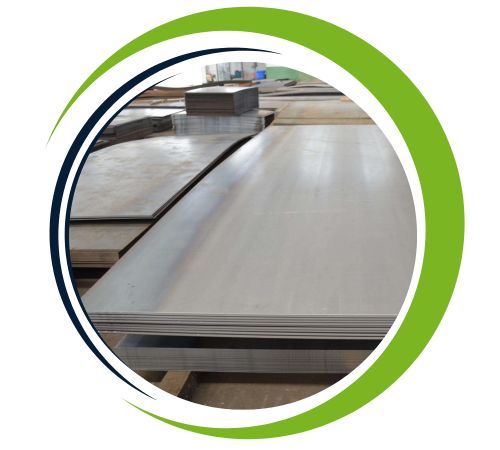

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304H | 1.4948 | S30409 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
In high-temperature service settings like heat exchangers, boilers, pressure vessels, and piping systems, stainless steel 304H sheets and plates are frequently utilised. They are also present in furnace parts, refinery components, and equipment used in chemical processing. They are perfect for power plants, superheater tubes, and heat treatment trays because they maintain their strength at high temperatures. Exhaust manifolds and other parts that experience thermal cycling also use the material. When mechanical strength and corrosion resistance are crucial for prolonged exposure to heat stress, SS 304H is selected.
