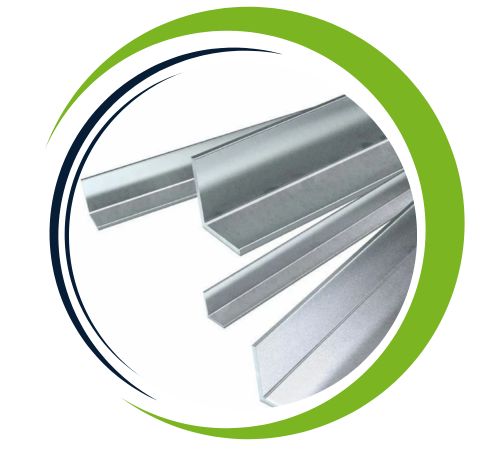

Based in Delhi, India, Daksh Sheets and Plates is a top producer and supplier of stainless steel 304L angles. We are well-known for producing high-quality stainless steel products, and we provide SS 304L angles with exceptional strength, weldability, and corrosion resistance. Our angles are precisely manufactured with premium raw materials and cutting-edge techniques, guaranteeing durability and dimensional accuracy even in demanding applications. These angles of low-carbon stainless steel are particularly appropriate for welded structures where resistance to corrosion is essential. Daksh provides specialised sizes, prompt delivery, and dependable support to satisfy a range of structural needs for industries in India and abroad.
A low-carbon version of stainless steel 304, stainless steel 304L has a maximum carbon content of 0.03% and is made up of 18–20% chromium and 8–12% nickel. Because there is less chance of carbide precipitation during welding due to the lower carbon content, welded structures are more resistant to corrosion. With exceptional ductility and toughness, SS 304L angles have a tensile strength of 485–620 MPa and a yield strength of 170–240 MPa. The alloy is appropriate for both structural and corrosive service environments because it is highly weldable, non-magnetic when annealed, and retains its mechanical integrity over a broad temperature range.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 304L Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
The corrosion resistance and structural performance of stainless steel 304L angles make them popular in industries like chemical processing, construction, food and beverage, pharmaceuticals, and marine. Frames, supports, pipelines, architectural structures, and equipment enclosures are examples of common applications. They are perfect for welding applications where corrosion resistance at weld joints is essential due to their low carbon content. Heat exchangers, cleanroom buildings, and storage tanks also use SS 304L angles. They are appropriate for both indoor and outdoor structural and decorative applications due to their long-term durability, superior surface finish, and ease of fabrication.
