Daksh Sheets and Plates is a manufacturer and supplier of good repute, producing Stainless Steel 316H sheets and plates, for industries in Delhi and across India. Our SS 316H products are designed for high-temperature and high-pressure environments, with improved mechanical strength and corrosion resistance. The increased carbon content yields better tensile and creep strength, ideal for elevated temperature services. At Daksh, we check that all offered products comply with international quality and performance standards, which makes SS 316H a preferred material in the oil & gas, petrochemical, and other power generation industries.
Stainless Steel 316H is comprised of approximately 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and higher carbon (0.04–0.10%) than 316 to provide higher strength at temperature. SS 316H has a tensile strength of 515 MPa and yield strength of 205 MPa. SS 316H has good pitting and crevice corrosion resistance in chloride environments. The additional carbon allows reasonable creep resistance under higher temperatures and is suitable for high-pressure, high-heat applications. It offers reasonable ductility and weldability, which is important in the fabrication of products for critical environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

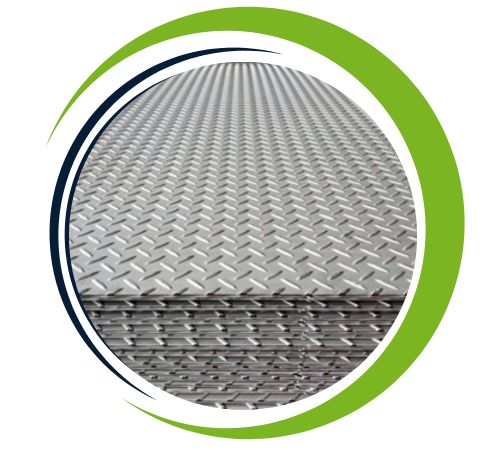

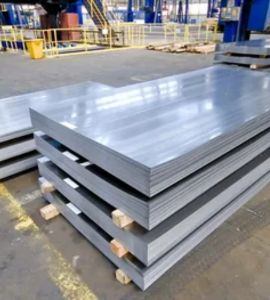

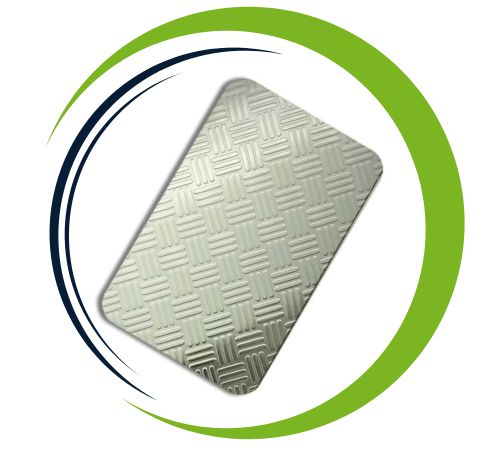

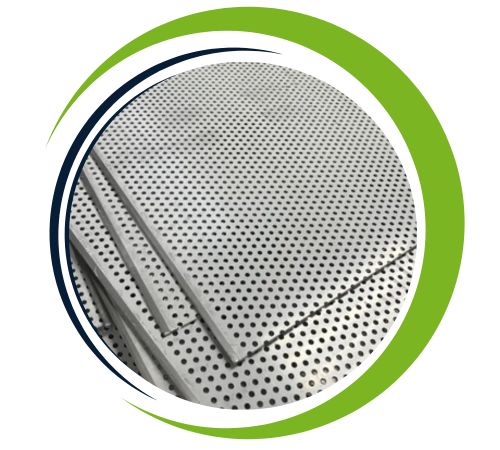

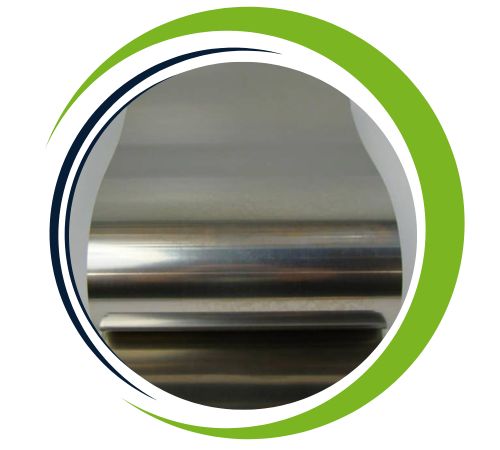

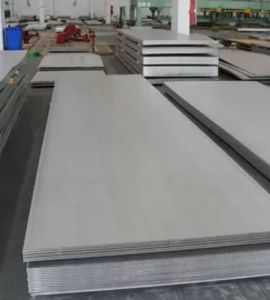

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2 – 3 | 10 – 14 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 316H | 1.4401 | S31609 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316H sheets and plates are widely used in high-temperature industrial applications such as heat exchangers, boiler components, condensers, and pressure vessels. The alloy’s creep strength makes it suitable for power plants and refineries, where components consistently undergo heat/pressure environments. Furthermore, SS 316H is used in marine engineering, chemical processing, and offshore structures. The material’s high-temperature creep resistance and mechanical properties also make it useful for welded assemblies. The corrosion resistance of stainless steel 316H and its ability to maintain structural integrity ensures long service life in aggressive and demanding environments.
