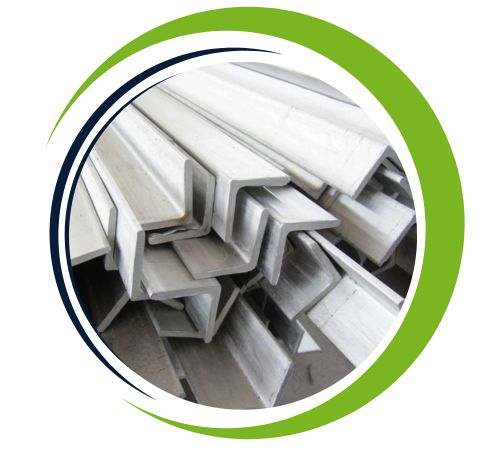

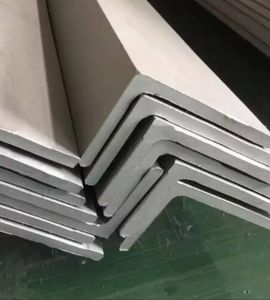

Based in Delhi, India, Daksh Sheets and Plates is a top producer and supplier of 316L stainless steel angles. We provide premium stainless steel products designed for exceptional structural performance, durability, and resistance to corrosion. Using high-quality raw materials and sophisticated fabrication processes, our SS 316L angles are made with exceptional strength, a smooth finish, and accurate measurements. These angles are especially well-suited for use in corrosive and harsh environments, such as those found in the chemical, pharmaceutical, and marine industries. With a dedication to quality, personalisation, and client satisfaction, Daksh provides clients in India and abroad with dependable service and prompt deliveries.
Stainless steel 316L is an austenitic alloy with a low carbon content (maximum 0.03%), composed of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. While the low carbon reduces carbide precipitation during welding, the molybdenum improves corrosion resistance, particularly against chlorides and acidic environments. SS 316L angles have outstanding ductility, weldability, and toughness in addition to a tensile strength of 485–620 MPa. This alloy is appropriate for crucial structural applications because it functions well at both high and low temperatures. It provides outstanding formability and long-term performance while preserving mechanical integrity in harsh conditions.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Industries that demand superior corrosion resistance and structural strength make extensive use of stainless steel 316L angles. Common uses include food-grade systems, chemical processing facilities, pharmaceutical manufacturing, and marine equipment. These angles are perfect for bracing, supports, frameworks, and architectural components that are subjected to corrosive conditions, like wastewater systems and coastal buildings. They are also favoured in welded structures where corrosion resistance at welded joints is crucial because of their low carbon content. Because they are hygienic, durable, and perform dependably in harsh conditions, SS 316L angles are also utilised in storage tanks, medical equipment, and construction.
