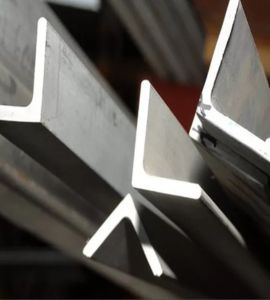

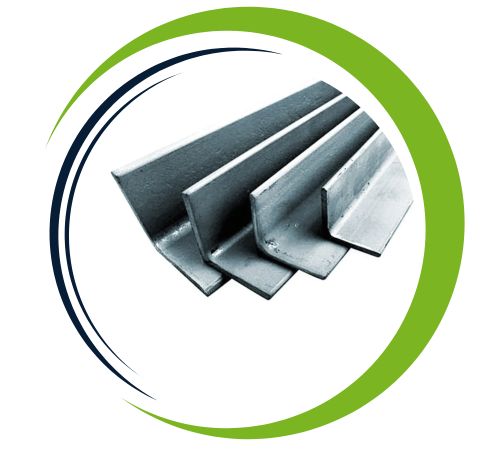

Based in Delhi, India, Daksh Sheets and Plates is a reputable producer and supplier of stainless steel 316Ti angles. Our high-performance stainless steel products combine improved stability at high temperatures with outstanding resistance to corrosion. Superior materials and cutting-edge production processes are used to create our SS 316Ti angles, guaranteeing their constant strength, longevity, and dimensional accuracy. These angles are perfect for critical structural and industrial applications because they are specifically made for applications that demand superior intergranular corrosion resistance. Daksh provides tailored solutions, fast delivery, and an unwavering focus on quality and customer satisfaction to a wide range of industries in India and abroad.
With 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and additional titanium (usually five times the carbon content), stainless steel 316Ti is a titanium-stabilized variant of SS 316. Titanium offers superior resistance to intergranular corrosion by preventing carbide precipitation during welding. At high temperatures, SS 316Ti angles retain their good ductility and toughness while offering a tensile strength of 500–700 MPa. In environments with a lot of chloride, this alloy also shows outstanding resistance to pitting and crevice corrosion. It is appropriate for applications requiring a lot of pressure and heat because of its strength, resistance to corrosion, and stability at high temperatures.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Industries that demand high-temperature strength and robust corrosion resistance frequently use stainless steel 316Ti angles. Heat exchangers, chemical processing apparatus, pressure vessels, flue gas systems, and marine structural elements are examples of common applications. They are perfect for welded structures and long-term use in challenging conditions because of their resistance to intergranular corrosion. In addition to industrial applications, SS 316Ti angles are used in food processing facilities, pharmaceutical companies, and architectural settings where durability and cleanliness are essential. These angles are appropriate for demanding engineering and construction projects because of the titanium stabilisation, which guarantees long-lasting performance in harsh environments.
