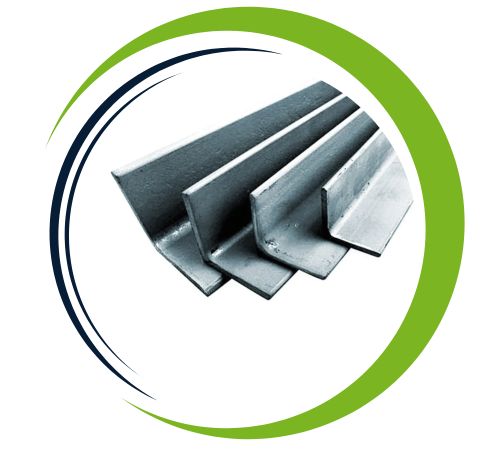

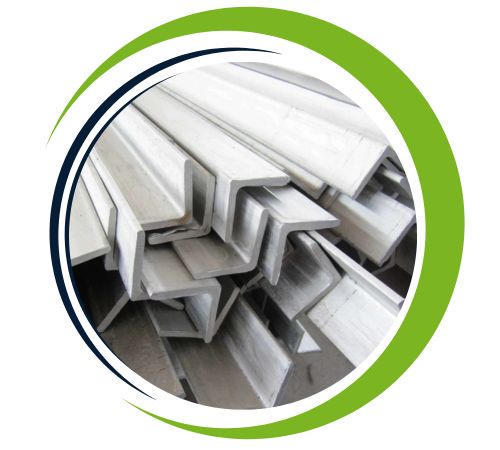

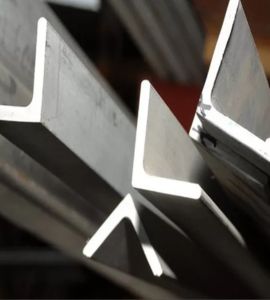

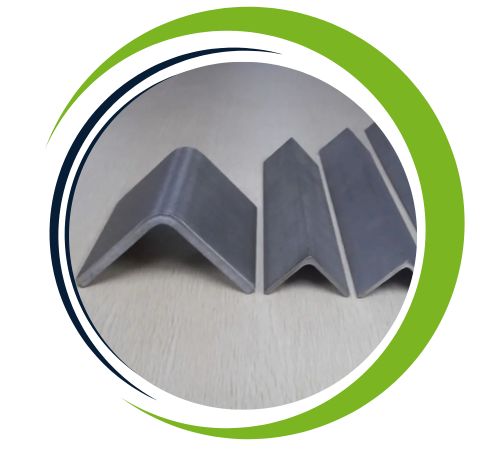

High-performance stainless steel products designed for industrial dependability are provided by Daksh Sheets and Plates, a reputable manufacturer and supplier of Stainless Steel 317 Angles in Delhi, India. SS 317 angles from Daksh, which is renowned for its quality, accuracy, and customer satisfaction, provide exceptional mechanical strength and corrosion resistance, particularly in environments with harsh chemicals. Our 317 angles are manufactured in accordance with national and international standards using cutting-edge technology and stringent quality controls. Daksh is a popular option in sectors like chemical processing, pulp and paper, power generation, and marine because of its strong emphasis on customer needs and on-time delivery.
An austenitic alloy comprising 18–20% chromium, 11–15% nickel, and 3–4% molybdenum gives stainless steel 317 Angles superior resistance to pitting, crevice corrosion, and acidic conditions. In order to reduce carbide precipitation during welding, the carbon content is kept low. It has a yield strength of 205 MPa, a tensile strength of about 515 MPa, and an elongation of about 35%. The alloy is appropriate for demanding industrial settings needing corrosion protection and structural durability because of its exceptional mechanical strength, high-temperature stability, and superior resistance to chemical attack.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 317 Angle | : | 5mm to 9mm |
| SS 317 Channel | : | 40mm*20mm~300mm*300mm |
| SS 317 Beam | : | 3″ thru 12.31″ |
| SS 317 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Because of their exceptional resistance to chemical and acidic solutions, stainless steel 317 angles are perfect for use in extremely corrosive environments. They are frequently utilised in the pulp and paper sector, chemical processing facilities, food processing machinery, and marine environments where corrosion caused by chloride is an issue. SS 317 angles are used in structural engineering for support systems, reinforcements, and frameworks that need to be strong and resistant to corrosion. Condensers, heat exchangers, textile machinery, and pollution control devices also use them. They are a dependable option for long-term industrial performance due to their excellent fabrication and weldability.
