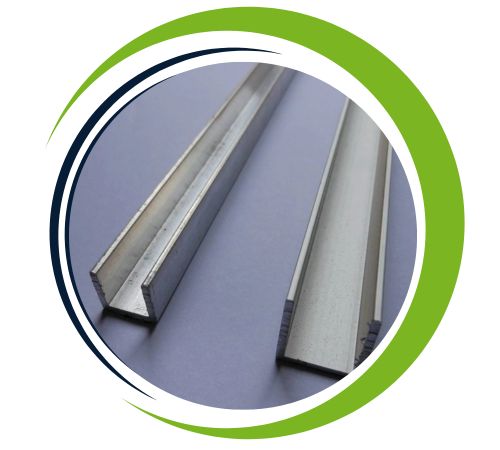

Based in Delhi, India, Daksh Sheets and Plates is a well-known supplier and manufacturer of stainless steel with a focus on premium Stainless Steel 317 Channels. Austenitic stainless steel containing molybdenum is used to create these channels, which provide improved corrosion resistance, especially in acidic environments. Daksh guarantees that every Stainless Steel 317 Channel satisfies exacting quality standards by adhering to international standards and being meticulous. They are a well-known brand in the metal industry thanks to their commitment to timely delivery and customer satisfaction.
The austenitic alloy known as stainless steel 317 Channel is made up of trace amounts of manganese, silicon, and iron as well as roughly 18–20% chromium, 11–15% nickel, 3–4% molybdenum, and low carbon (≤0.08%). Superior corrosion resistance is offered by this composition, particularly in environments that are sulphurous, acidic, and chloride-rich. Mechanically, SS 317 offers a tensile strength of around 515–760 MPa, yield strength of about 205–275 MPa, and elongation of approximately 35–40%. It is appropriate for structural applications in the chemical processing, marine, and pollution control industries due to its improved strength, formability, and resistance to chemical attack.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Stainless Steel 317 Channel to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Industries that require exceptional mechanical strength and corrosion resistance, particularly in harsh chemical environments, frequently use stainless steel 317 channels. Common uses include framing and structural supports in pulp and paper mills, chemical processing facilities, and marine environments with high levels of chloride exposure. Because of their resistance to corrosive and acidic substances, they are also utilised in heat exchangers, food and pharmaceutical processing systems, and pollution control equipment. For heavy-duty industrial and structural applications, SS 317 channels are the preferred choice due to their strength, weldability, and resistance to pitting and crevice corrosion.
