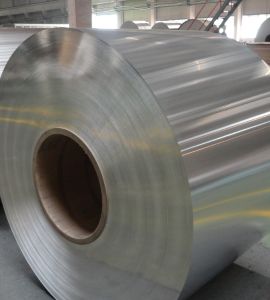

Delhi, India-based Daksh Sheets and Plates is a well-known producer and supplier of high-performance stainless steel 317 foils, providing top-notch products for a range of industrial uses. We are renowned for our dedication to accuracy and quality, and we offer SS 317 foils that are highly resistant to corrosion, particularly in environments that are acidic and chloride-rich. Our foils are made with sophisticated processing methods and are intended to be strong, flexible, and long-lasting. Our stainless steel foils are dependable and long-lasting, meeting both industry-specific and international standards, whether they are utilised in chemical processing, maritime settings, or pharmaceutical applications.
The main constituents of stainless steel 317 foils are low carbon, 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. Corrosion resistance is improved by this composition, especially against tartaric, acetic, and sulphuric acids. Mechanically, SS 317 provides outstanding elongation and toughness along with a tensile strength of about 515 MPa and a yield strength of about 205 MPa. In corrosive and high-temperature conditions, these foils retain their structural integrity. They are appropriate for demanding industrial applications due to their exceptional formability, pitting, and crevice corrosion resistance.
| SPECIFICATION: | ASTM A240 / SA240 |
| STANDARD | JIS, AISI, ASTM, DIN, GB, EN, ETC |
| SURFACE | 2B, CR, HR, 2D, NO.4, NO.8, MIRROR, BA, NO.1, CHEQUERED, HAIRLINE, BRUSH, ETCHING, ETC. |
| WIDTH | 1000MM, 1219MM, 1250 MM, 1500MM, 2000MM AND Even as per Customers Requirements |
| LENGTH | 2000MM, 2500MM, 3000 MM, 5000MM, 6000MM AND Even as per Customers Requirements |
| THICKNESS | 0.05MM TO 150 MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 317 | 0.08 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 14 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| GRADE 317 | ||||
|---|---|---|---|---|
| ASTM | DIN | UNS | JIS | GB |
| 317 | 1.4445 | S31700 | SUS317 | X6CrNiMo19-13-4 |
Stainless steel 317 foils are frequently used in scrubbers, heat exchangers, evaporators, and chemical processing equipment because they are perfect for use in extremely corrosive environments. They are appropriate for coastal construction and marine applications due to their high molybdenum content, which offers exceptional resistance to chlorides and acidic media. SS 317 foils are used for lining and wrapping in the food processing and pharmaceutical industries because of their non-reactive and hygienic qualities. These foils are also used in precision instruments, gaskets, and electronics where strength, flexibility, and resistance to corrosion are crucial. They are adaptable to a range of industrial requirements due to their thin, pliable shape.
