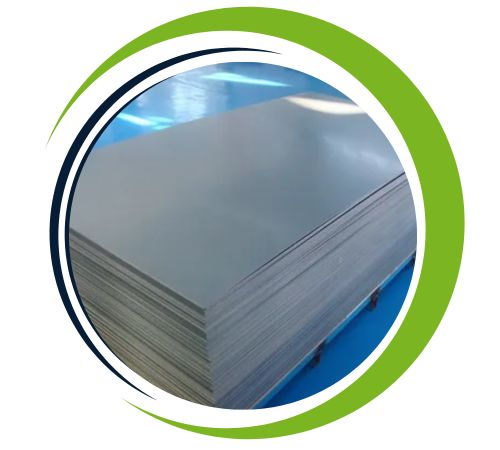

Located in Delhi, India, Daksh Sheets and Plates is a top producer and supplier of Stainless Steel 317 Sheets and Plates, renowned for offering premium stainless steel solutions for high-performance and corrosion-sensitive applications. Stainless Steel 317 is an austenitic alloy that contains molybdenum and has improved corrosion resistance, particularly in environments that are acidic and chloride-rich. Daksh provides expertly designed 317 sheets and plates with superior surface finish, strength, and durability. Daksh guarantees consistent quality, customised dimensions, and timely delivery to meet the most exacting industrial and commercial requirements. It serves industries like food production, pulp and paper, marine, and chemical processing.
With a composition of 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, stainless steel 317 sheets and plates provide exceptional resistance to pitting and chemical attack. Their strength and resistance to corrosion are improved by this composition, particularly in environments that are exposed to acidic or chloride-containing substances. The material’s yield strength is approximately 205 MPa, and its tensile strength ranges from 515 to 750 MPa. Additionally, 317 stainless steel has outstanding formability, weldability, and creep resistance. It is perfect for applications involving strong acids or high-temperature service because of its low carbon content, which reduces carbide precipitation during welding.
| 317 Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 317 Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 317 Sheets & Plates Size Range | Cold rolled ASME SA240 Grade 317 Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317 Stainless Steel Sheet 3.0–10.0 mm |
| 317 SS Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 317 Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 317 Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 317 Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 317 Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 317 SS Strips EN 10088 SA -240-304 / 317 Strips |
| Finish of SS 317 Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
In extremely corrosive environments where exceptional chemical resistance is crucial, stainless steel 317 sheets and plates are frequently utilised. They are perfect for use in the petrochemical and chemical industries, particularly when working with citric, acetic, and sulphuric acids. Storage tanks, heat exchangers, evaporators, flue gas scrubbers, and marine parts are among the common applications. 317 is prized for its hygienic qualities and resistance to contamination in the food and pharmaceutical industries. Because of its resistance to bleaching agents, it is also utilised in the pulp and paper industry. The alloy is a material of choice for critical equipment in harsh environments due to its strength and durability.
