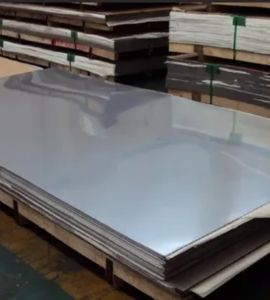

Based in Hyderabad, India, Daksh Sheets and Plates is a reputable producer and supplier of high-end stainless steel goods, providing customized solutions for the commercial and industrial sectors. Stainless Steel 317L Sheet and Plate, a low-carbon, high-alloy material renowned for its exceptional corrosion resistance, particularly in harsh and chloride-rich environments, is one of our high-performance products. We make sure that our stainless steel products fulfill international standards for dependability and durability by putting an emphasis on quality, accuracy, and customer satisfaction. Daksh Sheets and Plates is a trustworthy supplier of stainless steel products made for tough uses.
About 18% chromium, 13% nickel, and 3-4% molybdenum make up stainless steel 317L sheets and plates. The low carbon content (≤0.03%) enhances weldability and inhibits carbide precipitation during welding. Particularly in environments that are acidic and chloride-rich, this austenitic grade provides improved resistance to pitting and crevice corrosion. Its mechanical characteristics include an approximate elongation of 35%, a yield strength of 170 MPa, and a tensile strength of 485 MPa. Because of its exceptional ductility, hardness, and formability, SS 317L is appropriate for industrial applications involving high temperatures and corrosion.
| 317L Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 317L Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 317L Sheets & Plates Size Range | Cold rolled ASME SA240 Grade 317L Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317L Stainless Steel Sheet 3.0–10.0 mm |
| 317L SS Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 317L Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 317L Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 317L Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 317L Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 317L SS Strips EN 10088 SA -240-304 / 317L Strips |
| Finish of SS 317L Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 317L sheets and plates offer many advantages, including exceptional corrosion resistance, especially in high chloride environments Their low carbon content increases weldability, prevents carbide precipitation and provides good welding strength after the. They exhibit excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making them ideal for chemically complex marine environments 317L also maintains excellent tensile strength, rigidity and formability at temperature in a higher order. These properties make them ideal for use in industries such as the chemical industry, pharmaceutical manufacturing, marine and food processing, where durability and reliability are essential.
Industries that demand exceptional corrosion resistance and structural integrity frequently use stainless steel 317L sheets and plates. Particularly in chloride or acidic environments, they are perfect for the food processing, petrochemical, and chemical processing industries. Heat exchangers, evaporators, reactors, pressure vessels, and piping systems are examples of common applications. 317L is prized for its longevity and resistance to pitting and crevice corrosion in the marine and pharmaceutical industries. The alloy is a flexible option for challenging operational requirements and harsh environmental conditions because it can also be used in power plants, pollution control devices, and desalination systems.
