In Delhi, India, Daksh Sheets and Plates is a reputable company that produces and distributes high-grade stainless steel 321 sheets and plates. With years of experience in the field, we are experts at offering high-performance, corrosion-resistant stainless steel products that are suited to a variety of industrial requirements. Our SS 321 Plates and Sheets are renowned for their exceptional thermal stability, superior strength, and superior fabrication qualities. We provide services to many different industries, such as power generation, chemical processing, and aerospace. Daksh guarantees prompt delivery and affordable prices for all of our stainless steel products because we are dedicated to quality and client satisfaction.
The main constituents of Stainless Steel 321 Sheets and Plates, which are austenitic stainless steels stabilised by titanium, are chromium (17–19%), nickel (9–12%), and titanium (≥5xC% min). After being exposed to high temperatures, this alloy exhibits exceptional resistance to intergranular corrosion. It has good elongation and toughness, with a yield strength of about 205 MPa and a tensile strength of about 515 MPa. It is perfect for welding and high-temperature settings because titanium increases its resistance to carbide precipitation. SS 321 is appropriate for exhaust systems and pressure vessels due to its stable mechanical characteristics.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

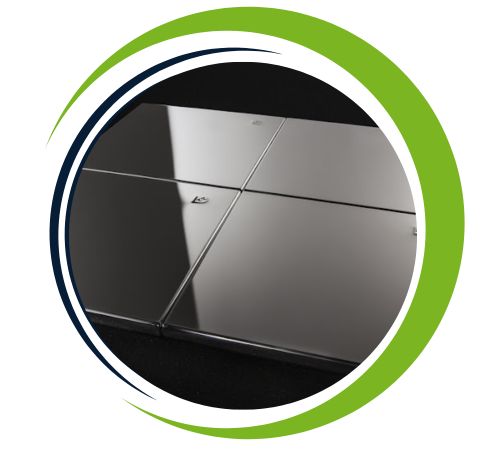

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

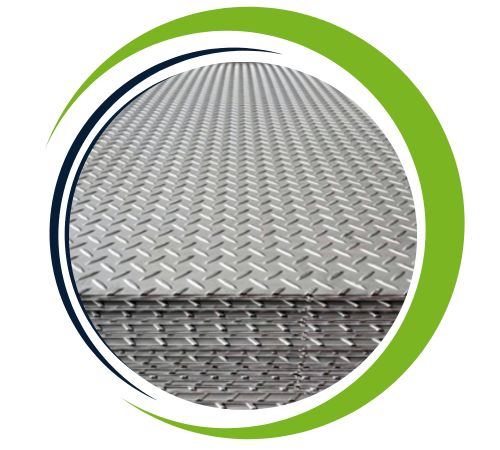

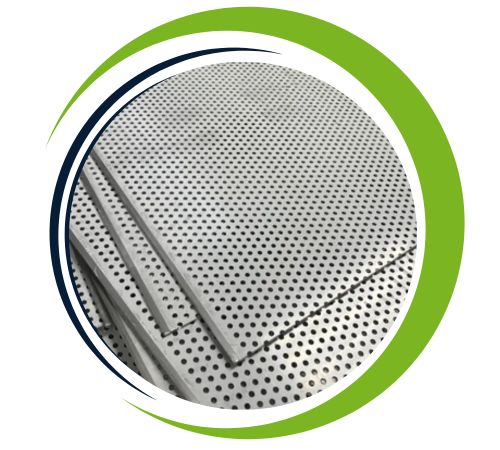

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
High-temperature and corrosion-resistant settings are common uses for stainless steel 321 sheets and plates. Because of their superior oxidation resistance, they are perfect for use in aerospace applications like jet engine components and aircraft exhaust manifolds. SS 321 is utilised in furnace parts, expansion joints, and heat exchangers in the chemical and food processing industries. It is also used in the petrochemical and pharmaceutical industries, where corrosion resistance and stability are essential. The alloy is a popular option for industrial ovens, piping systems, and architectural panels due to its formability and weldability.
