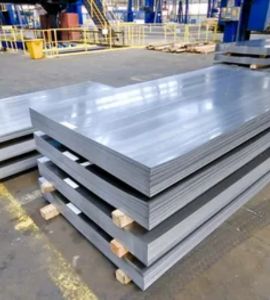

Based in Delhi, India, Daksh Sheets and Plates is a reputable producer and supplier of stainless steel 321H sheets and plates. We deliver products that satisfy industry demands and international standards with a strong emphasis on quality. Because of its exceptional mechanical strength and creep resistance, SS 321H, a high-carbon variant of 321, is perfect for high-temperature applications. We at Daksh provide precisely engineered SS 321H Sheets and Plates with superior dimensional accuracy and surface finish. We are a preferred option in sectors like petrochemical, refineries, and heat treatment facilities because of our dedication to innovation and dependability.
Chromium (17–19%), nickel (9–12%), and a higher carbon content (up to 0.10%) make up stainless steel 321H sheets and plates, a high-carbon variant of SS 321. Its creep resistance and high-temperature strength are enhanced by the increased carbon content. In addition to having good formability and ductility, SS 321H normally has a tensile strength of 515 MPa and a yield strength of 205 MPa. Because of its improved mechanical qualities, it can function well in temperatures higher than 538°C. This makes it ideal for high-temperature industrial processes that need to be operated under stress for extended periods of time.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

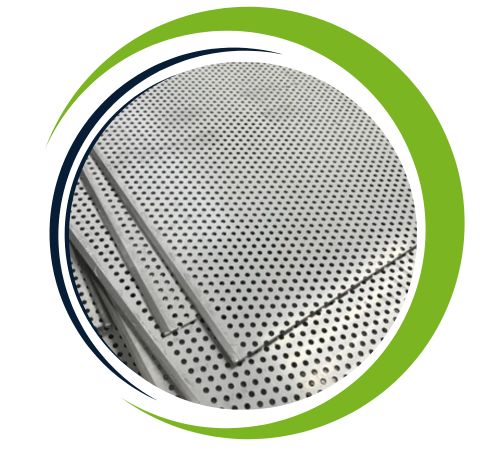

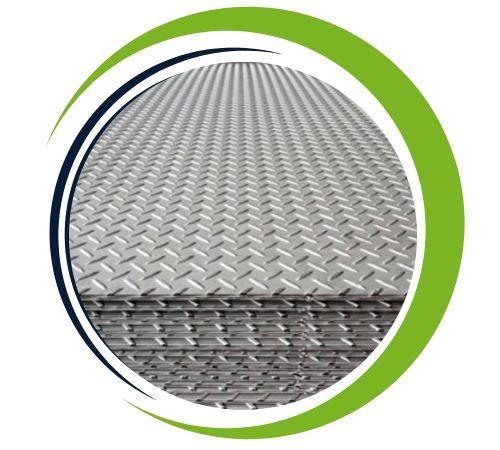

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The main applications for stainless steel 321H sheets and plates are high-temperature, high-pressure settings where improved creep strength is crucial. Applications in the oil and gas and petrochemical sectors include pressure vessels, boiler and furnace parts, and heat exchangers. High-efficiency combustion systems and refinery equipment frequently use SS 321H because of its exceptional resistance to oxidation and thermal fatigue. It is also utilised for reheaters and superheaters in the power generation industry. Because of its resilience at high temperatures, the alloy can be used continuously in chemical plants and other high-stress industrial processes.
