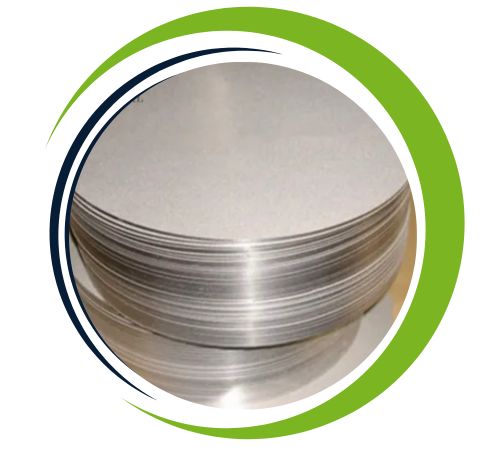

Located in Delhi, India, Daksh Sheets and Plates is a reputable producer and supplier of high-performance stainless steel 422 circles that are designed to satisfy the exacting requirements of high-temperature and high-strength applications. For superior heat resistance, wear strength, and durability, our SS 422 circles are made with premium raw materials and cutting-edge manufacturing techniques. Industries like heavy engineering, power generation, and aerospace are perfect for these circles. Daksh Sheets and Plates provides stainless steel solutions that meet international standards and provide reliable performance in demanding environments with an emphasis on quality, accuracy, and client satisfaction.
The high-strength, hardenable martensitic stainless steel alloy known as Stainless Steel 422 Circle is made up of 1% molybdenum, 12% chromium, and trace amounts of tungsten and vanadium for strength and thermal stability. High tensile strength and hardness, up to 1034 MPa, can be obtained by heat treatment. It provides good oxidation resistance up to 1200°F (650°C), and its yield strength usually exceeds 690 MPa. Components subjected to extended high-stress, high-temperature conditions benefit greatly from SS 422’s exceptional creep and stress rupture resistance.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Applications requiring high mechanical strength, thermal stability, and resistance to wear and oxidation employ stainless steel 422 circles. Because of their exceptional creep and fatigue resistance, they are frequently used in steam turbine blades, jet engine parts, high-performance valves, turbine components, and aerospace fasteners. The power generation industry also makes use of these circles, especially in hot conditions where materials need to retain their integrity under pressure. They are appropriate for precision parts that need to last, like shafts, bushings, and gears, because of their machinability and hardenability, which guarantees sustained performance under harsh operating conditions.
