Based in Delhi, India, Daksh Sheets and Plates is a trustworthy producer and supplier of 446 stainless steel sheets and plates. Daksh provides premium 446-grade materials appropriate for thermal and industrial processing environments, with a focus on high-temperature and oxidation-resistant stainless steel products. Our sheets and plates, which prioritise accuracy, robustness, and prompt delivery, are extensively utilised in industrial furnaces, kilns, and heat treatment apparatus. We offer specialised sizes and finishes to meet the demands of different applications. Daksh guarantees the best stainless steel solutions for difficult situations thanks to its extensive technical knowledge and cutting-edge manufacturing techniques.
Iron, 23–27% chromium, and trace amounts of silicon and molybdenum make up the majority of stainless steel 446, a ferritic alloy. It is especially made to withstand high temperatures up to 1100°C with exceptional resistance to oxidation, sulfidation, and scaling. Mechanical characteristics include good creep resistance and a tensile strength of about 485 MPa. 446 is very stable in thermal cycling conditions, despite having a moderate level of toughness. Usually hot-rolled and annealed, the sheets and plates offer good corrosion resistance and dimensional stability in oxidising environments, particularly in industrial heat applications.
| 446 Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 446 Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |

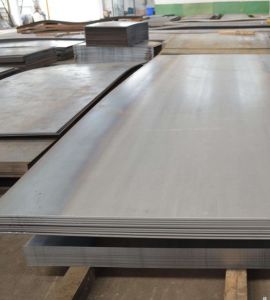

| SS 446 Sheets & Plates Size Range | Cold rolled ASME SA240 Grade 446 Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 446 Stainless Steel Sheet 3.0–10.0 mm |
| 446 SS Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 446 Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 446 Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 446 Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 446 Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 446 SS Strips EN 10088 SA -240-446 Strips |
| Finish of SS 446 Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

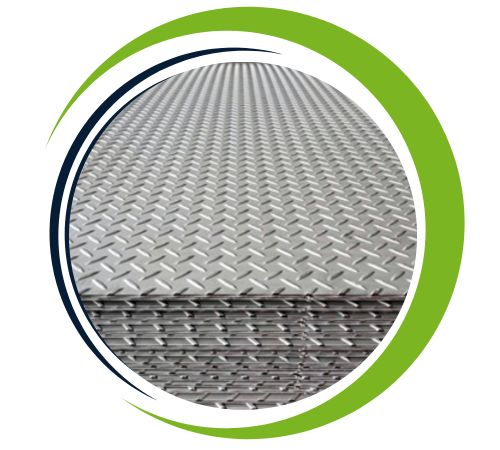

| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Stainless Steel 446 Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| SS 446 | 0.2 max | 1.5 max | 0.75 max | 0.04 max | 0.030 max | 23 – 30 | – | 0.50 max | 0.10 – 0.25 | Balance |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.5 g/cm3 | 1510 °C (2750 °F) | Psi – 75,000 , MPa – 485 | Psi – 40,000 , MPa – 275 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS | BS | EN | JIS |
| SS 446 | 1.4762 | S44600 | 446S21 | X12Cr13 | SUS 446 |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
High-temperature industrial settings make extensive use of stainless steel 446 sheets and plates. They are perfect for kiln linings, heat shields, burner nozzles, and furnace parts. They are used in muffles, heat exchangers, and radiant tubes in the petrochemical and thermal processing industries. They are appropriate for exhaust systems and incinerators due to their resistance to oxidation and thermal fatigue. Additionally, refinery equipment, recuperators, and coal gasification units use stainless steel 446. It is a cost-effective option for ongoing high-temperature operations in challenging conditions because of its resilience to extreme heat, which guarantees a longer service life and less maintenance.
